| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 3 PCI-E 3.0 x83 PCI-E 3.0 x16 |
| Cores | Up to 32 CoresUp to 64 Cores (Board revision 2.x required) |
| Network Controllers | 2 1GbE LAN via Intel I2101 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: PCI-E 3.0 x4Form factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 128Mb SPI Flash EEPROM |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port |
| USB | 5 USB 3.0 ports4 USB 2.0 ports (2 rear + 2 via header) |
| Form Factor | ATX |
| Memory Type | 288-pin gold-plated DIMMs (Board revision 2.x required), 288-pin gold-plated DIMMsDDR4 3200 MHz Registered ECC, DDR4 2666 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port (rear)2 SATA DOM power connector1 TPM 2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7001/7002Socket SP3 |
| SAS | 8 SAS3 (12 Gbps) ports |
| SATA | 8 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 12" x 9.6" (30.5cm x 24.4cm) |

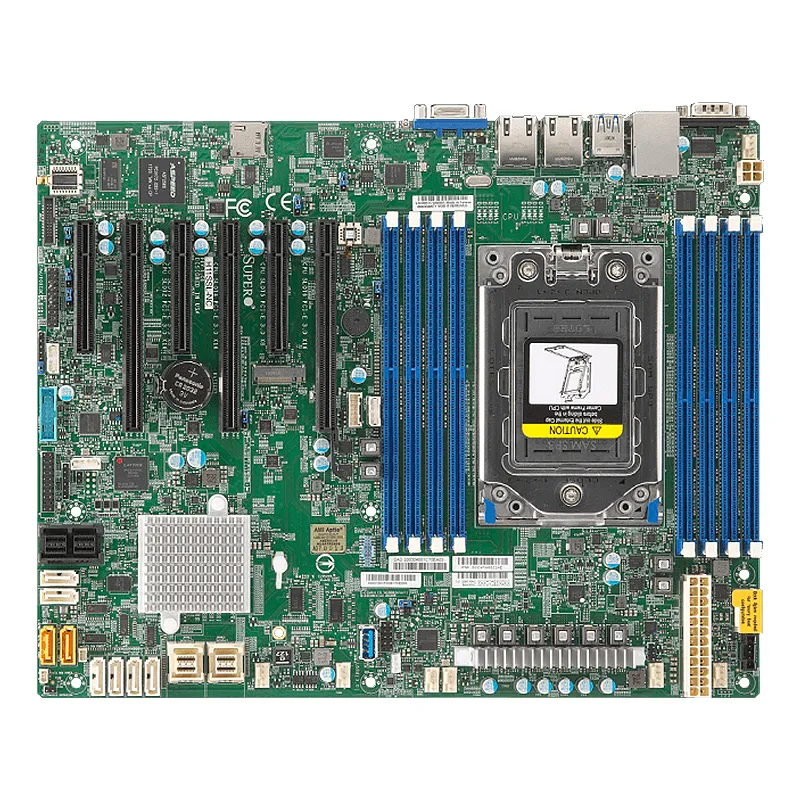

* NOTE: Image may not exactly match the product
Supermicro MBD-H11SSL-C-B
$Quote1 Piece(MOQ)
100% New and Genuine
