Product SKUs

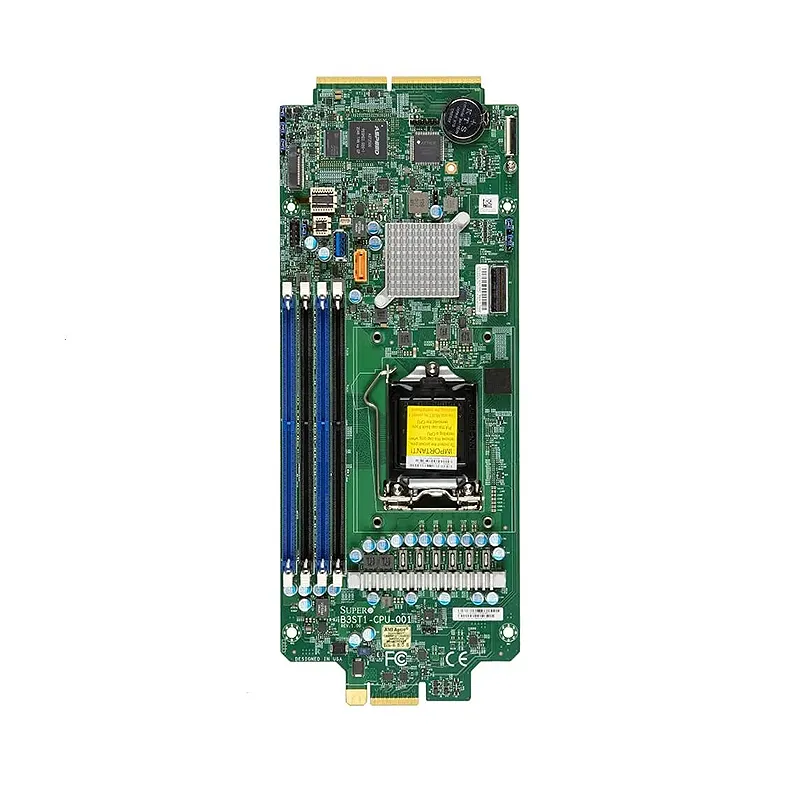

- MBD-B3ST1-CPU-001
Physical Stats
- Form Factor
Proprietary
- Dimension
4.8″ x 12.6″ (12.2cm x 32cm)
Processor
- CPU
Intel Xeon E-2300 Rocket Lake Processor
Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 95W TDP - Core
Up to 8 cores
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB ECC , DDR4-3200MT/s
Up to 128GB of ECC and Non-ECC VLP UDIMM DDR4, in 4 DIMM Slots - Memory Type
3200 MT/s VLP
- DIMM Sizes
- Memory Voltage
1.2V
- Error Detection
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C256
- IPMI
ASPEED AST2500
- Network Controllers
Dual LAN, Broadcom BCM57414 Dual-Port 10G Base-KR PCIe Gen 3 via AOM-BPNIO-MSH2
- SATA
Intel C256 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Input / Output
- SATA
2 SATA3 (6Gbps) port(s)
- USB
USB 3.2 Type A
2x USB2.0 KVM (Debug Purpose Only) - DOM
1 SATA DOM power connector (Disk on Module) port
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x8 for Add-On-Module (AOM)
2x U.2 SATA 3.0 PCIe x4 Gen 4 via AOM-BPNIO-MSH2 - M.2
Form Factor: 2280/22110
Key: M-Key
2x M.2 PCIe 2280/22110 (1x onboard and 1x via AOM-BPNIO-MSH2)
System BIOS
- BIOS Type
256MB SPI Flash with AMI BIOS
- BIOS Features
RTC (Real Time Clock) Wakeup
Management
- System Management Software
SuperDoctor 5, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SUM
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
