Product SKUs

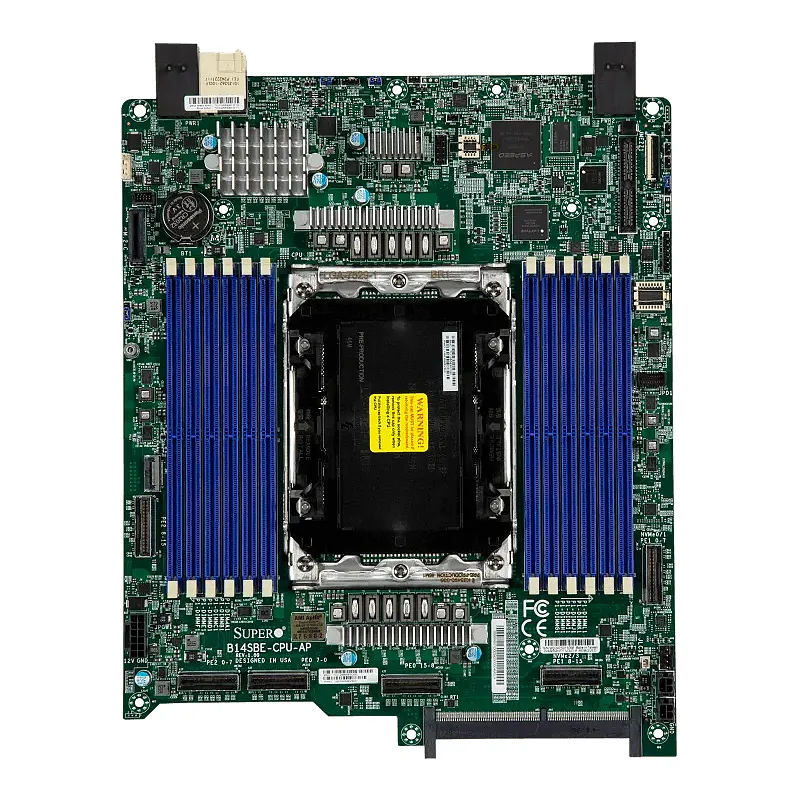

- MBD-B14SBE-CPU-AP
Physical Stats
- Form Factor
Proprietary
- Dimension
12.1″ x 9.36″ (30.74cm x 23.77cm)
Processor
- CPU
Intel Xeon 6900-series processors with P-cores
Single Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP - Core
Up to 128 (P) cores
System Memory
- Memory Capacity
12 DIMM slots
Up to 3TB ECC Registered MRDIMM, DDR5-8800MT/s; Up to 3TB 3DS ECC Registered RDIMM, DDR5-6400MT/s - Memory Type
6400 MT/s ECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
- DIMM Sizes
32GB, 48GB, 64GB, 96GB, 128GB, 256GB
MRDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
RDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Dual LAN with Intel Ethernet Controller E810-XXVAM2, Two (2) 25GbE Ethernet ports from KR interface to BP
Input / Output
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x16 Mezzanine card connector, For 6U 25G Dual port Mezzanine Card,
1 PCIe 4.0 x16 SIOM Slot, For AOM-BPNIO-SCE2 to support (2) Hot-plug U.2 NVMe/SAS/SATA; HW RAID with 3108,
6 PCIe 5.0 x8 MCIO connector, For GPU Riser/NVMe/AIOM add on module - M.2
M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1
Form Factor: 2280
Key: M-Key
M.2 support requires an optional M.2 adapter card
System BIOS
- BIOS Type
AMI 64MB AMI UEFI
- BIOS Features
ACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
