Product SKUs

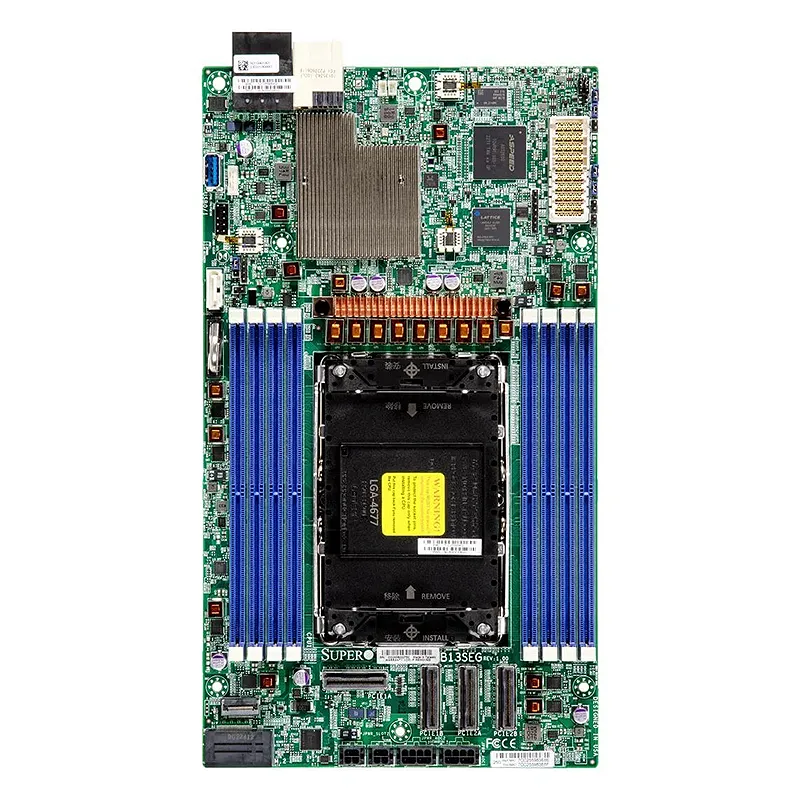

- MBD-B13SEG
Physical Stats
- Form Factor
Proprietary
- Dimension
6.3″ x 11.169″ (16cm x 28.37cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
*BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors - Core
Up to 60 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
- DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C741
- IPMI
ASPEED AST2600 BMC
- Graphics
1 Aspeed AST2600 BMC port(s)
- Network Controllers
Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
Input / Output
- USB
1 USB 3 port(s) (1 type A)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 5.0 x16 Mezzanine card connector,
4 PCIe 5.0 x8 MCIO connector, For GPU Riser/E1S/NVMe/AIOM add on module - M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
