Product SKUs

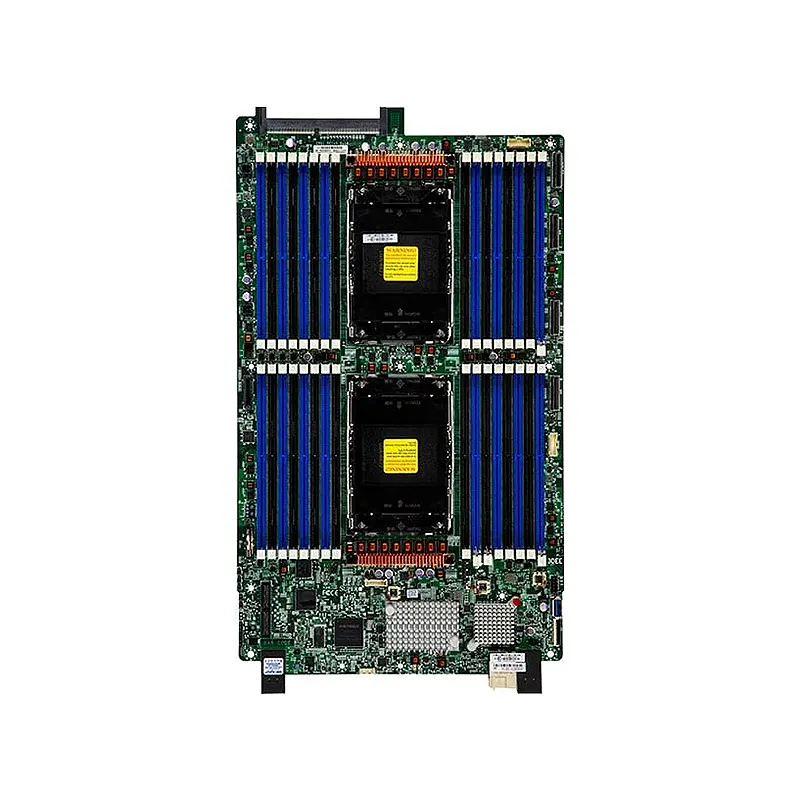

- MBD-B13DEE
Physical Stats
- Form Factor
Proprietary
- Dimension
10″ x 16.5″ (25.4cm x 41.91cm)
Processor
- CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
Dual Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported - Core
Up to 64 cores
System Memory
- Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s - Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
- DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB - Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C741
- SATA
Intel C741 controller for 3 SATA3 ports; RAID 0,1
- IPMI
ASPEED AST2600 BMC
- Graphics
Aspeed AST2600 BMC port(s)
- Network Controllers
Dual LAN with Intel Ethernet Controller E810-XXVAM2
Input / Output
- USB
1 USB 3 port(s) (1 type A)
- TPM
1 TPM Header
- Others
4 MCIO PCIe 5.0 x8
Expansion Slots
- PCIe
1 PCIe 5.0 x16 Mezzanine card connector,
1 PCIe 5.0 X16 SIOM slot, For AOM-BPNIO-SNE/AOM-BPNIO-SCE to support 3x SATA3/NVMe or 3x SAS3 HDDs/SSDs,
1 PCIe 5.0 E1.S connector, For M.2 adapter to support one PCIe 5.0 X4 M.2 device - M.2
M.2 Interface: 1 PCIe 5.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB AMI UEFI
- BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2
