Product SKUs

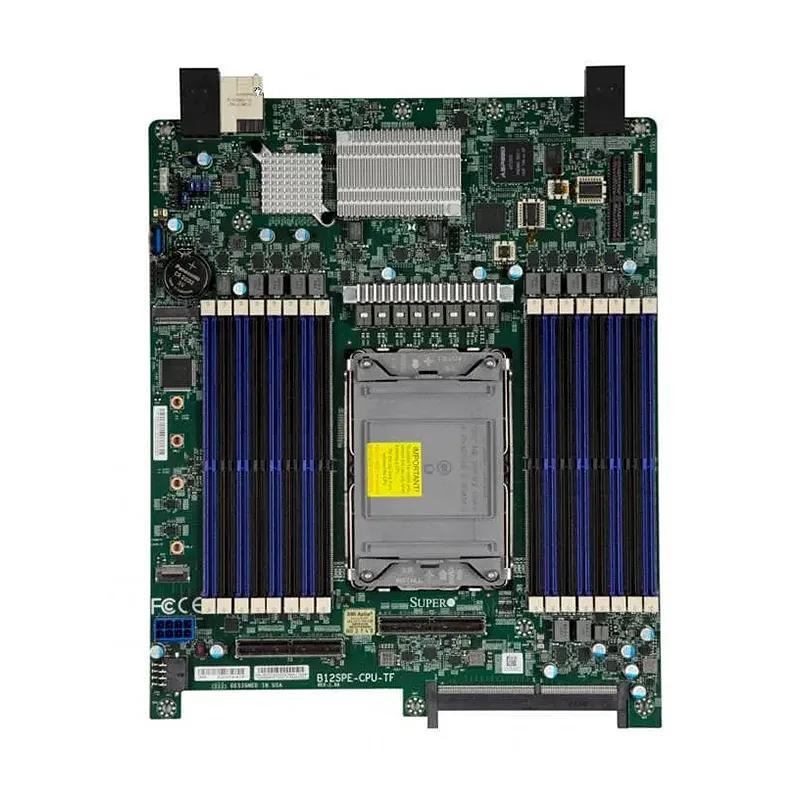

- MBD-B12SPE-CPU-25G
Physical Stats
- Form Factor
Proprietary
- Dimension
9.358″ x 11.408″ (23.77cm x 28.98cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
Expansion Slots
- PCIe
1 PCIe 4.0 x8 for Add-On-Module (AOM)
Onboard PCIe Gen3/4 x 32 connectors for GPU riser/ PCIe cable
One PCIe Gen3/4 x 8 Mezzanine card connector for network AOM - M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
One Hybrid (PCIe Gen3 x 4 /SATA3) M.2 connector from PCH
System BIOS
- BIOS Type
256MB SPI Flash with AMI BIOS
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
