Product SKUs

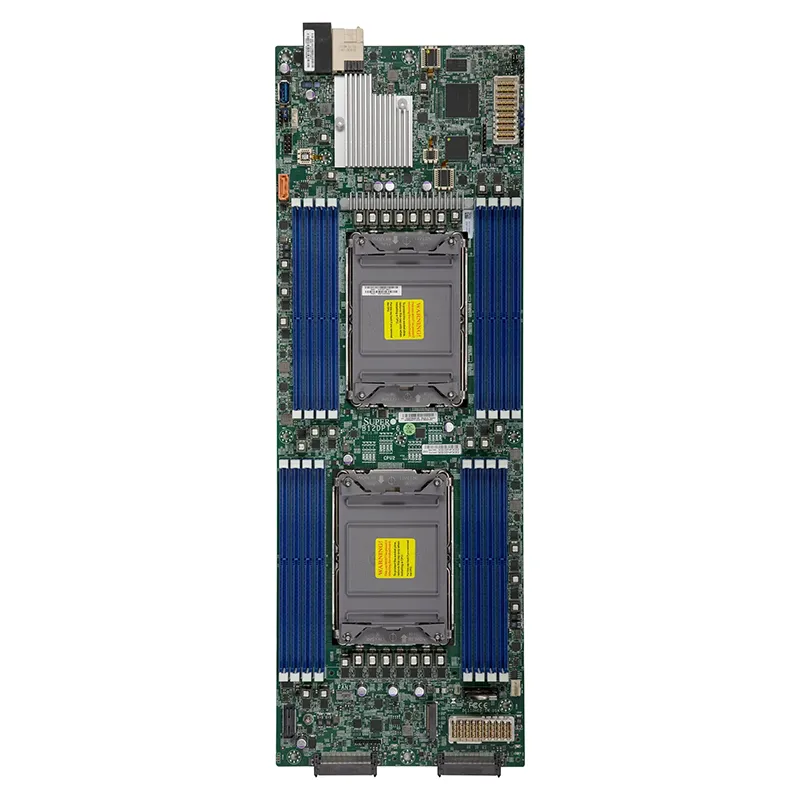

- MBD-B12DPT-6
Physical Stats
- Form Factor
Proprietary
- Dimension
6.3″ x 18.4″ (16cm x 46.74cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP - Core
Up to 40 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 RDIMM
- DIMM Sizes
8GB, 16GB, 32GB, 64GB
RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621A
- Network Controllers
Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN, Two (2) 10GbE Ethernet ports from KR interface to BP
Expansion Slots
- PCIe
1 PCIe 4.0 x16 slots (16/NA/16/NA or 8/8/8/8)
System BIOS
- BIOS Type
256MB SPI Flash EEPROM with AMI BIOS
- BIOS Features
ACPI 6.1
UEFI 2.7
SMBIOS 2.8
SMBIOS 3.1
PCI FW 3.2
Plug and Play (PnP)
