Product SKUs

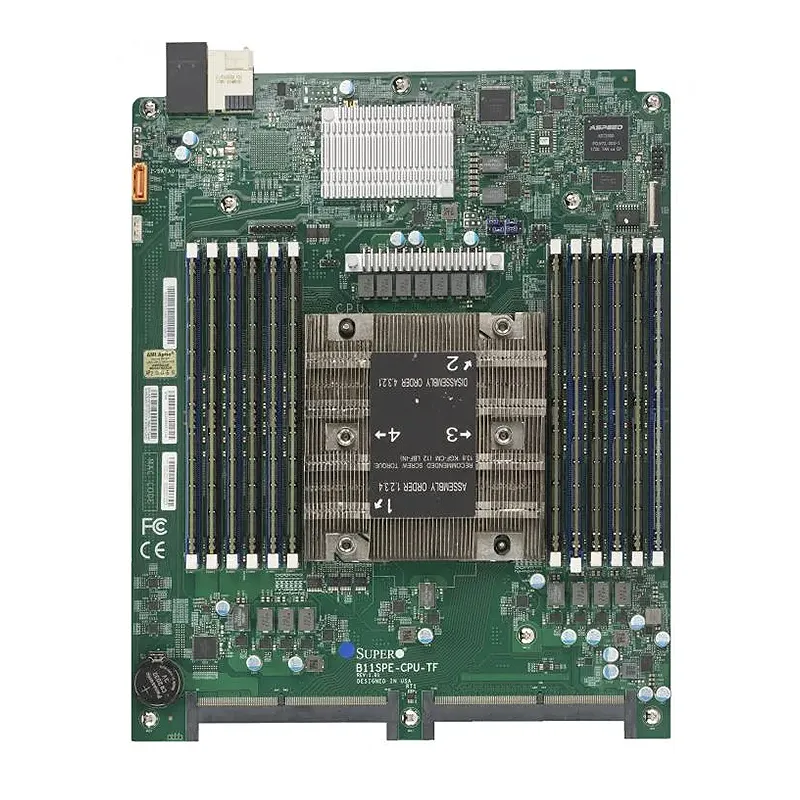

- MBD-B11SPE-CPU-TF
Physical Stats
- Form Factor
Proprietary
- Dimension
9.358″ x 11.606″ (23.77cm x 29.48cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Single Socket Socket P (LGA-3647) supported - Core
Up to 28 cores
System Memory
- Memory Capacity
12 DIMM slots
Up to 3TB ECC LRDIMM; Up to 3TB ECC RDIMM - Memory Type
3200/2933/2666 MT/s ECC LRDIMM, RDIMM
- DIMM Sizes
LRDIMM: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C622
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN, Two(2)10GbE Ethernet ports from KR interface to BP
Input / Output
- SATA
1 SATA3 (6Gbps) port(s)
- DOM
1 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
PCIe x16 Expansion for Various I/O Modules
System BIOS
- BIOS Type
128MB SPI Flash EEPROM with AMI BIOS
- BIOS Features
ACPI 6.1
UEFI 2.7
SMBIOS 2.8
Plug and Play (PnP)
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
