Product SKUs

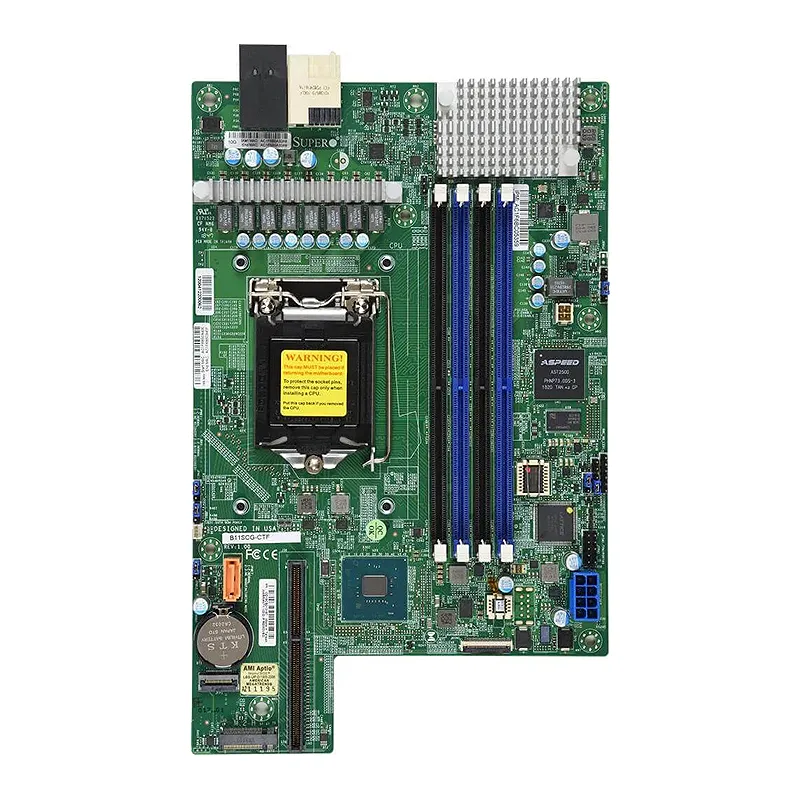

- MBD-B11SCG-CTF
Physical Stats
- Form Factor
Proprietary
- Dimension
4.8″ x 12.6″ (12.19cm x 32cm)
Processor
- CPU
Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s - Memory Type
2666/2400/2133 MT/s SDRAM 72-bit,
- DIMM Sizes
8GB, 16GB, 32GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C246
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN, Two(2)10GbE Ethernet ports from KR interface to BP
Input / Output
- SATA
2 SATA3 (6Gbps) port(s)
- DOM
1 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x16 slots (16/NA or 8/8)
- M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
128MB SPI Flash EEPROM with AMI BIOS
- BIOS Features
ACPI 6.1
UEFI 2.7
SMBIOS 2.8
Plug and Play (PnP)
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
