- Dual Socket E (LGA-4677) 5th/4th Gen Intel? Xeon? Scalable processors
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
-
- 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
- 2x 10 GbE onboard via Broadcom BCM57416
- 24x 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear 2.5″ SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1200W Redundant Power Supplies Titanium Level (96%)
- HBA Controller support via Broadcom? 3808

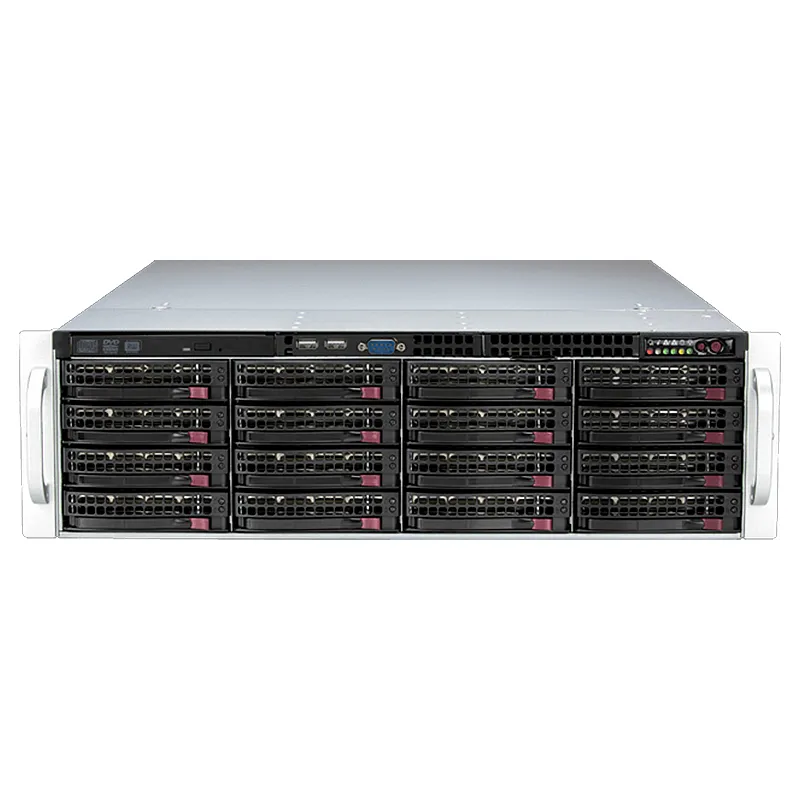

* NOTE: Image may not exactly match the product
Storage SuperServer SSG-641E-E1CR24L
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | 2x 10GbE BaseT with Broadcom BCM57416 |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
| Width | 17.2" |
| Weight | Net Weight: 55 lbs (24.9 kg) Gross Weight: 92 lbs (41.7 kg) |
| Motherboard | Super X13DEI-T |
| Package | 15" (H) x 27" (W) x 39" (D) |
| Form Factors | |
| Product SKUs | SuperServer SSG-641E-E1CR24L (Silver) |
| Chipset | Intel C741 |
| Chassis Model | CSE-846BTS-R1K23BP5 |
| Memory Voltage | 1.1 V |
| Depth | 26" |
| Height | 7" |
| Chassis Form Factor | 4U Rackmount |
