- Dual socket 3rd Gen Intel? Xeon? Scalable processors, up to 72 Cores Per Node
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel? Optane? Persistent Memory Dedicated Slots
-
- 2x 10Gbe
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
- 24 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1200W Redundant Power Supplies Titanium Level (96%)
- HBA Controller support via Broadcom? 3808
* NOTE: Image may not exactly match the product

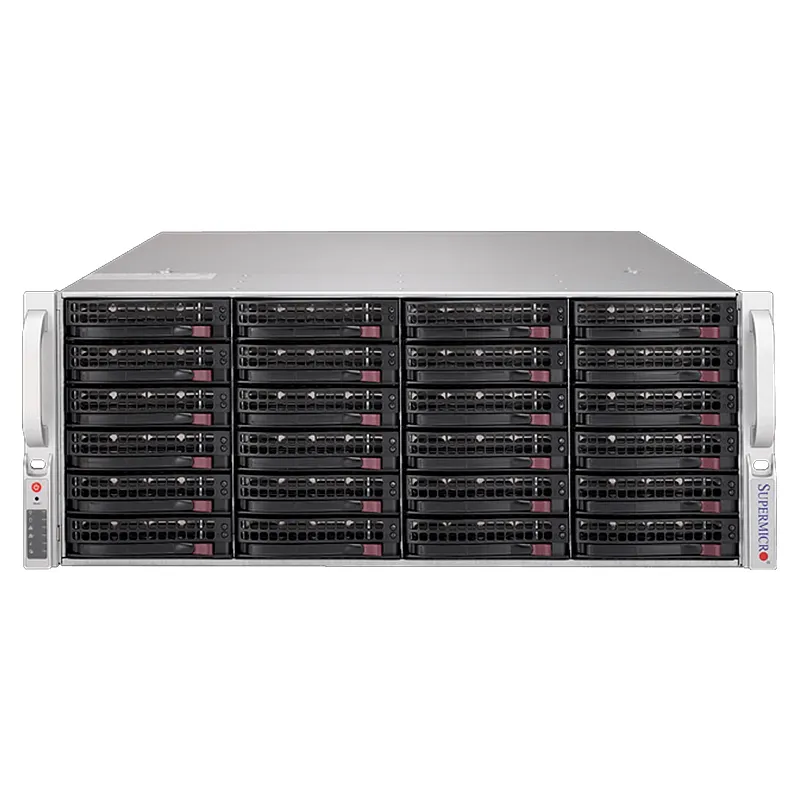

Storage SuperServer SSG-640P-E1CR24L
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Note | Supports 120W – 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | 2x 10GbE BaseT with Intel X550 |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Width | 17.2" (437mm) |
| Weight | Net Weight: 86 lbs (39 kg) Gross Weight: 118 lbs (53.52 kg) |
| Motherboard | Super X12DPi-NT6 |
| Package | 26.5" (H) x 34.3" (W) x 13.5" (D) |
| Form Factors | |
| Product SKUs | SuperServer SSG-640P-E1CR24L (Black) |
| Chipset | Intel C621A |
| Chassis Model | CSE-846BE1C-R1K23B |
| Depth | 26" (660mm) |
| Height | 7" (178mm) |
| Chassis Form Factor | 4U |
