- Dual Socket P+ (LGA-4189) 3rd Gen Intel? Xeon? Scalable Processors
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel? Optane? Persistent Memory Dedicated Slots
- 2x 10Gbe
- 16x 3.5″ hot-swap hybrid SATA/SAS drive bays (4 NVMe Hybrid Ports); 2 Rear SATA Slots; onboard 1 M.2 NVMe
- 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
- 1600W Redundant Power Supplies Titanium Level (96%)
- Broadcom? 3816 Controller
-

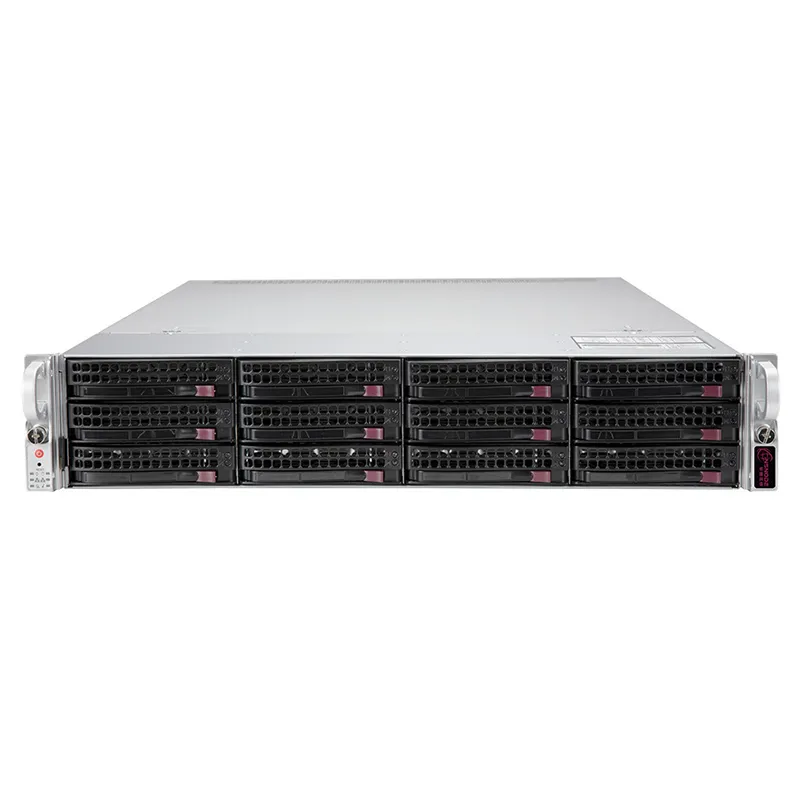

* NOTE: Image may not exactly match the product
Storage SuperServer SSG-620P-ACR16L
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Note | Supports 120W – 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | 2x 10GbE BaseT with Intel X550 |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM;LRDIMM;DCPMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Core Count | Up to 38C/76T; Up to 57MB Cache per CPU |
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Width | 17.2" (437mm) |
| Weight | Net Weight: 41.5 lbs (18.82 kg) Gross Weight: 62 lbs (28.12 kg) |
| Motherboard | Super X12DPi-NT6 |
| Package | 10.8" (H) x 25.9" (W) x 39.3" (D) |
| Form Factors | |
| Product SKUs | SuperServer SSG-620P-ACR16L (Black) |
| Chipset | Intel C621A |
| Chassis Model | CSE-829HE1C4-R1K62LPB |
| Depth | 27.75" (705mm) |
| Height | 3.5" (89mm) |
| Chassis Form Factor | 2U |
