- Dual Socket E (LGA-4677) 5th/4th Gen Intel? Xeon? Scalable processors. Up to 300W TDP.
- 16 ECC DDR5-5600: LRDIMM/RDIMM
-
- Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
- Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3908 controller by default)
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
- 24 3.5″ Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2 (form factor: 2280)
- 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1600W Redundant Power Supplies Titanium Level (96%)
- HBA Controller support via Broadcom? 3808

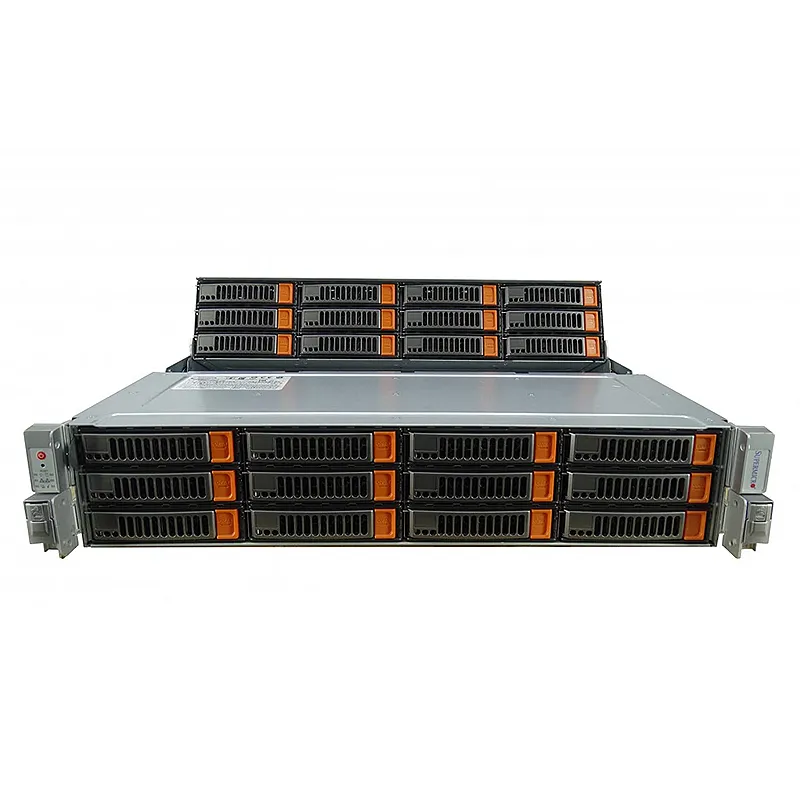

* NOTE: Image may not exactly match the product
Storage SuperServer SSG-521E-E1CR24L
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Note | Supports 120W – 300W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | Via AIOM |
| Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| CPU | Single Socket E (LGA-4677) 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
| Width | 17.2" |
| Weight | Net Weight: 52 lbs (23.59 kg) Gross Weight: 74.5 lbs (33.79 kg) |
| Motherboard | Super X13SEDW-F |
| Package | 12" (H) x 29" (W) x 52" (D) |
| Form Factors | |
| Product SKUs | SuperServer SSG-521E-E1CR24L (Silver) |
| Chipset | Intel C741 |
| Chassis Model | CSE-826S3TS-R1K62P1 |
| Memory Voltage | 1.1 V |
| Depth | 34" |
| Height | 3.5" |
| Chassis Form Factor | 2U Rackmount |
