Samsung MZTL27T6HBLA-00A07 PM9A3 7.68TB PCIe 4.0x4 (NVMe) E1.S 9.5MM Solid State Drive

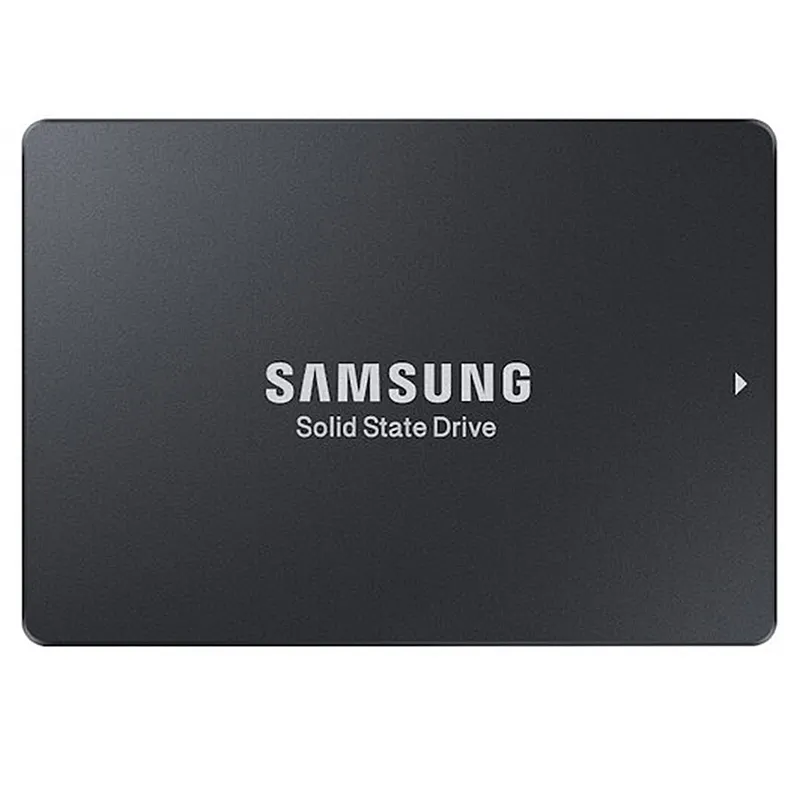

* NOTE: Image may not exactly match the product

Samsung MZTL27T6HBLA-00A07 PM9A3 7.68TB PCIe 4.0×4 (NVMe) E1.S 9.5MM Solid State Drive

$Quote1 Piece(MOQ)

SKU MZTL27T6HBLA-00A07 Categories , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Enterprise Functionality
Samsung PM9A3 SSD has the power efficiency and cost-effectiveness for large-scale cloud datacenter deployment but delivers features usually reserved for high-end enterprise NVMe SSDs. Samsung PM9A3 SSD keeps your private data confidential, with encryption via a hardware-based AES-XTS 256-bit encryption engine, and management via the TCG Enterprise standard. The new secure boot feature cryptographically verifies the integrity of every firmware image??s RSA 3072 digital signature prior to execution, helping defend against advanced security threats that target device firmware.
Samsung PM9A3 SSD supports out-of-band drive management through NVMe Basic Management Command over SMBus. This enterprise functionality allows board management controllers to inventory and provision SSDs without operation system dependencies. Samsung??s PM9A3 SSD includes enterprise power loss protection (PLP). During normal power-off periods, the host server allocates time to preserve data integrity by transmitting a standby command to each device.
In the event of an unexpected power loss, though, the cached data in a storage device??s internal DRAM buffers can be lost. This can occur with unexpected power outages, or when users unplug devices from the system. However, the Samsung PM9A3 SSD has been designed to prevent data loss resulting from unexpected power shutdowns with its PLP architecture. Upon detection of a failure, the SSD immediately uses the stored energy from its PLP capacitors to provide enough time to transfer the cached data in DRAM to the flash memory, ensuring no loss of data.
Specifications
Model Number MZTL27T6HBLA-00A07
Brand SAMSUNG
Alt Part Number(s) MZTL27T6HBLA-00A07
Product Type Solid State Drive
Specifications
Brand SAMSUNG
Model MZTL27T6HBLA-00A07
Series Pm9a3
Capacity 7.68 Tb
Interface Pcie 4.0 X4 (nvme)
Sequential Read 6800 Mbps
Sequential Write 4000 Mbps
4kb Random Read 1000000 Iops
4kb Random Write 190000 Iops
Output Voltage 208 – 230 V Ac
Protocols Web, Snmp, Telnet
Form Factor E1.s 9.5mm
Form Factor

EDSFF E1.S
4KB Random Write

190000 IOPS
Capacity

7.68TB
Brand

SamSung
4KB Random Read

1000000 IOPS
Interface

PCIe 4.0 x4 NVMe
Application

Server
Products Status

New
