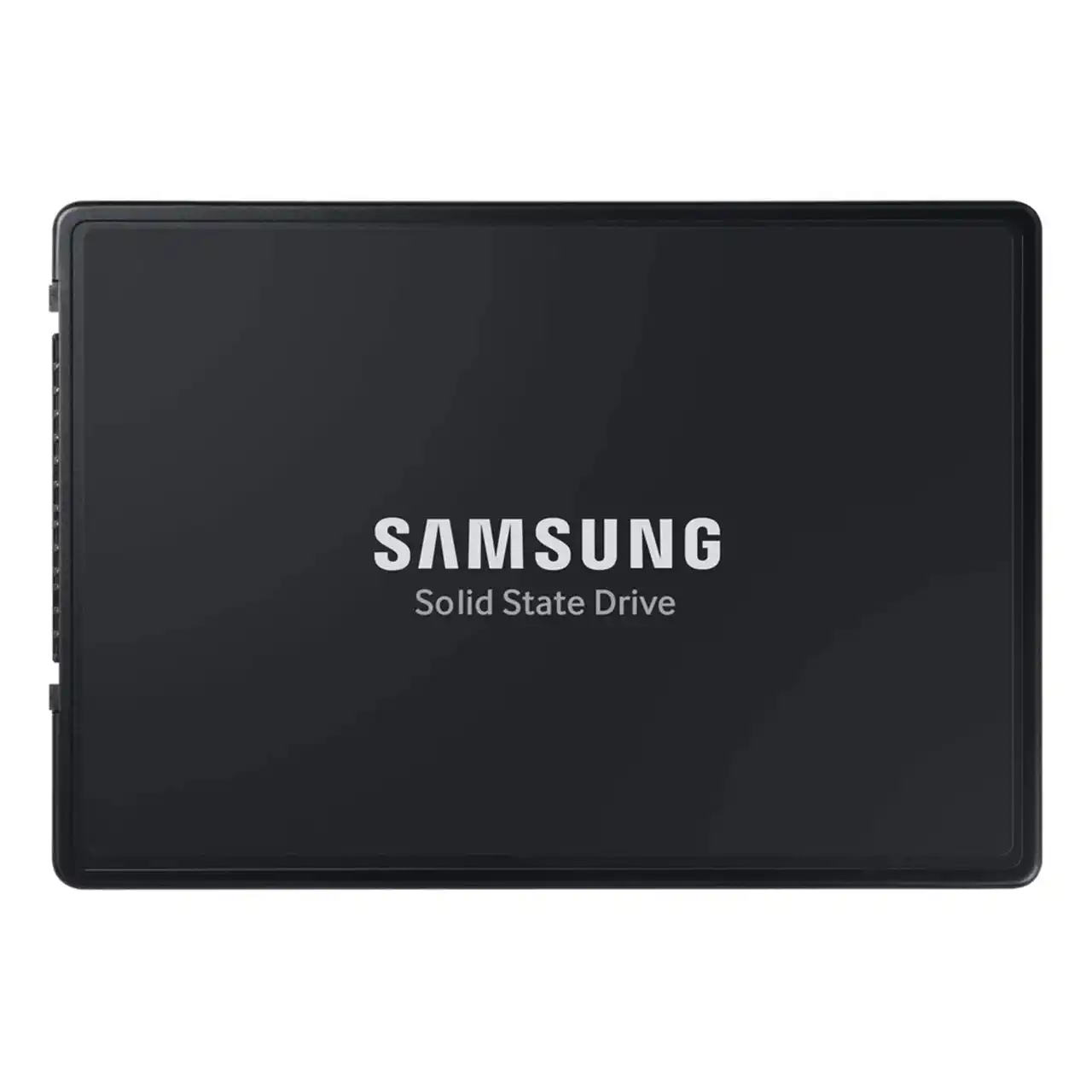

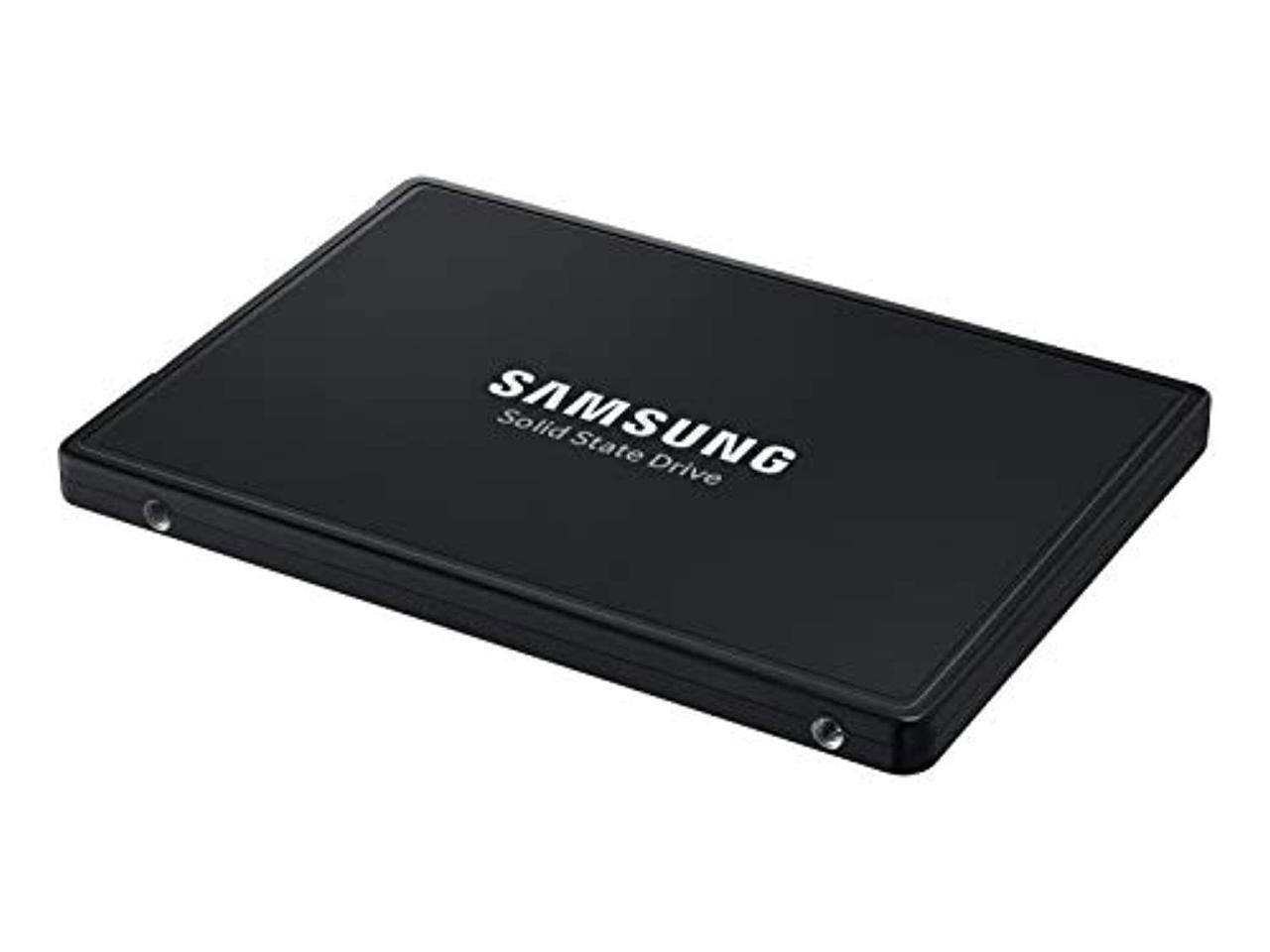

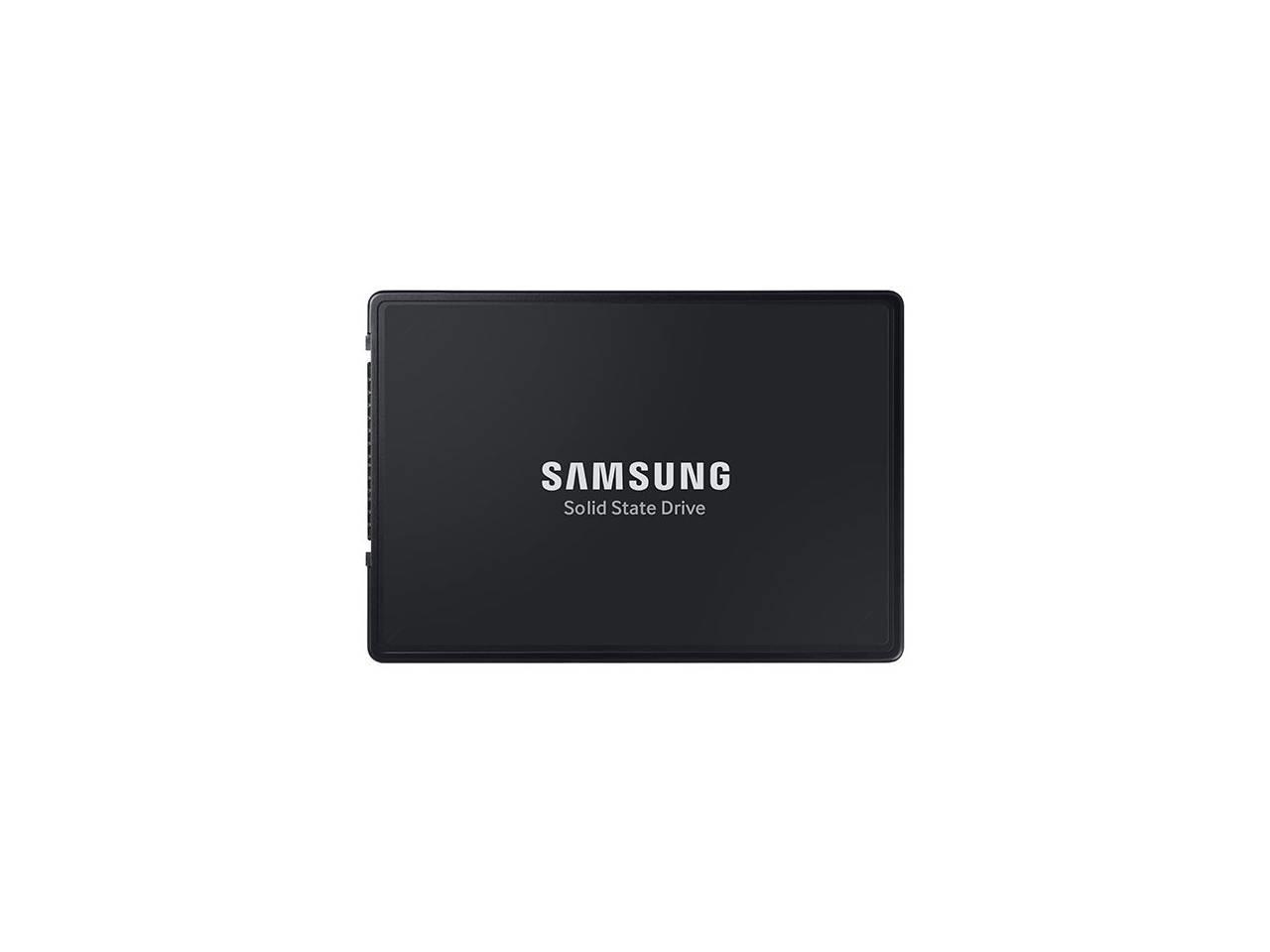

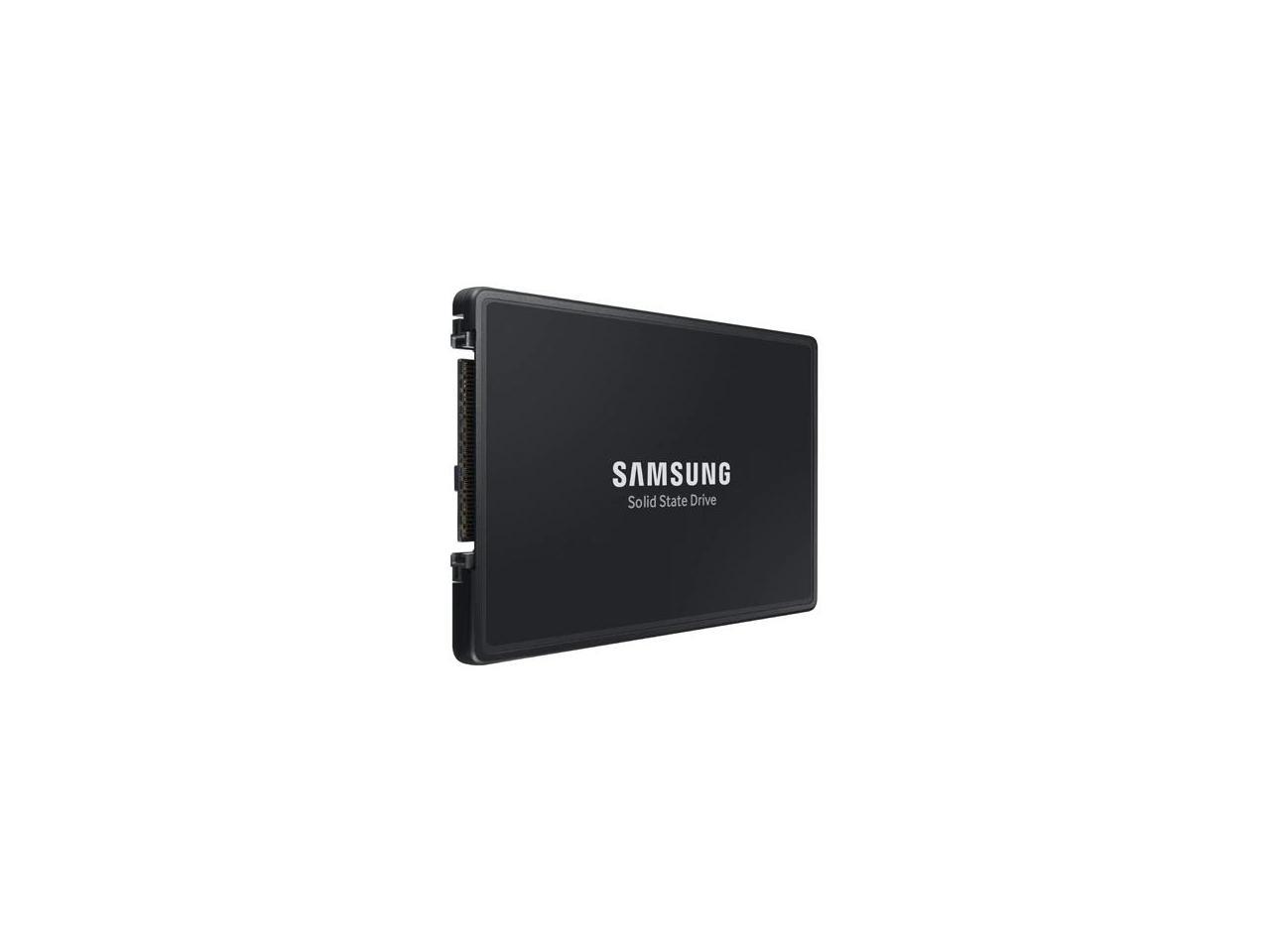

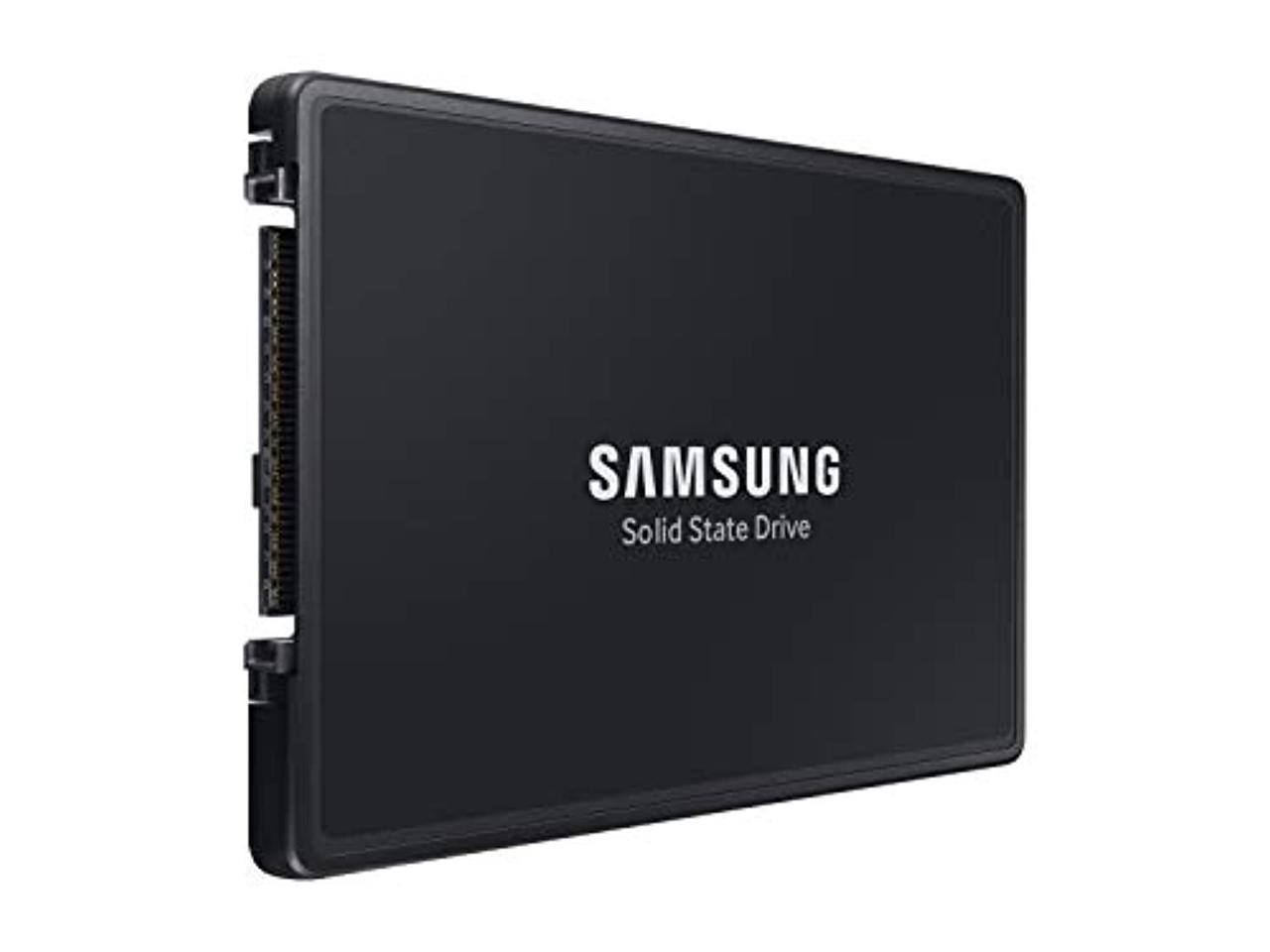

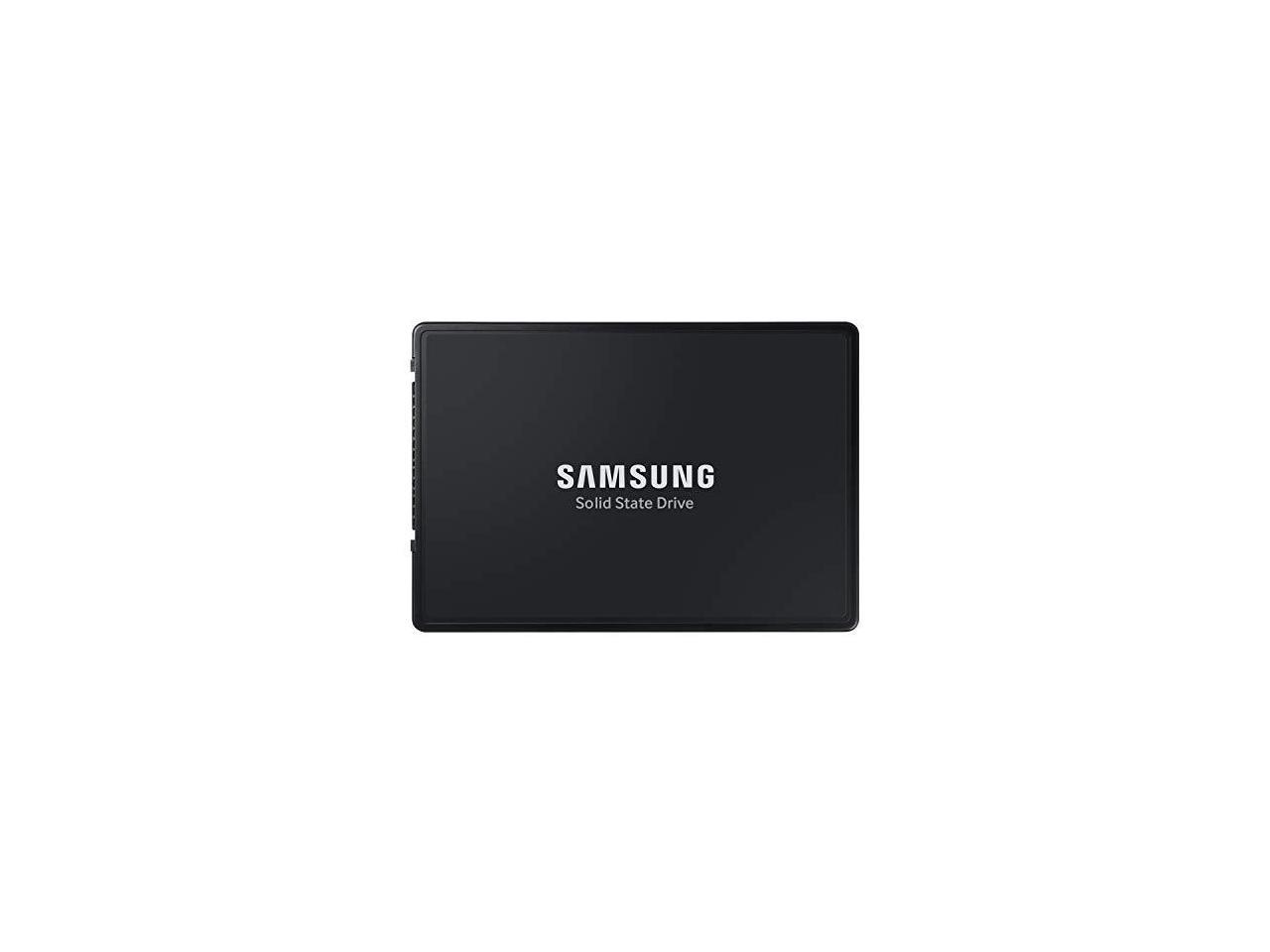

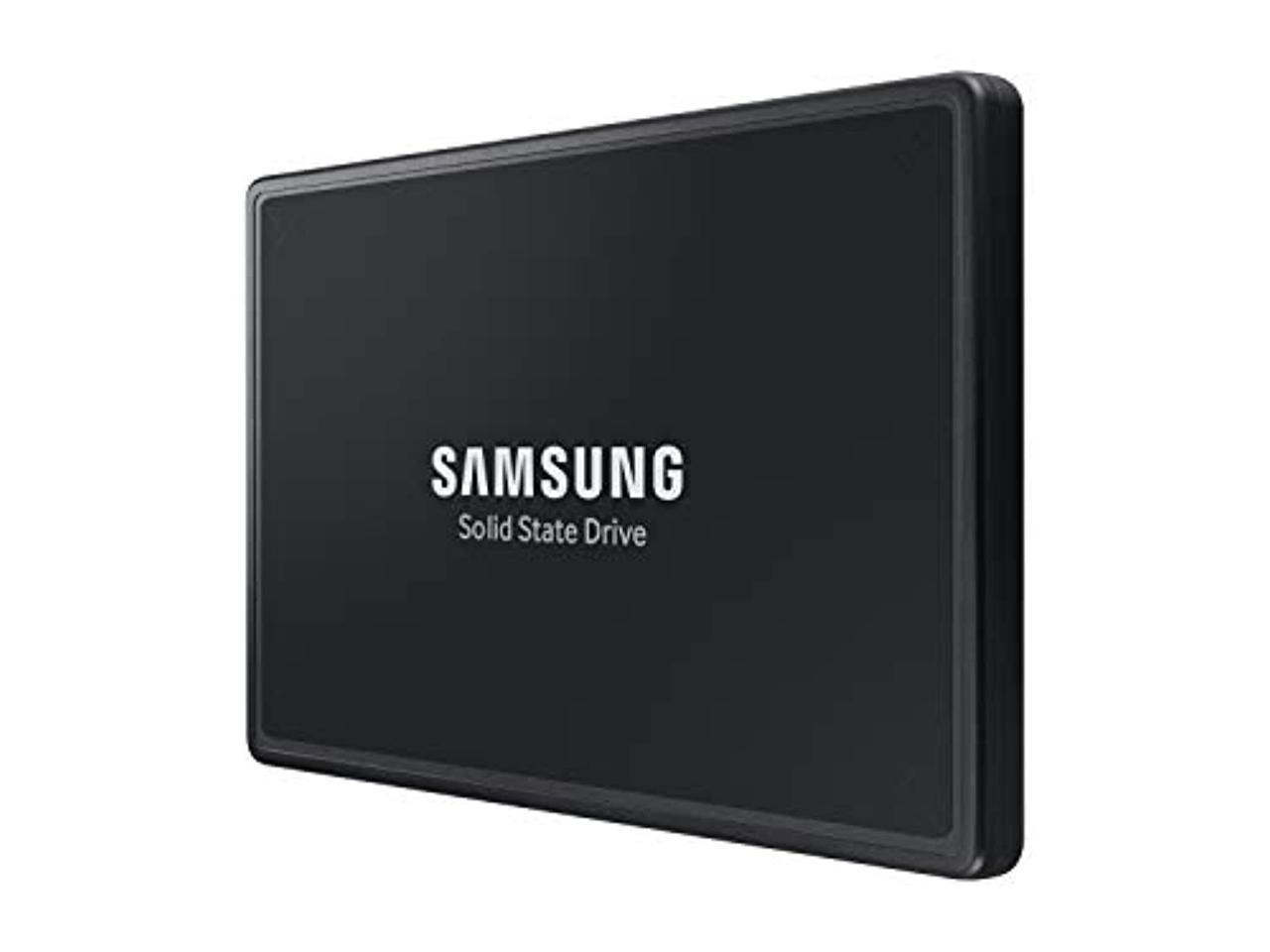

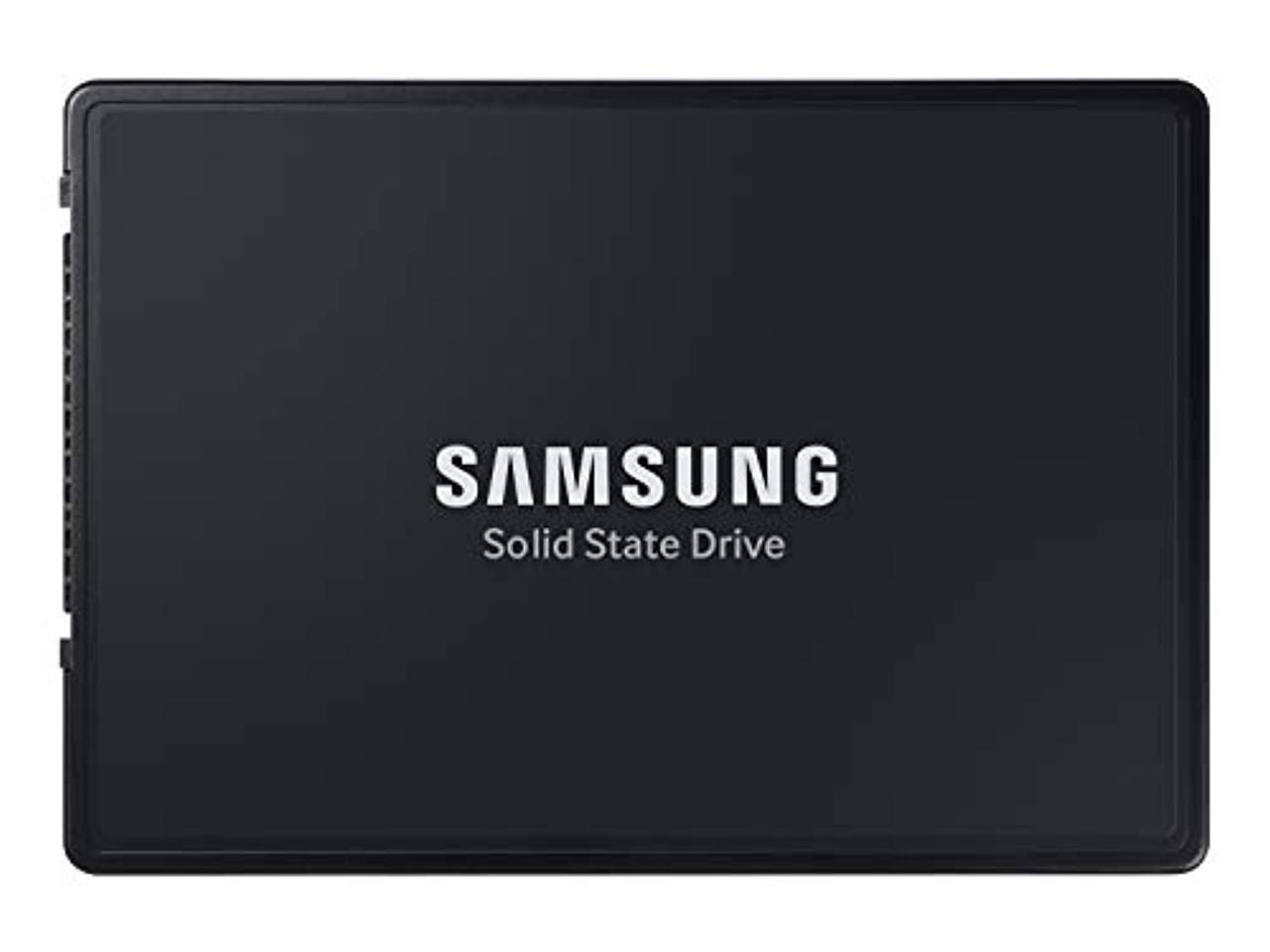

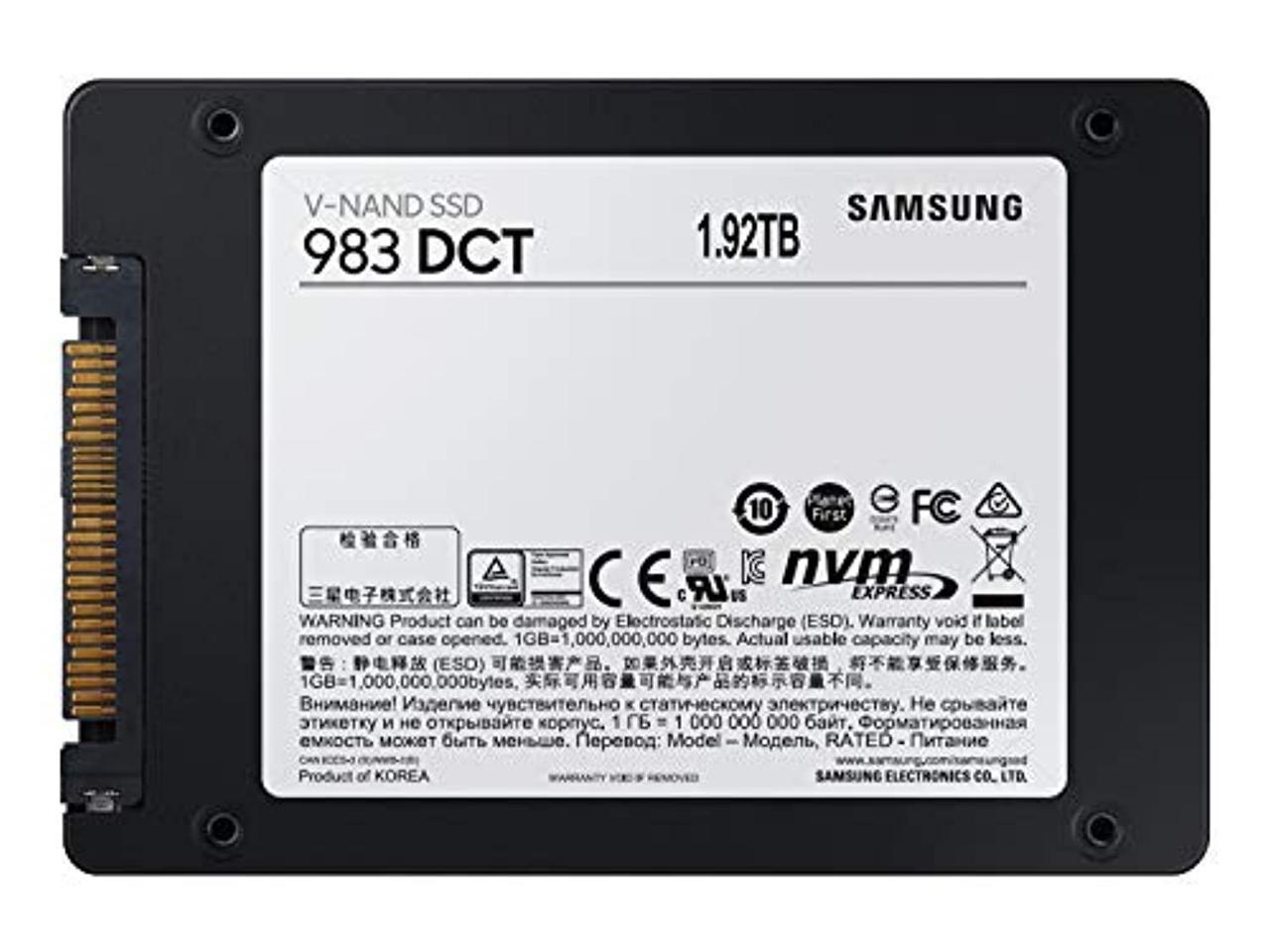

SAMSUNG 983 DCT Series U.2 2.5" 1.9TB Enterprise SSD MZ-QLB1T9NE

Main Specifications:

Product Description : SAMSUNG 983 Dct MZ-QLB1T9NE – Solid State Drive – 1.9 Tb – Pci Express 3.0 X4 (nvme)
Type : Solid State Drive – Internal
Capacity : 1.9 Tb
Hardware Encryption : Yes
Encryption Algorithm : 256-bit Aes
Nand Flash Memory Type : SAMSUNG V-nand 3-bit Mlc
Form Factor : 2.5 / U.2
Interface : Pci Express 3.0 X4 (nvme)
Features : Trim Support, Auto Garbage Collection Algorithm, V-nand Technology, SAMSUNG Maru Controller, S.m.a.r.t.
Dimensions (wxdxh) : 110.2 X 22.0 X 3.8 (mm)
Weight : 20.0 G
Performance :
Internal Data Rate : 3000 Mb/s (read) / 1430 Mb/s (write)
Random Read : 480000 Iops
Random Write : 42000 Iops
Reliability :
Mtbf : 2,000,000 Hours
Expansion & Connectivity :
Interfaces : 1 X Pci Express 3.0 X4 (nvme)
Compatible Bay : 2.5 / U.2

Power Consumption (Active)	Read/Write: 8.7W/10.6W
Memory Components	V-NAND 3-bit MLC
Width	69.85mm
Max Shock Resistance	1 500G & 0.5 ms (Half sine)
Form Factor	2.5" U.2
4KB Random Write	Up to 52 000 IOPS
Max Sequential Read	Up to 3400 MB/s
Capacity	1.92TB
Brand	SamSung
Depth	100.20mm
4KB Random Read	Up to 580 000 IOPS
Model	MZ-QLB1T9NE
Series	Samsung 983 DCT
Features	Advanced ECC Engine and End-to-End Data Protection, Dynamic Thermal Guard Protection, High Quality of Service (QoS), Power-loss protection, S.M.A.R.T., Sustained Performance, U.2 Form Factor and Non-Volatile Memory Express (NVMe), V-NAND Technology
Cache	Samsung 3GB Low Power DDR4 SDRAM
Interface	PCIe 3.0 x4 NVMe 1.2b
Power Consumption (Idle)	Max. 4.0W
MTBF	2 000 000 hours
Application	Server
Products Status	New
Max Sequential Write	Up to 2200 MB/s
Height	7.00mm
Weight	70.00g
Operating Temperature	0C ~ +70C
Controller	Samsung Phoenix Controller
