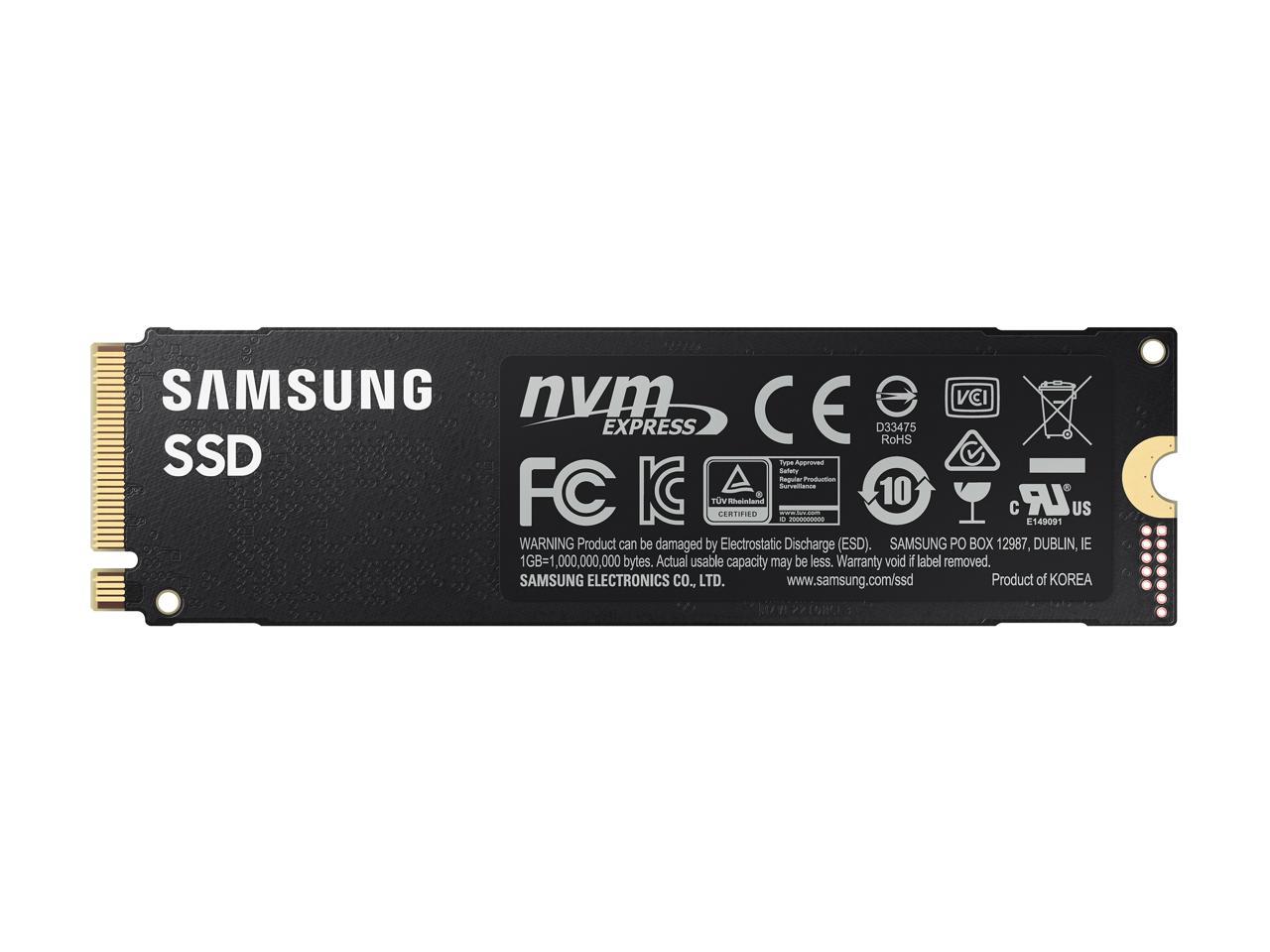

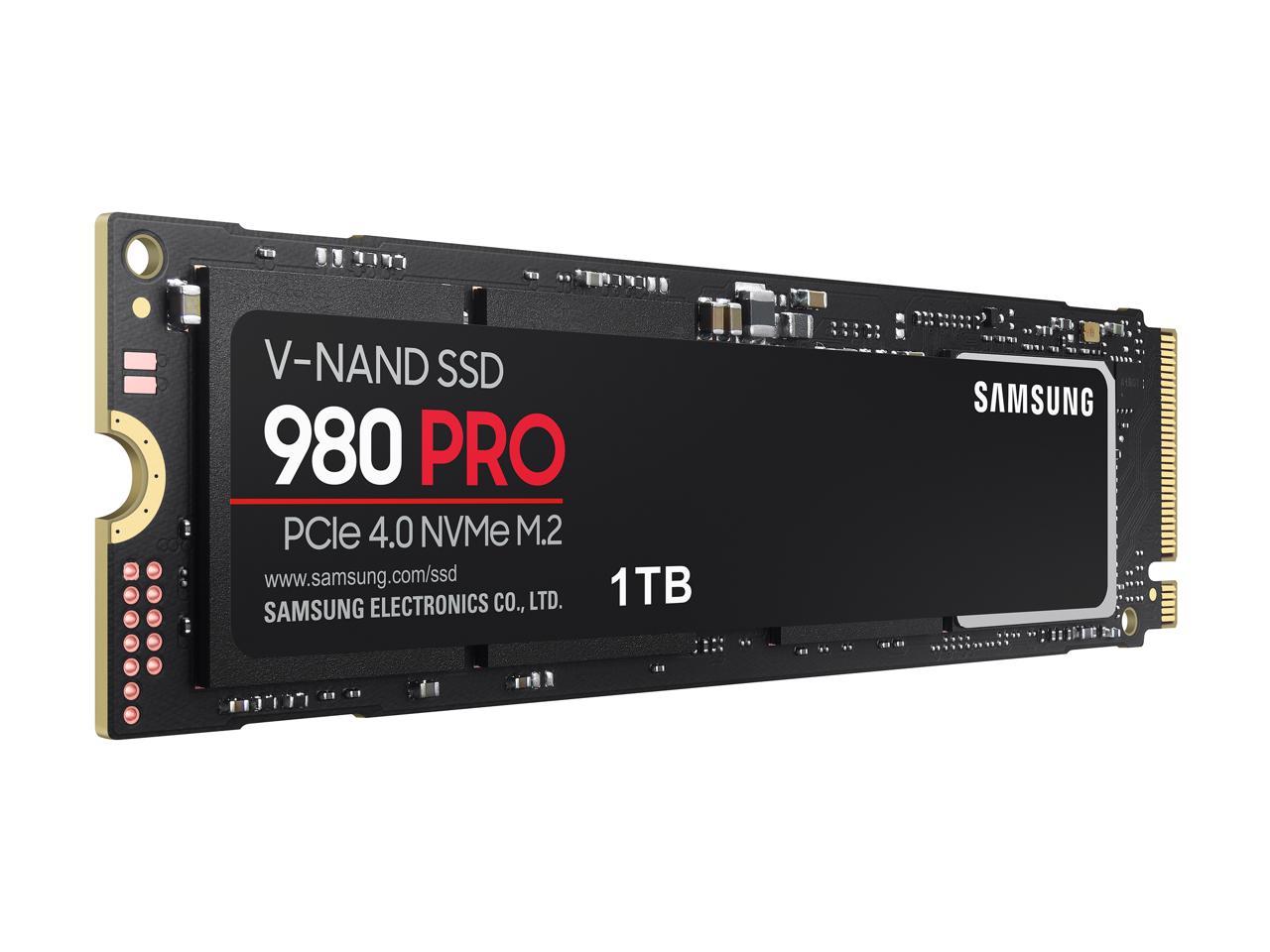

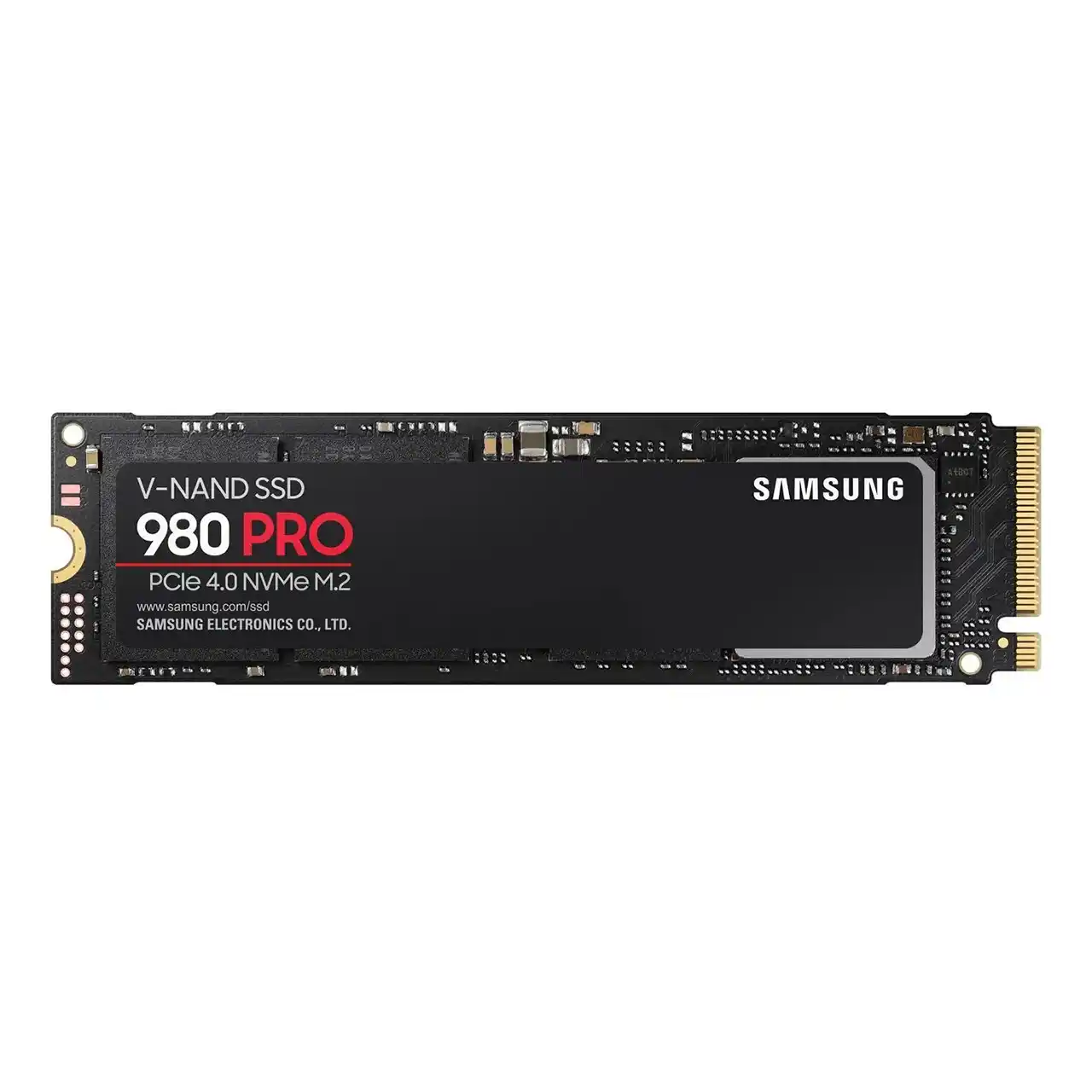

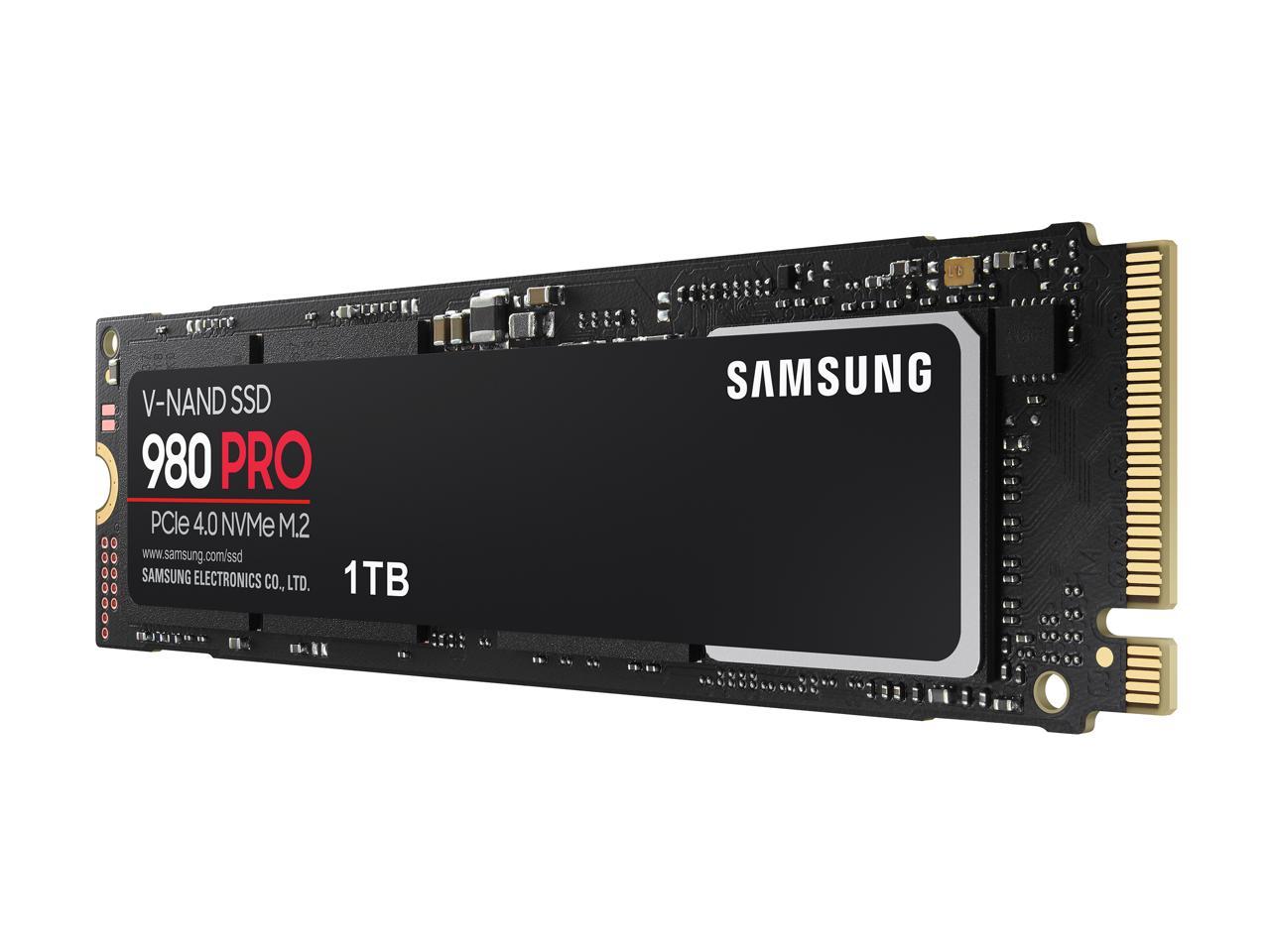

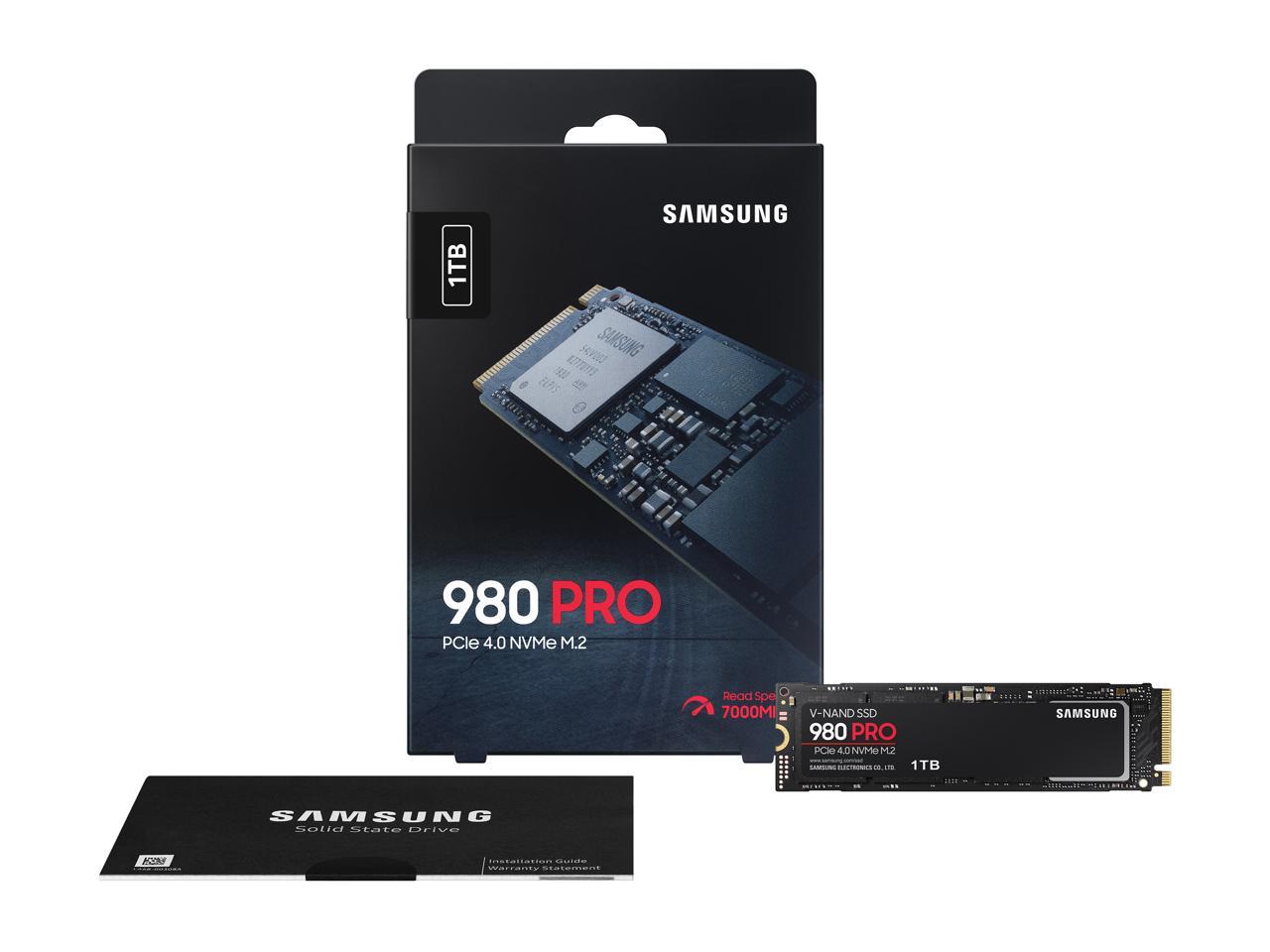

SAMSUNG 980 PRO SSD 1TB, PCIe 4.0 M.2 2280, Speeds Up-to 7,000MB/s Best for High End Computing, Gaming, and Heavy Duty Workstations (MZV8P1T0B/AM)

SamSung 980PRO 1TB M.2 2280 NVMe PCIe 4.0 x4 MZ-V8P1T0B/AM

$Quote1 Piece(MOQ)1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Additional information

Power Consumption (Active)

Read: 6.2W, Write: 5.7W

Memory Components

Samsung V-NAND 3-bit MLC

Width

22.15mm

Form Factor

M.2 2280

4KB Random Write

QD1: Up to 60 000 IOPS, QD32: Up to 1 000 000 IOPS

Storage Temperature

-40C ~ +85C

Max Sequential Read

Up to 7000 MB/s

Capacity

1TB

Brand

SamSung

Used For

Consumer

Depth

80.15mm

Encryption

AES 256-bit Full Disk Encryption TCG/Opal V2.0 Encrypted Drive (IEEE1667)

4KB Random Read

QD1: Up to 22 000 IOPS, QD32: Up to 1 000 000 IOPS

Model

MZ-V8P1T0B/AM

Series

Samsung 980 PRO

Cache

1GB LPDDR4

Interface

PCIe 4.0 x4 NVMe 1.3c

Power Consumption (Idle)

35 mW

MTBF

1 500 000 hours

Application

Desktop

Device Type

Internal Solid State Drive (SSD)

Products Status

New

Max Sequential Write

Up to 5000 MB/s

Height

2.38mm

Weight

9.00g

Terabytes Written (TBW)

600TB

Operating Temperature

0C ~ +70C

Controller

Samsung
