- M.2 2280
- 512GB
- PCIe Gen 3.0 x4, NVMe 1.3

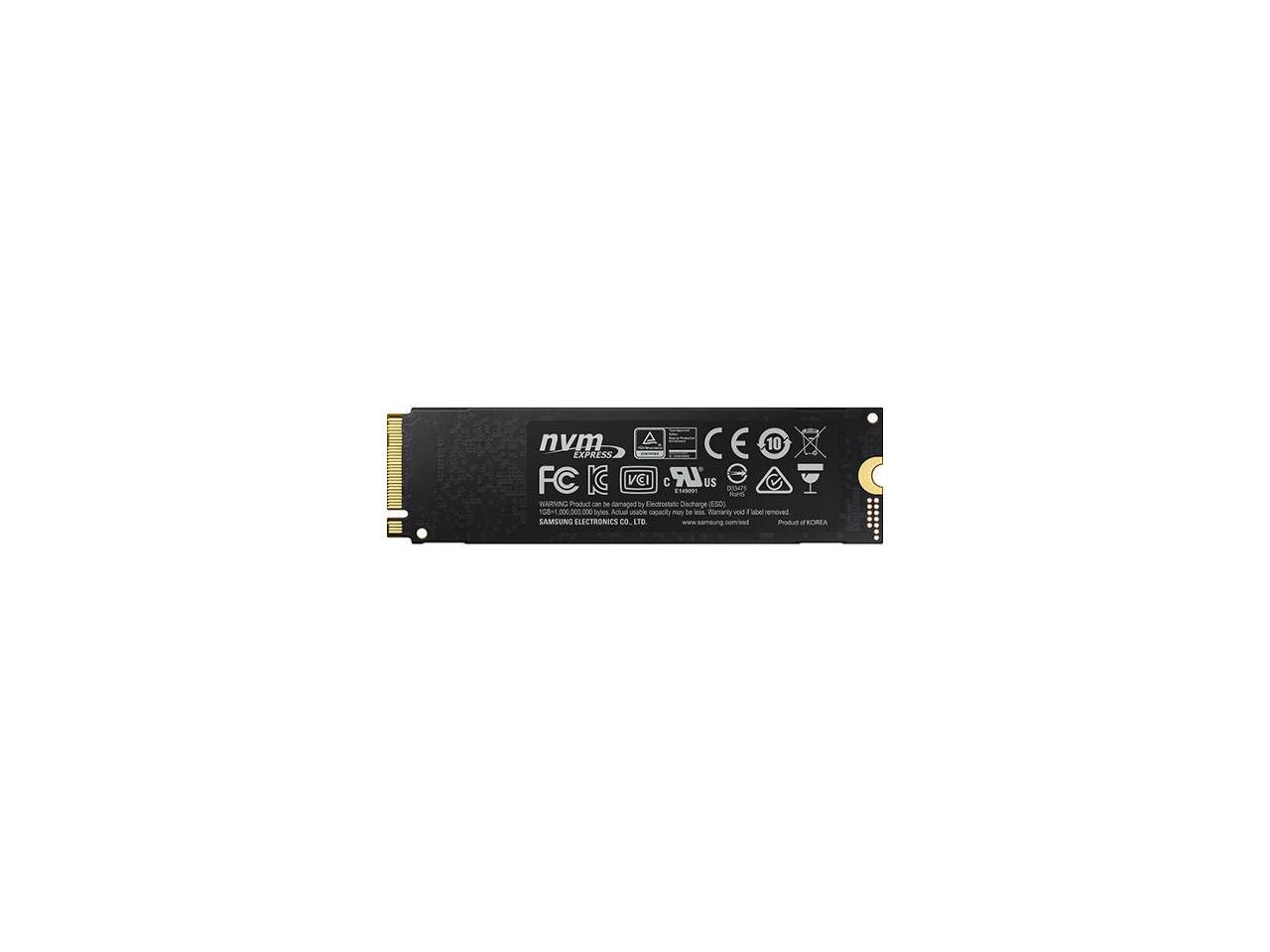

* NOTE: Image may not exactly match the product

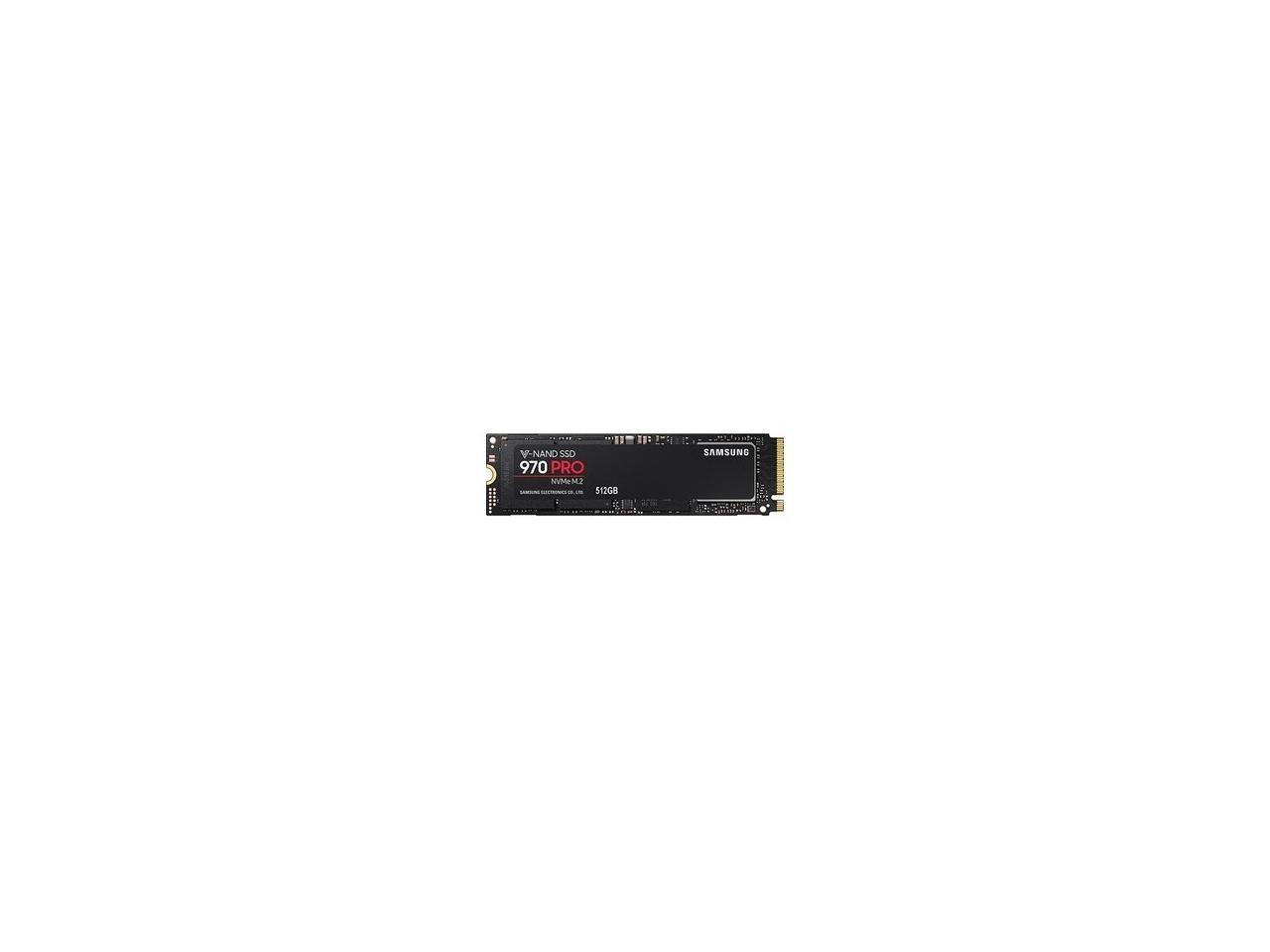

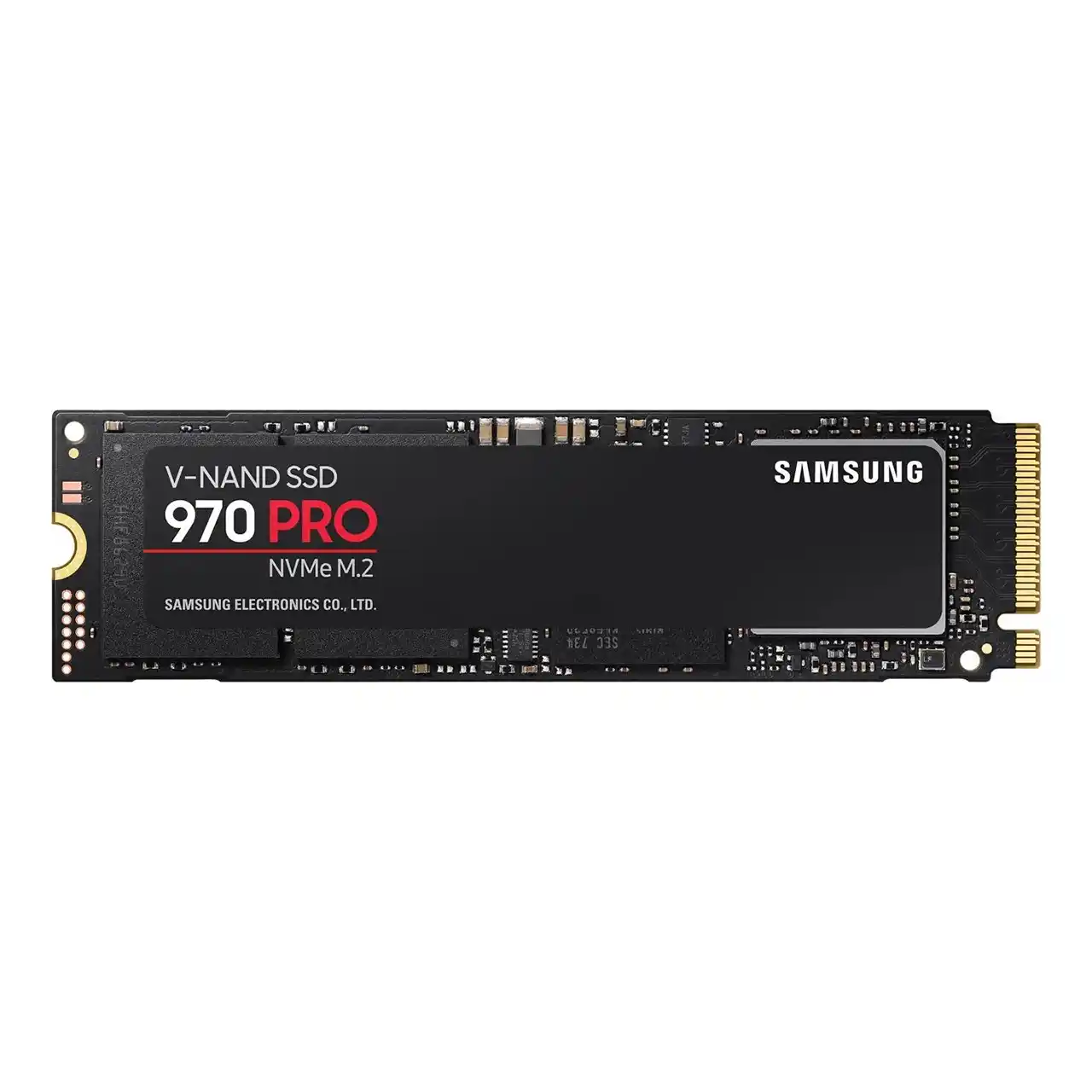

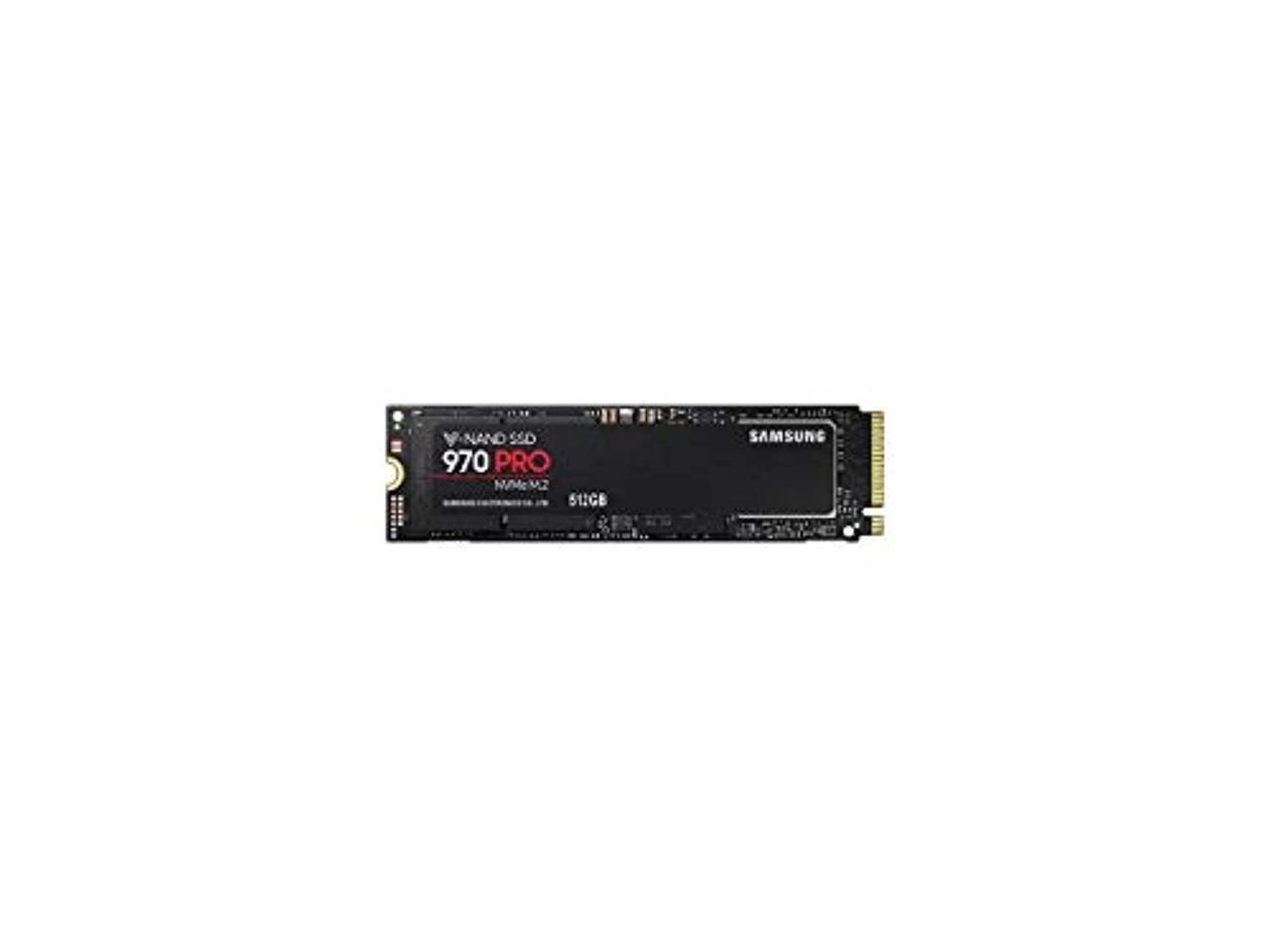

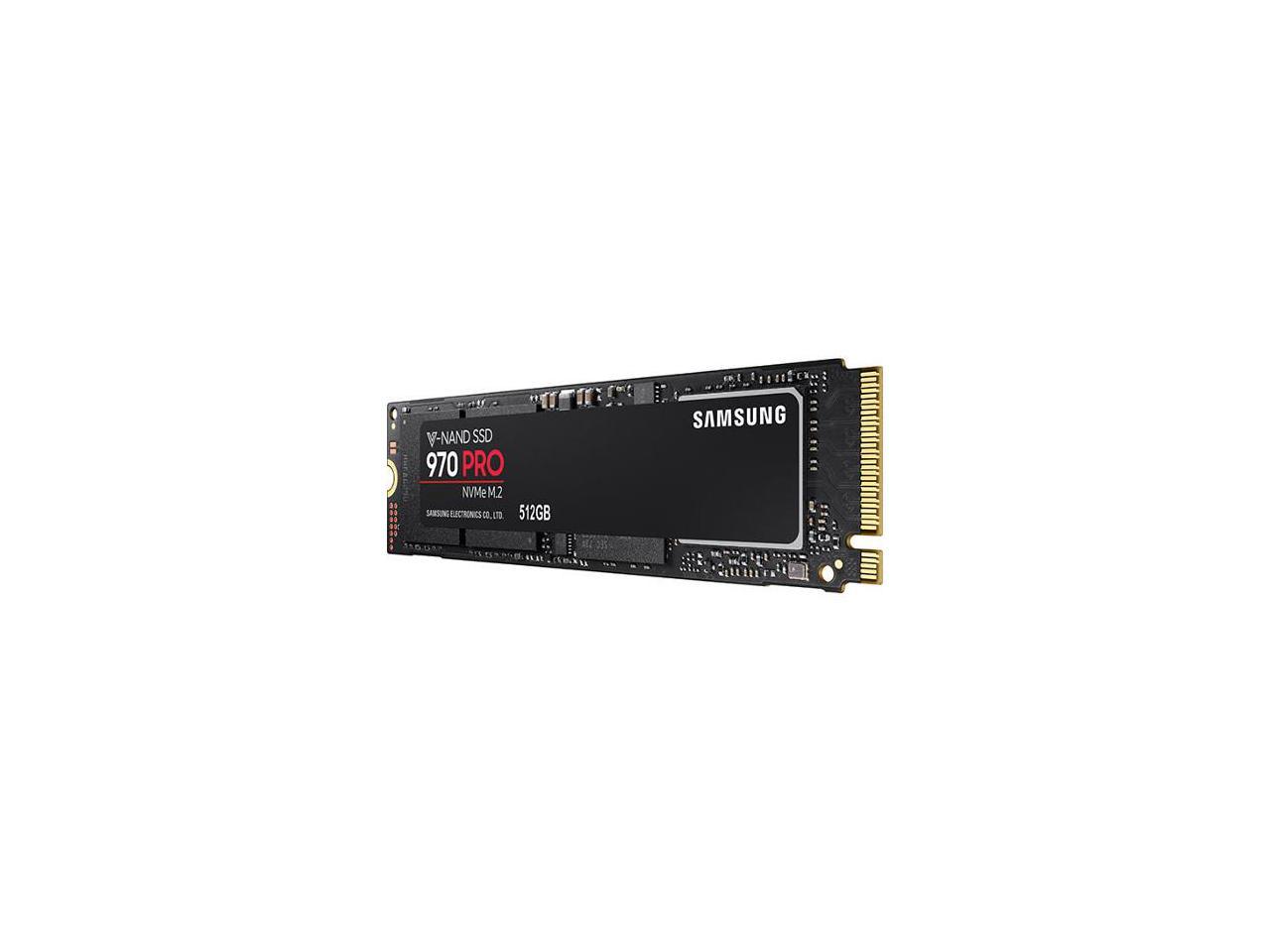

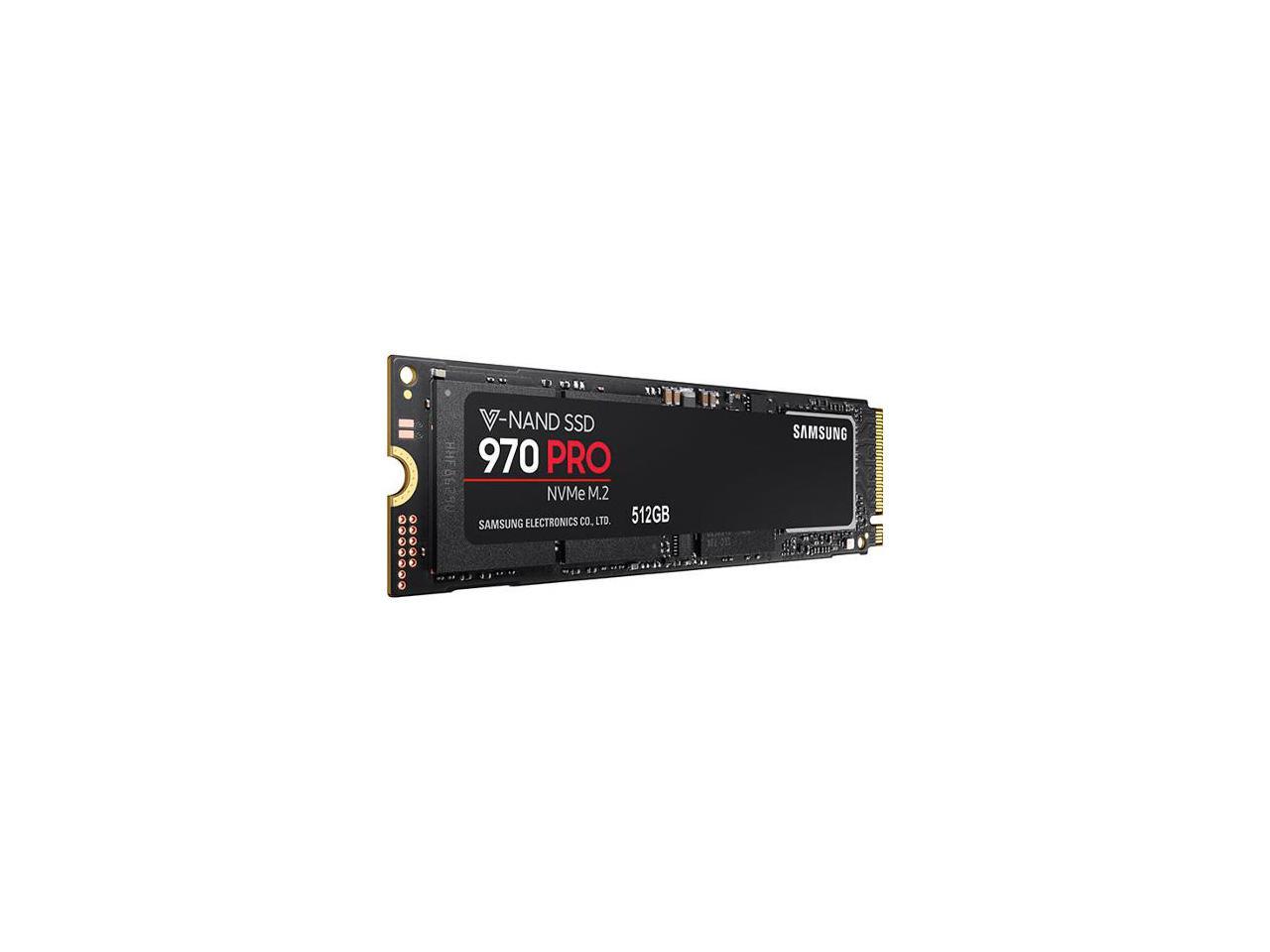

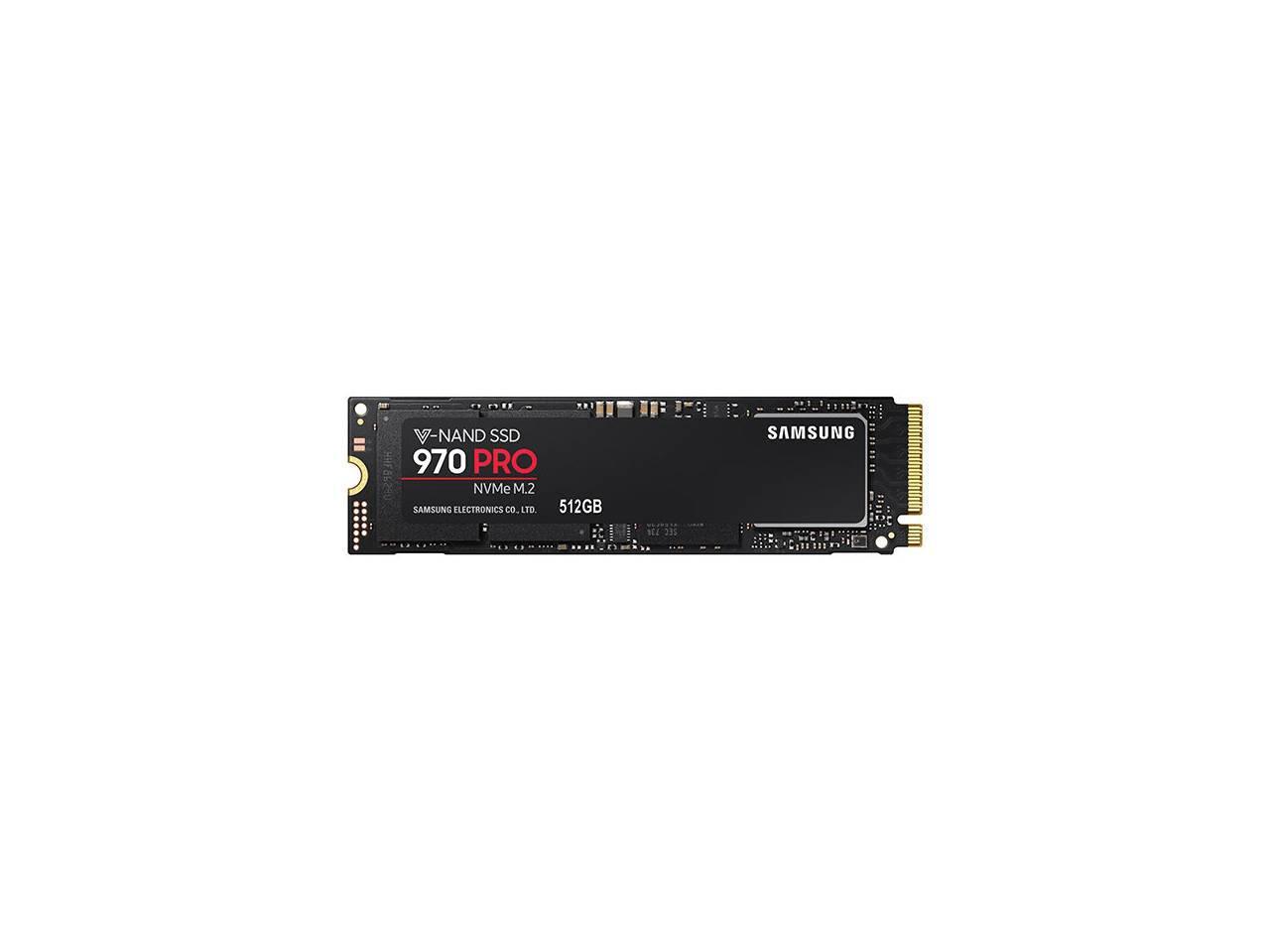

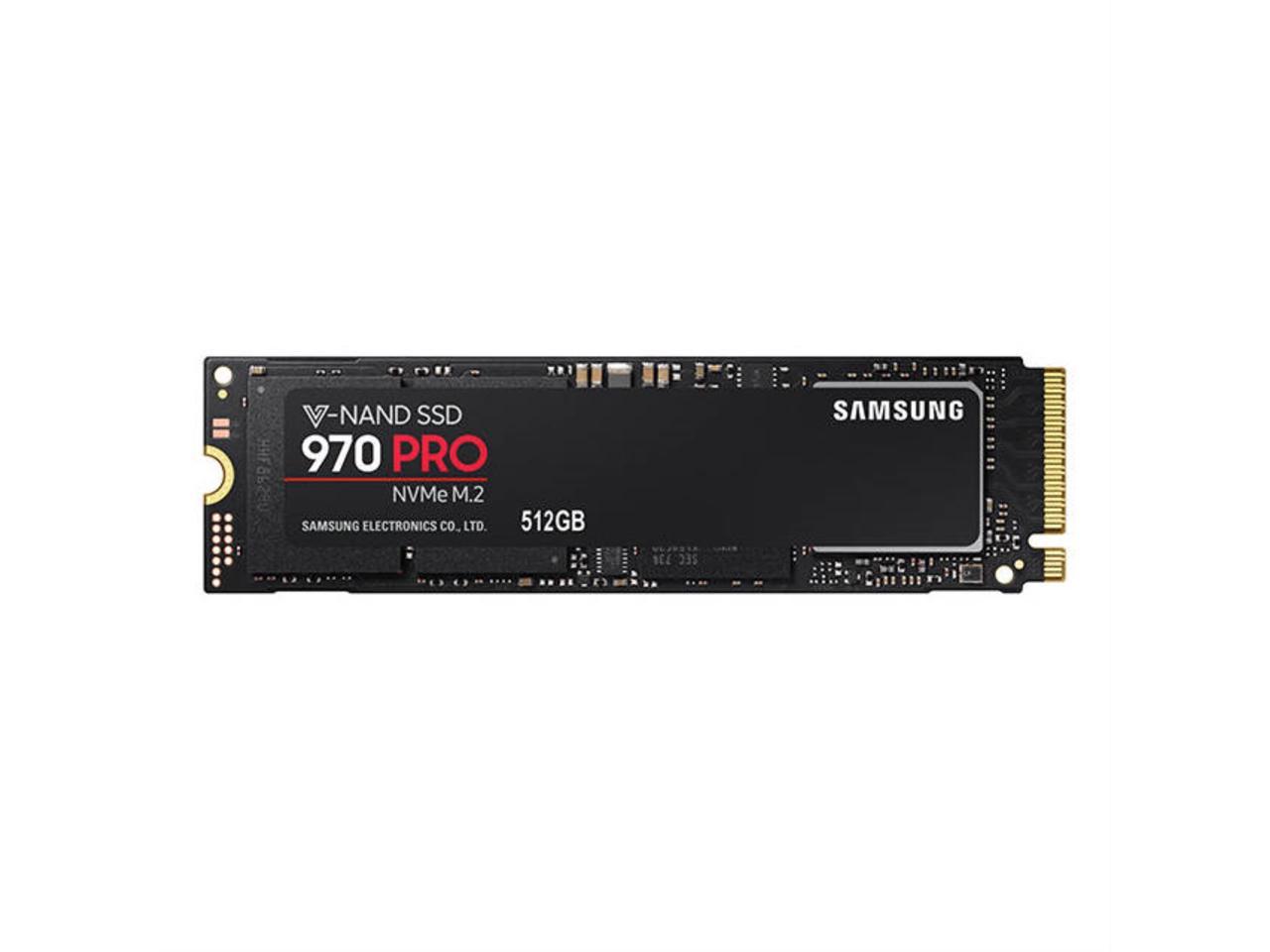

SAMSUNG 970 PRO M.2 2280 512GB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND 2-bit MLC Internal Solid State Drive (SSD) MZ-V7P512E
$Quote1 Piece(MOQ)1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Power Consumption (Active) | Average: 5.2W / Maximum: 8.5W (Burst mode) |
|---|---|
| Memory Components | V-NAND 2-bit MLC |
| Width | 22.15mm |
| Max Shock Resistance | 1 500G & 0.5 ms (Half sine) |
| Form Factor | M.2 2280 |
| 4KB Random Write | QD1: 55 000 IOPS, QD32: 500 000 IOPS |
| Max Sequential Read | Up to 3500 MB/s |
| Capacity | 512GB |
| Brand | SamSung |
| Used For | Consumer |
| Depth | 80.15mm |
| 4KB Random Read | QD1: 15 000 IOPS, QD32: 370 000 IOPS |
| Model | MZ-V7P512E |
| Series | Samsung 970 PRO |

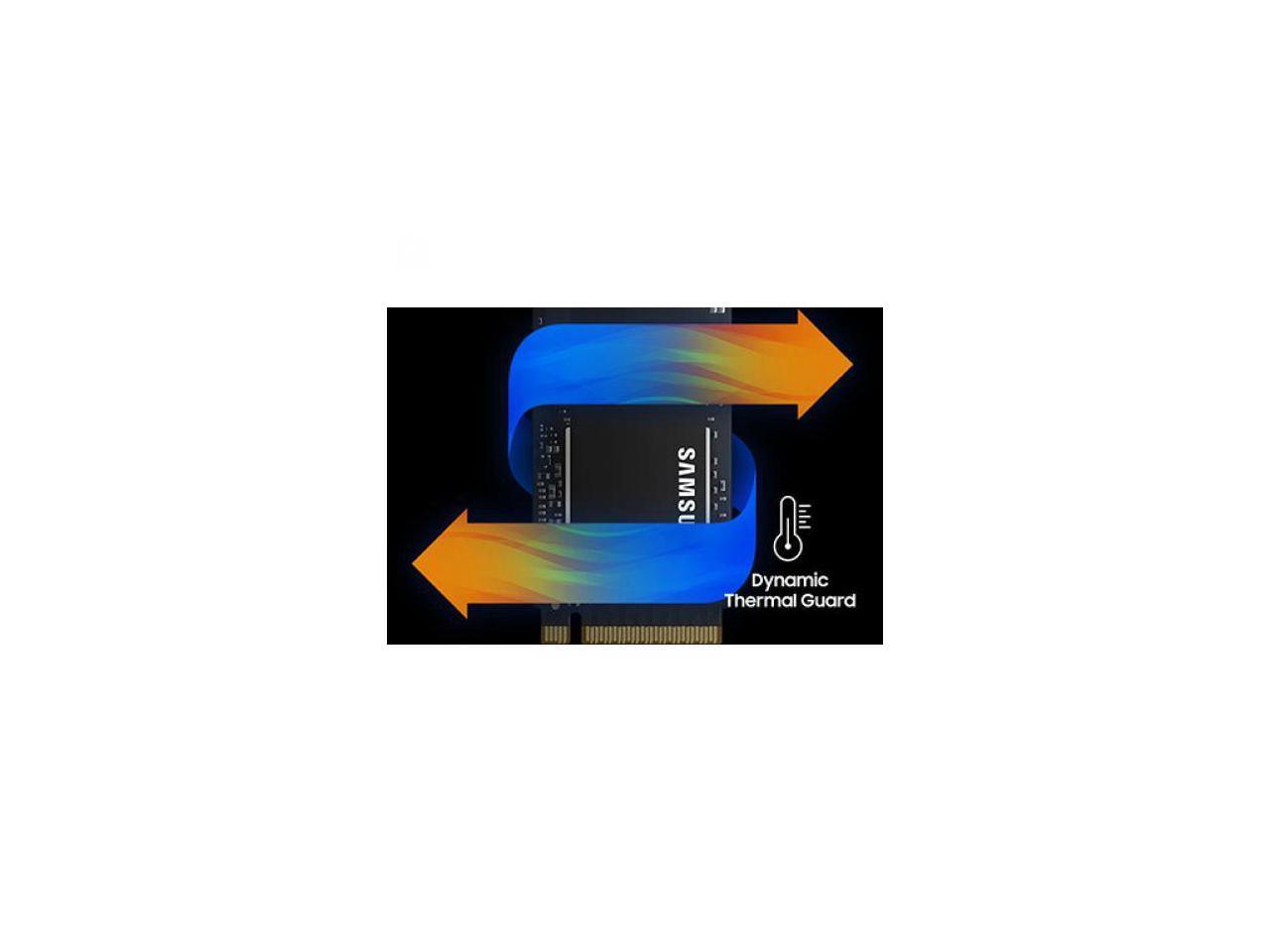

| Features | Dynamic Thermal Guard, Highly-Efficient Power Management, Non-Volatile Memory Express (NVMe), Professional-Quality Drive Management, SSD Data Security, Thanks to exceptionally low active power consumption you can work efficiently for long periods of time. Device Sleep Mode is also supported for ultra-thin laptop PCs and high-end desktop main boards., This drive includes an AES-256-bit hardware based full disk encryption engine that secures your data without sacrificing performance and is compliant with TCG/OPAL V2.0 and IEEE1667., V-NAND Technology |
| Cache | 512MB Low Power DDR4 SDRAM |
| Interface | PCIe 3.0 x4 NVMe 1.3 |
| Power Consumption (Idle) | 30 mW (max) |
| MTBF | 1 500 000 hours |
| Application | Desktop |
| Device Type | Internal Solid State Drive (SSD) |
| Products Status | New |
| Max Sequential Write | Up to 2300 MB/s |
| Height | 2.38mm |
| Weight | 8.00g |
| Operating Temperature | 0C ~ +70C |
| Controller | Samsung Phoenix |
