* NOTE: Image may not exactly match the product

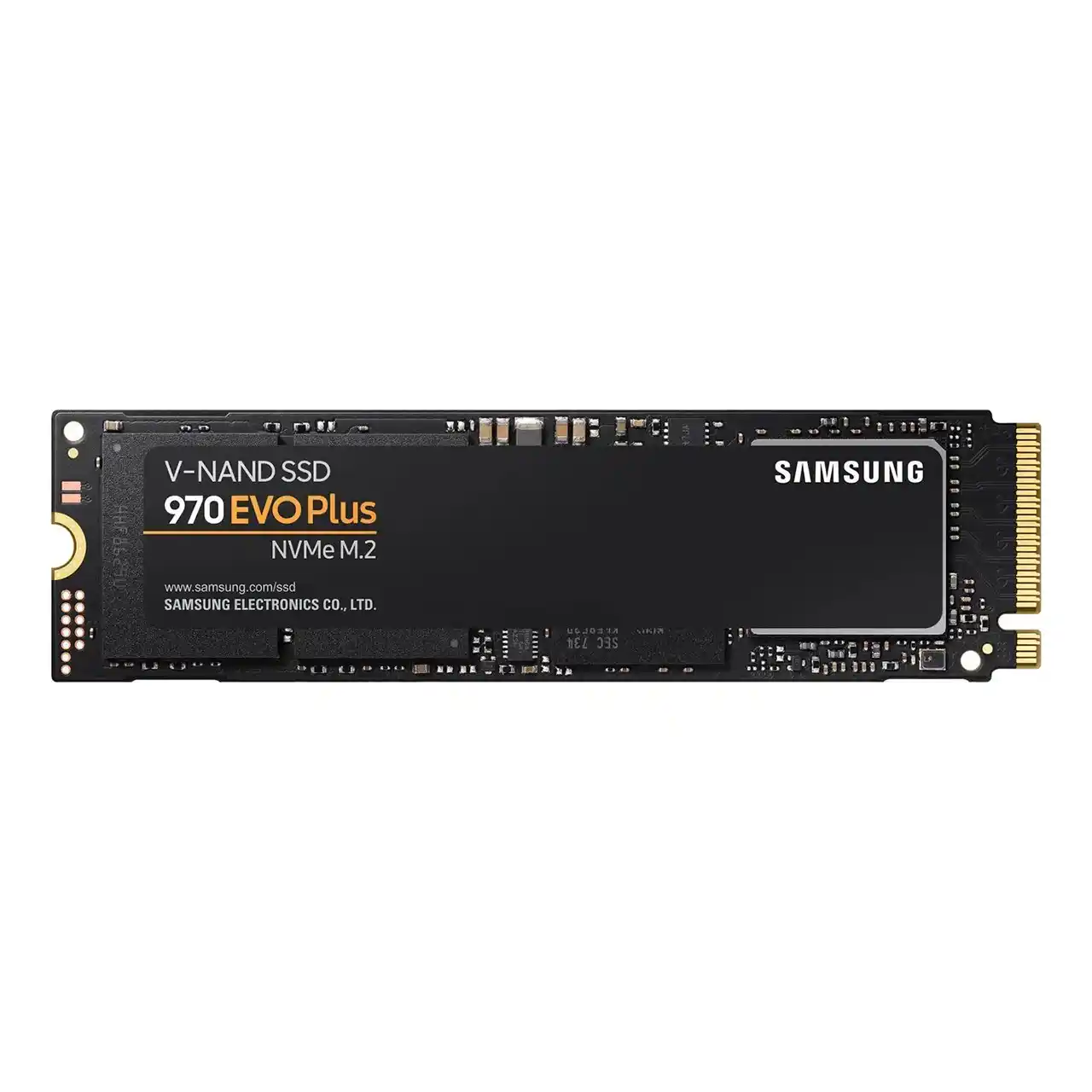

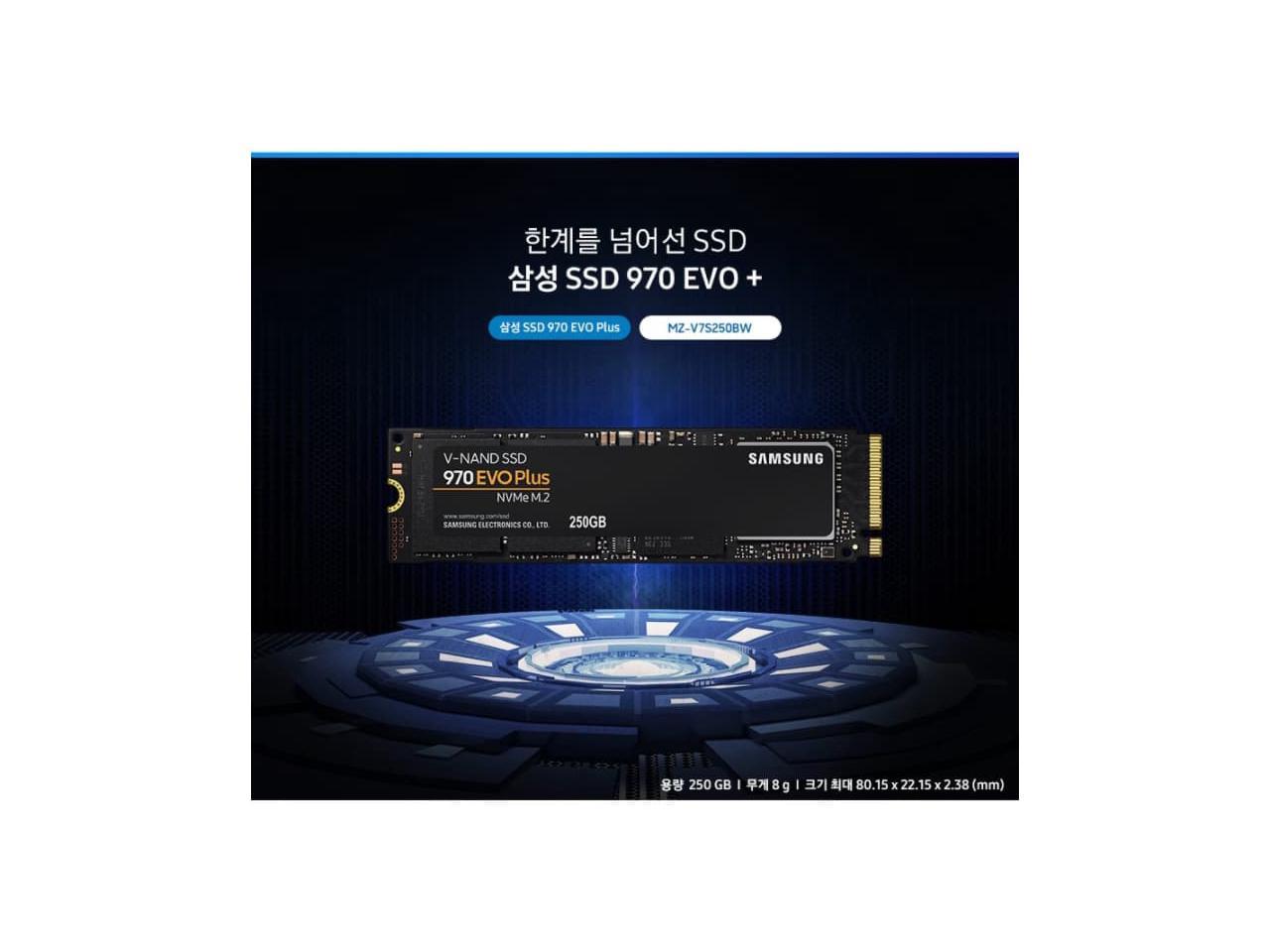

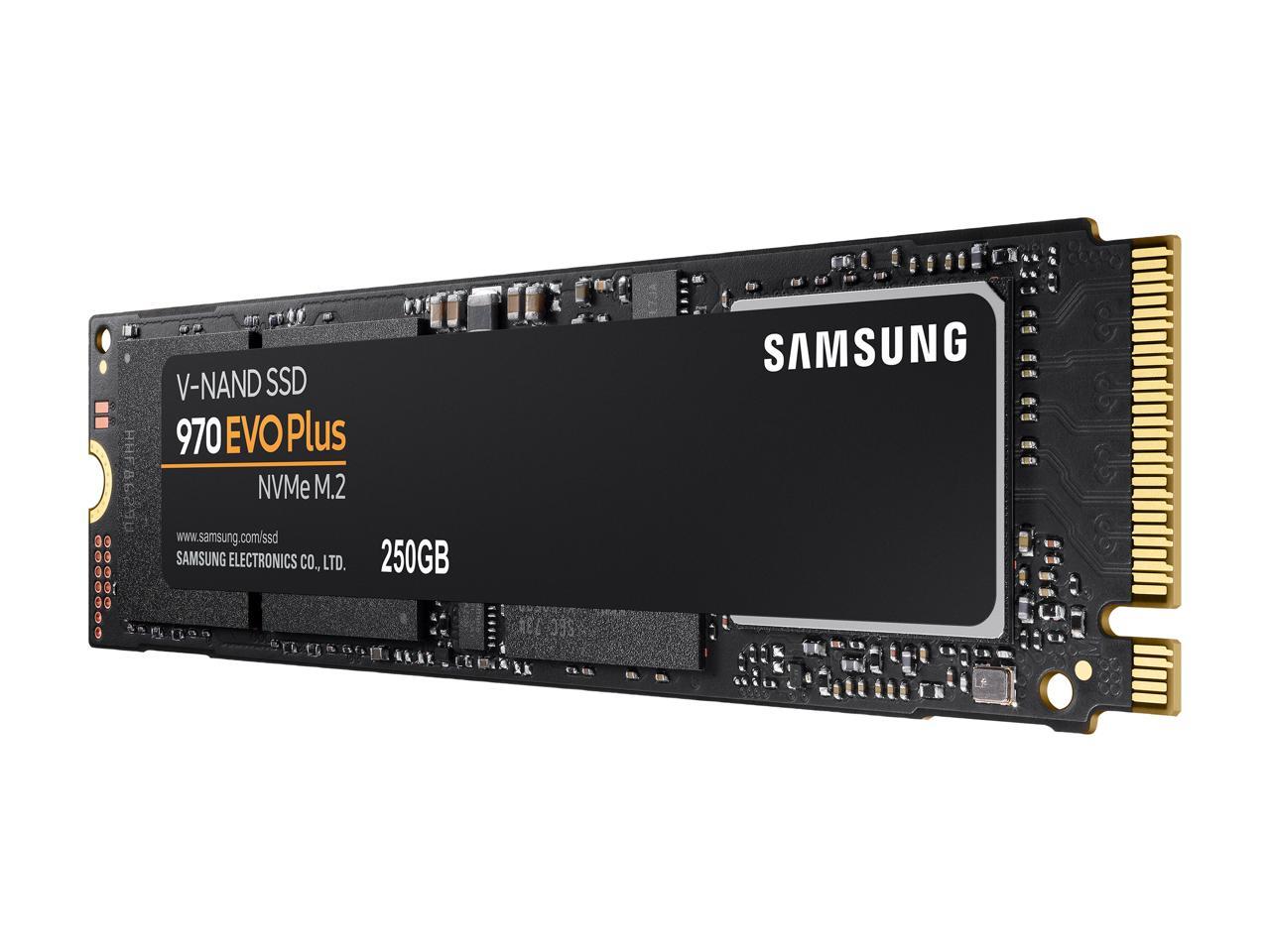

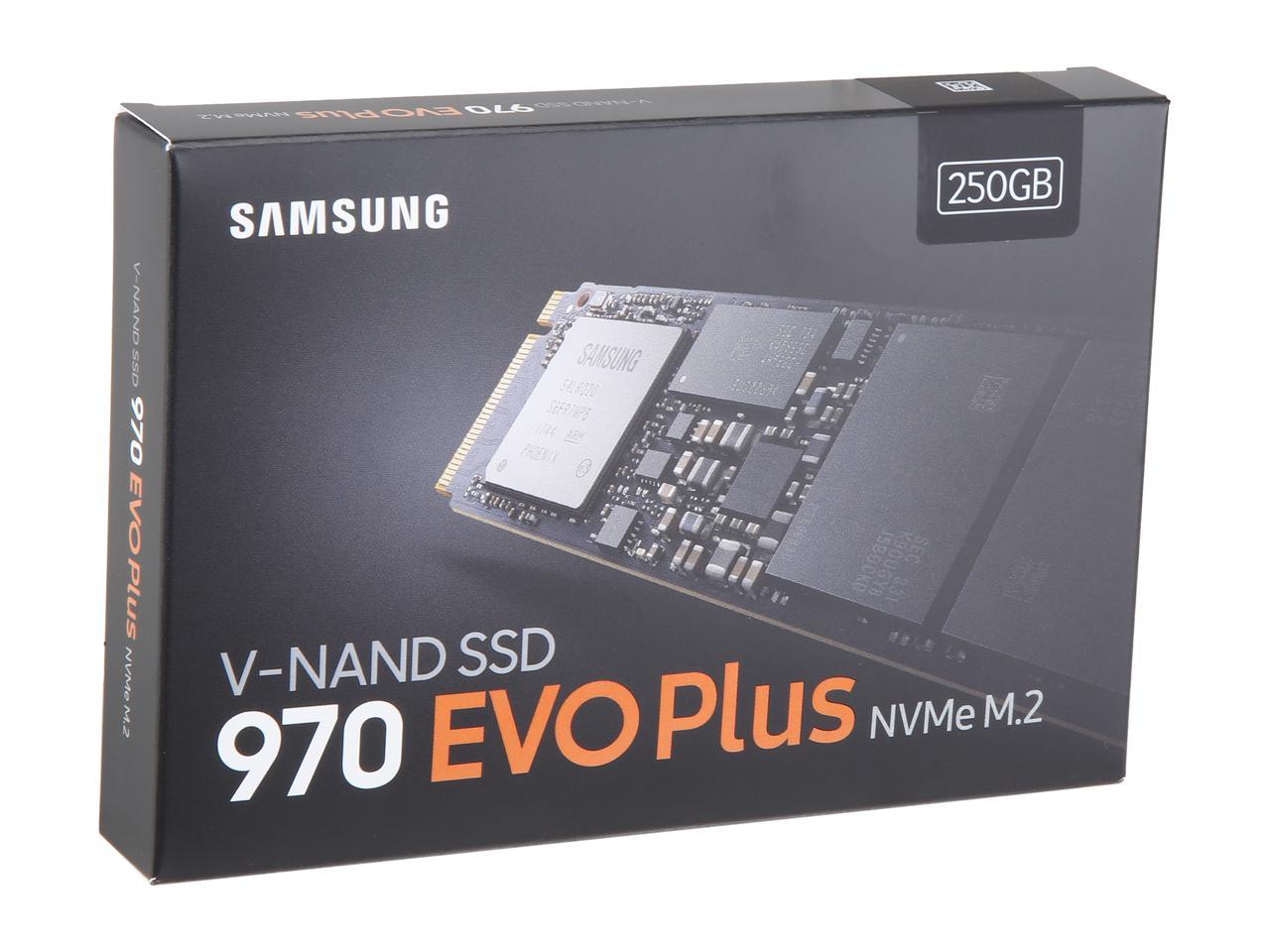

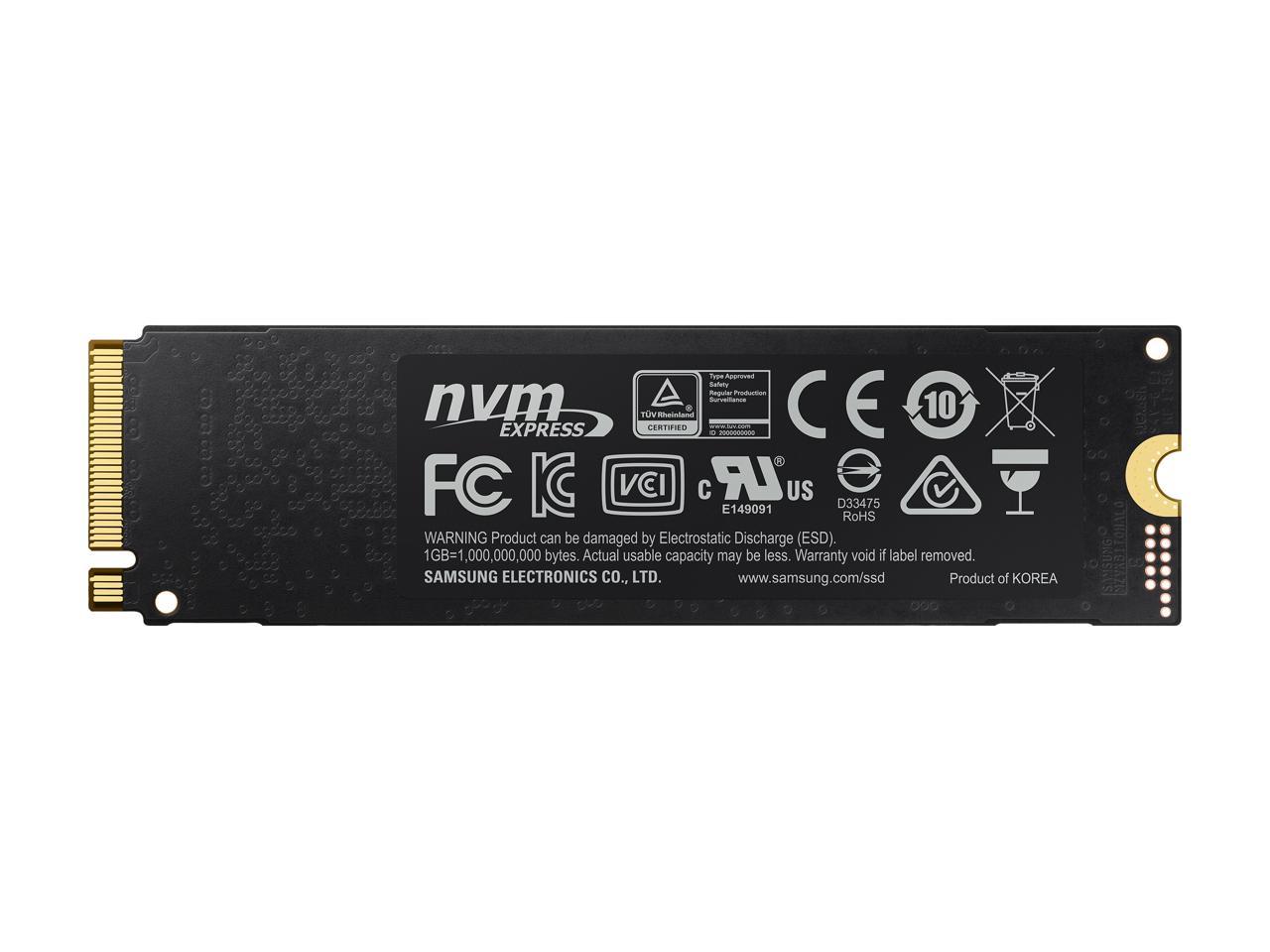

SAMSUNG 970 EVO PLUS M.2 2280 250GB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND Internal Solid State Drive (SSD) MZ-V7S250B/AM

$Quote1 Piece(MOQ)1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Description

$Quote1 Piece(MOQ)1 Piece(MOQ)

Description

  • INNOVATIVE V-NAND TECHNOLOGY: Powered by Samsung V-NAND Technology, the 970 EVO Plus SSD’s NVMe interface (PCIe Gen 3.0 x4 NVMe 1.3) offers enhanced bandwidth, low latency, and power efficiency ideal for tech enthusiasts, high end gamers, and 4K & 3D content designers
  • BREAKTHROUGH READ WRITE SPEEDS: Sequential read and write performance levels of up to 3,500 MB/s and 2,300 MB/s, respectively; Random Read (4KB, QD32): Up to 250,000 IOPS Random Read
  • PERFORMANCE OPTIMIZATION AND DATA SECURITY: Seamless cloning and file transfers with Samsung Magician Software, the ideal SSD management solution for performance optimization and data security with automatic firmware updates
  • SUPERIOR HEAT DISSIPATION: Samsung’s Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops
  • 150 TBW (Terabytes Written)

Additional information

Power Consumption (Active)

Average: 5W, Maximum: 8W (Burst mode)

Memory Components

V-NAND 3-bit MLC

Width

22.15mm

Max Shock Resistance

1 500G & 0.5 ms (Half sine)

Form Factor

M.2 2280

4KB Random Write

QD1: Up to 60 000 IOPS, QD32: Up to 550 000 IOPS

Max Sequential Read

Up to 3500 MB/s

Capacity

250GB

Brand

SamSung

Used For

Consumer

Depth

80.15mm

Encryption

AES 256-bit Full Disk Encryption TCG/Opal V2.0 Encrypted Drive (IEEE1667)

4KB Random Read

QD1: Up to 17 000 IOPS, QD32: Up to 250 000 IOPS

Model

MZ-V7S250B/AM

Series

Samsung 970 EVO PLUS

Features

Always Evolving SSD, Design Flexibility, Exceptional Endurance, Level up Performance, Reliability: 150 TBW, Samsung Magician, The new standard in sustainable performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality., Unparalleled Reliability

Cache

Samsung 512MB Low Power DDR4 SDRAM

Interface

PCIe 3.0 x4 NVMe 1.3

Power Consumption (Idle)

Max. 30 mW

MTBF

1 500 000 hours

Application

Desktop

Device Type

Internal Solid State Drive (SSD)

Products Status

New

Max Sequential Write

Up to 2300 MB/s

Height

2.38mm

Weight

8.00g

Operating Temperature

0C ~ +70C

Controller

Samsung Phoenix

Additional information

Power Consumption (Active)

Average: 5W, Maximum: 8W (Burst mode)

Memory Components

V-NAND 3-bit MLC

Width

22.15mm

Max Shock Resistance

1 500G & 0.5 ms (Half sine)

Form Factor

M.2 2280

4KB Random Write

QD1: Up to 60 000 IOPS, QD32: Up to 550 000 IOPS

Max Sequential Read

Up to 3500 MB/s

Capacity

250GB

Brand

SamSung

Used For

Consumer

Depth

80.15mm

Encryption

AES 256-bit Full Disk Encryption TCG/Opal V2.0 Encrypted Drive (IEEE1667)

4KB Random Read

QD1: Up to 17 000 IOPS, QD32: Up to 250 000 IOPS

Model

MZ-V7S250B/AM

Series

Samsung 970 EVO PLUS

Features

Always Evolving SSD, Design Flexibility, Exceptional Endurance, Level up Performance, Reliability: 150 TBW, Samsung Magician, The new standard in sustainable performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality., Unparalleled Reliability

Cache

Samsung 512MB Low Power DDR4 SDRAM

Interface

PCIe 3.0 x4 NVMe 1.3

Power Consumption (Idle)

Max. 30 mW

MTBF

1 500 000 hours

Application

Desktop

Device Type

Internal Solid State Drive (SSD)

Products Status

New

Max Sequential Write

Up to 2300 MB/s

Height

2.38mm

Weight

8.00g

Operating Temperature

0C ~ +70C

Controller

Samsung Phoenix
