- M.2 2280
- 2TB
- PCIe Gen3. X4, NVMe 1.3

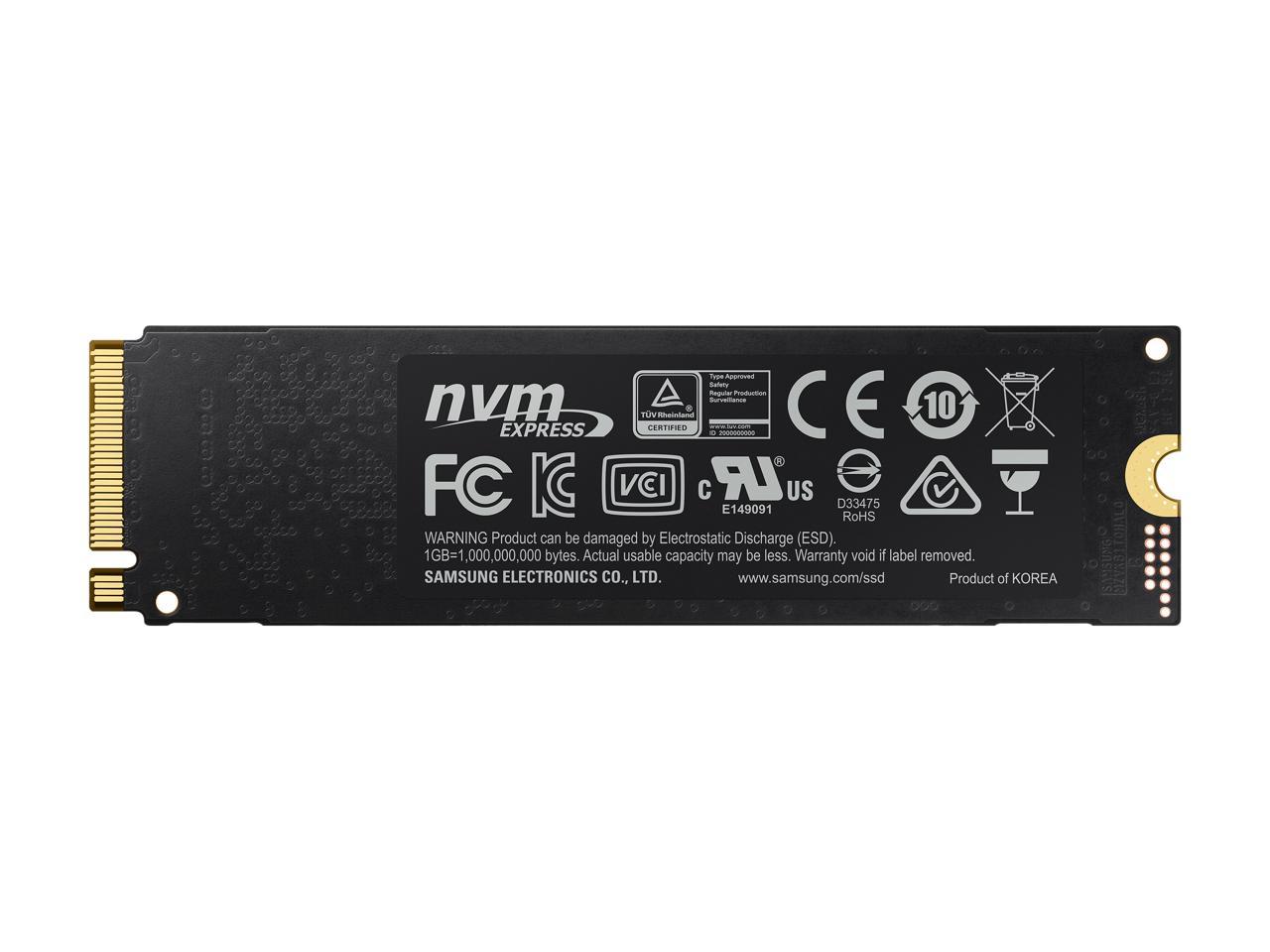

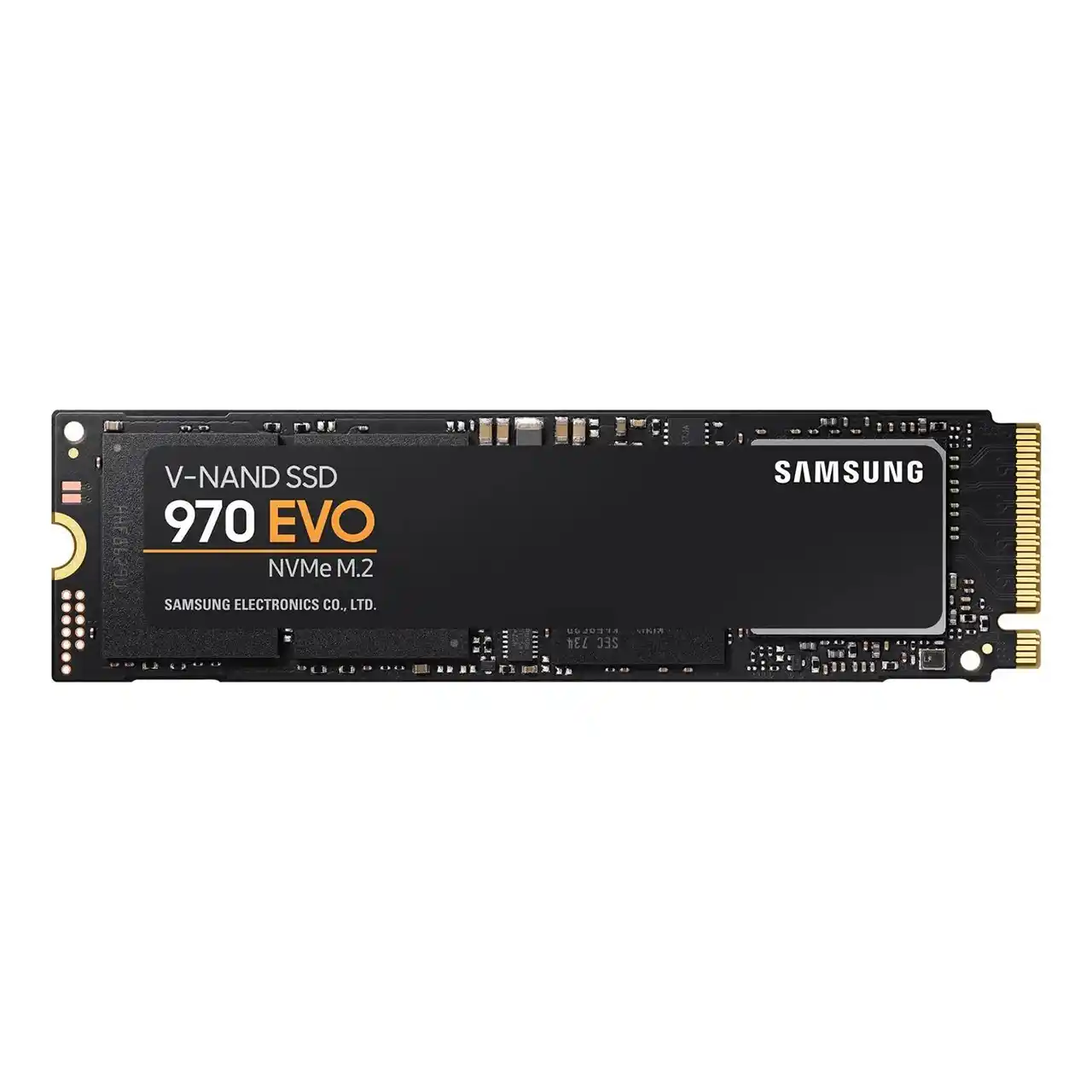

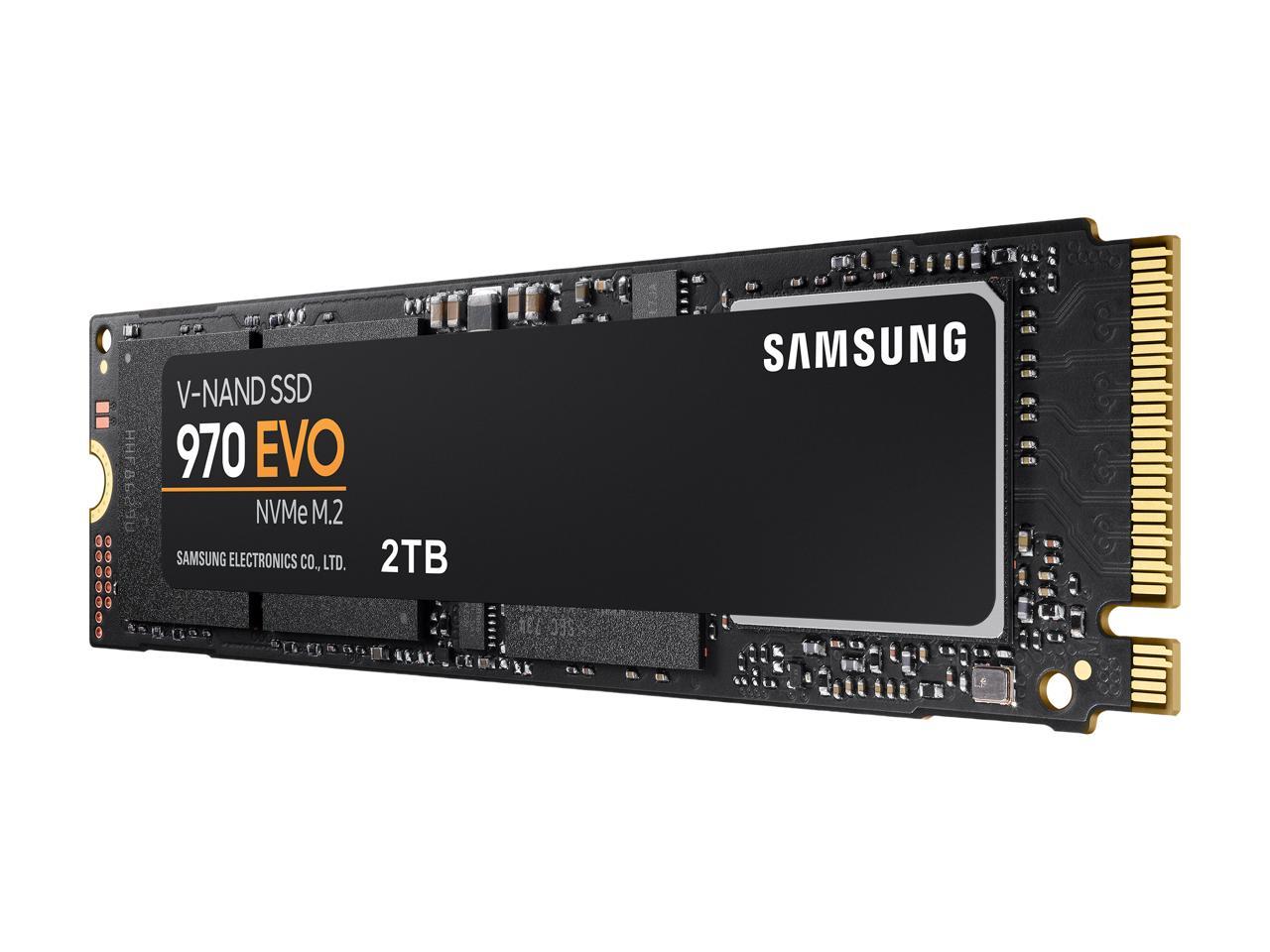

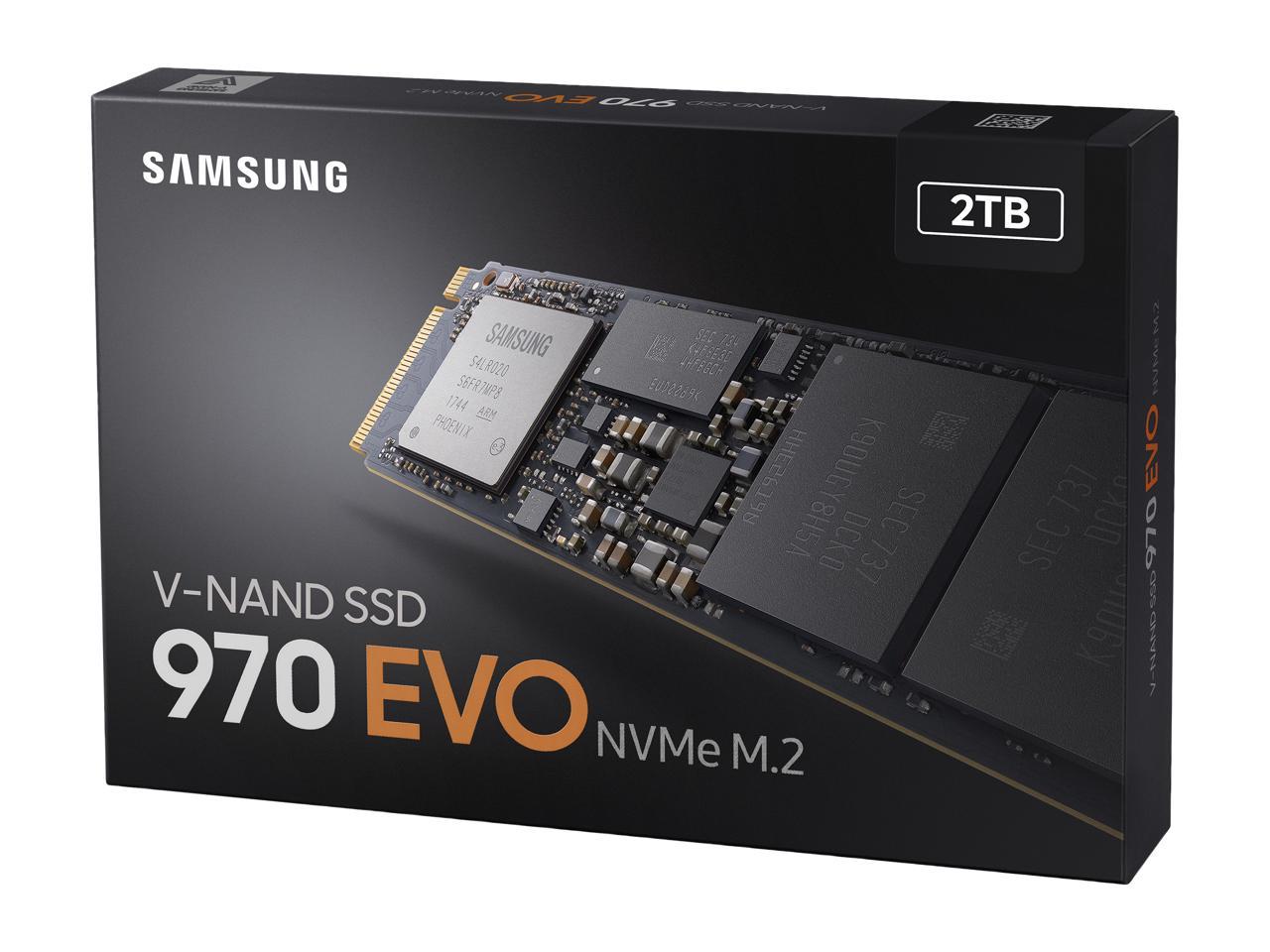

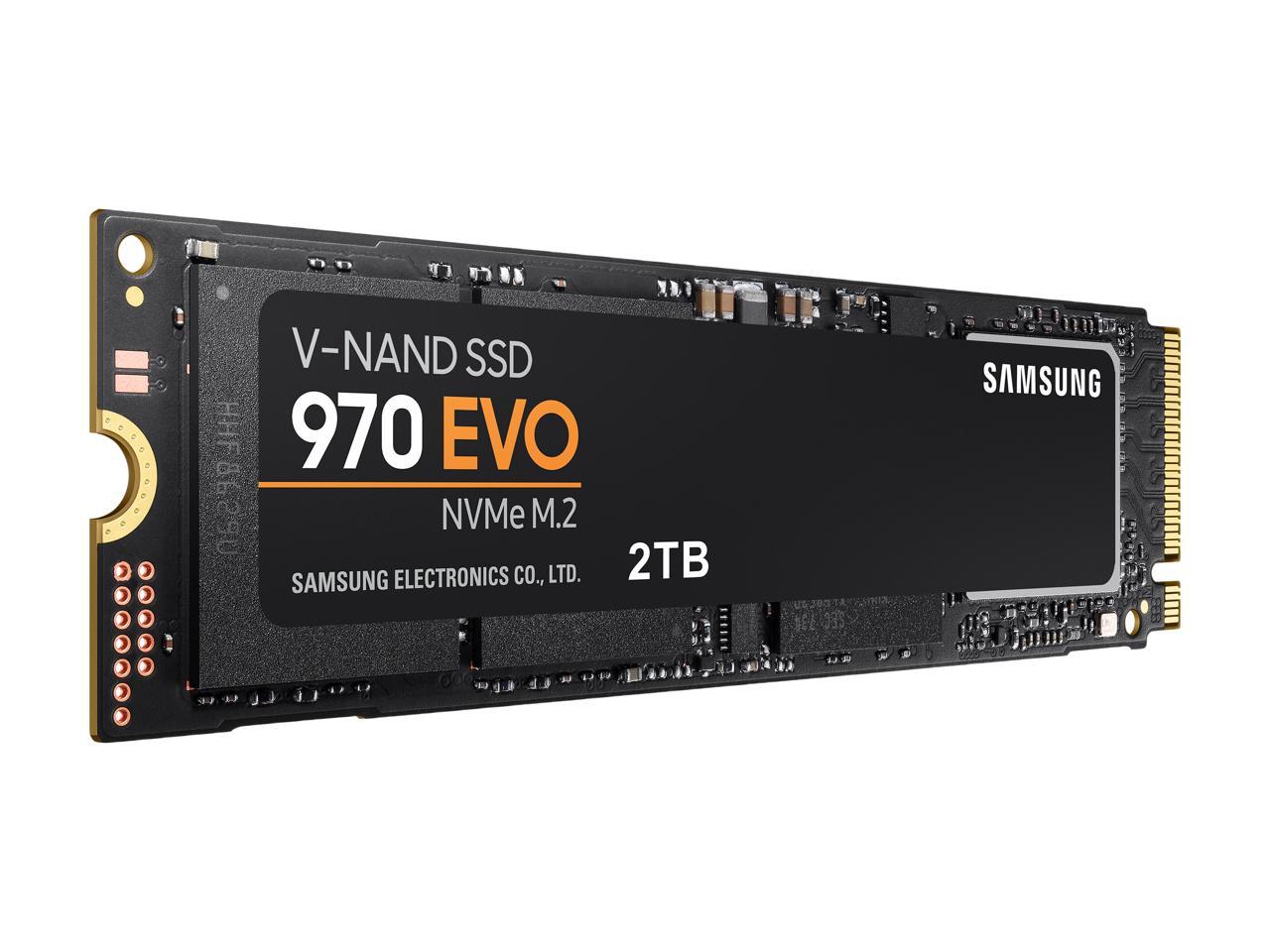

SAMSUNG 970 EVO M.2 2280 2TB PCIe Gen3. X4, NVMe 1.3 64L V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V7E2T0BW
$Quote1 Pieces ( MOQ )
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
| Brand | SamSung |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Samsung 970 EVO |
| Model | MZ-V7E2T0BW |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 2TB |
| Memory Components | 64L V-NAND MLC |
| Interface | PCIe Gen3. X4, NVMe 1.3 |
| Controller | Samsung Phoenix Controller |
| Cache | 2GB LPDDR4 DRAM |
| Max Sequential Read | Up to 3500 MBps |
| Max Sequential Write | Up to 2500 MBps |
| 4KB Random Read | QD1: Up to 15,000 IOPS, QD32: Up to 500,000 IOPS |
| 4KB Random Write | QD32: Up to 480,000 IOPS |
| MTBF | 1,500,000 hours |
| Power Consumption (Idle) | Max. 30 mW |
| Power Consumption (Active) | Average: 6W, Maximum: 10W (Burst mode) |
| Operating Temperature | 0??C ~ +70??C |
| Max Shock Resistance | 1,500G & 0.5 ms (Half sine) |
| Height | 2.30mm |
| Width | 22.10mm |
| Depth | 80.26mm |
| Weight | 7.94g |
