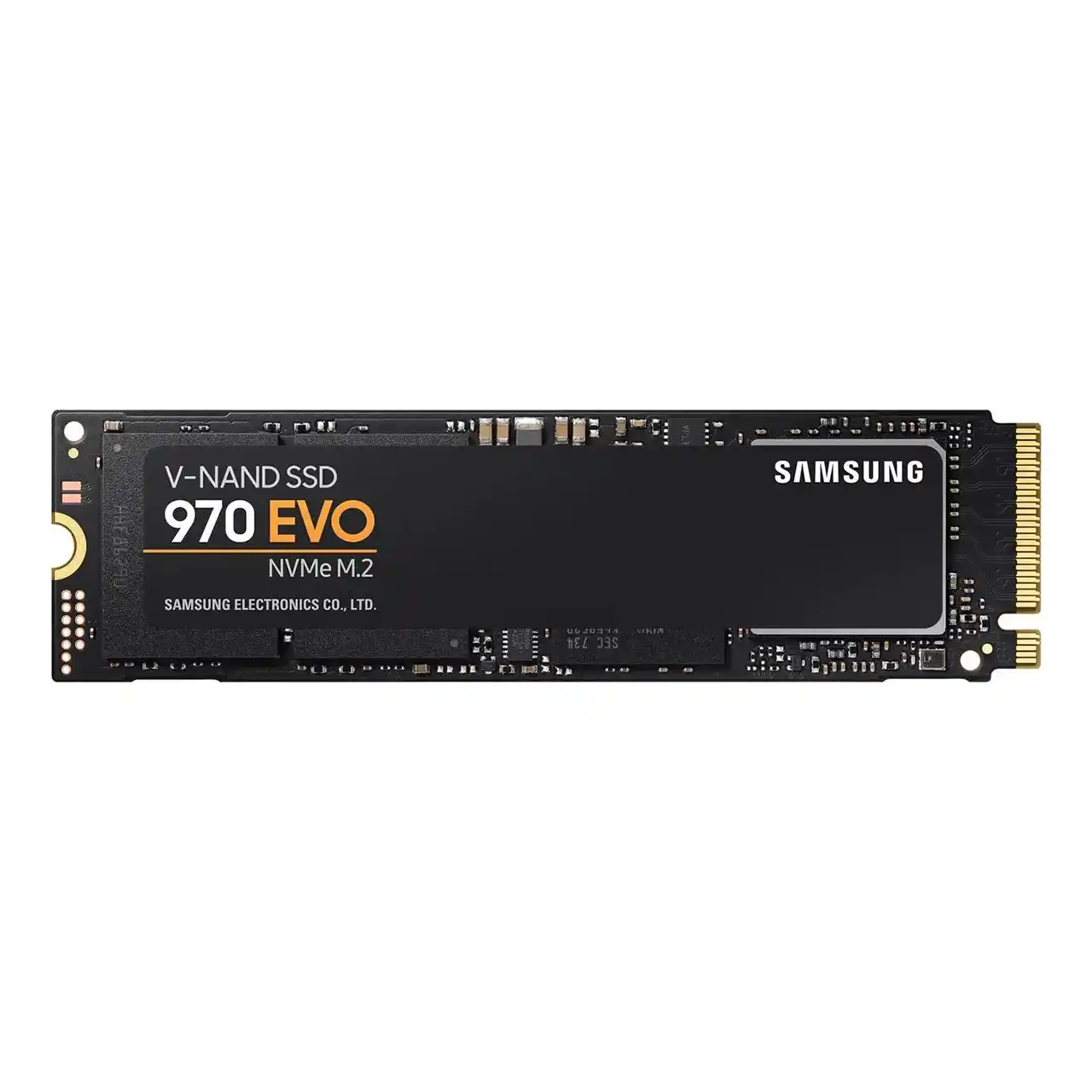

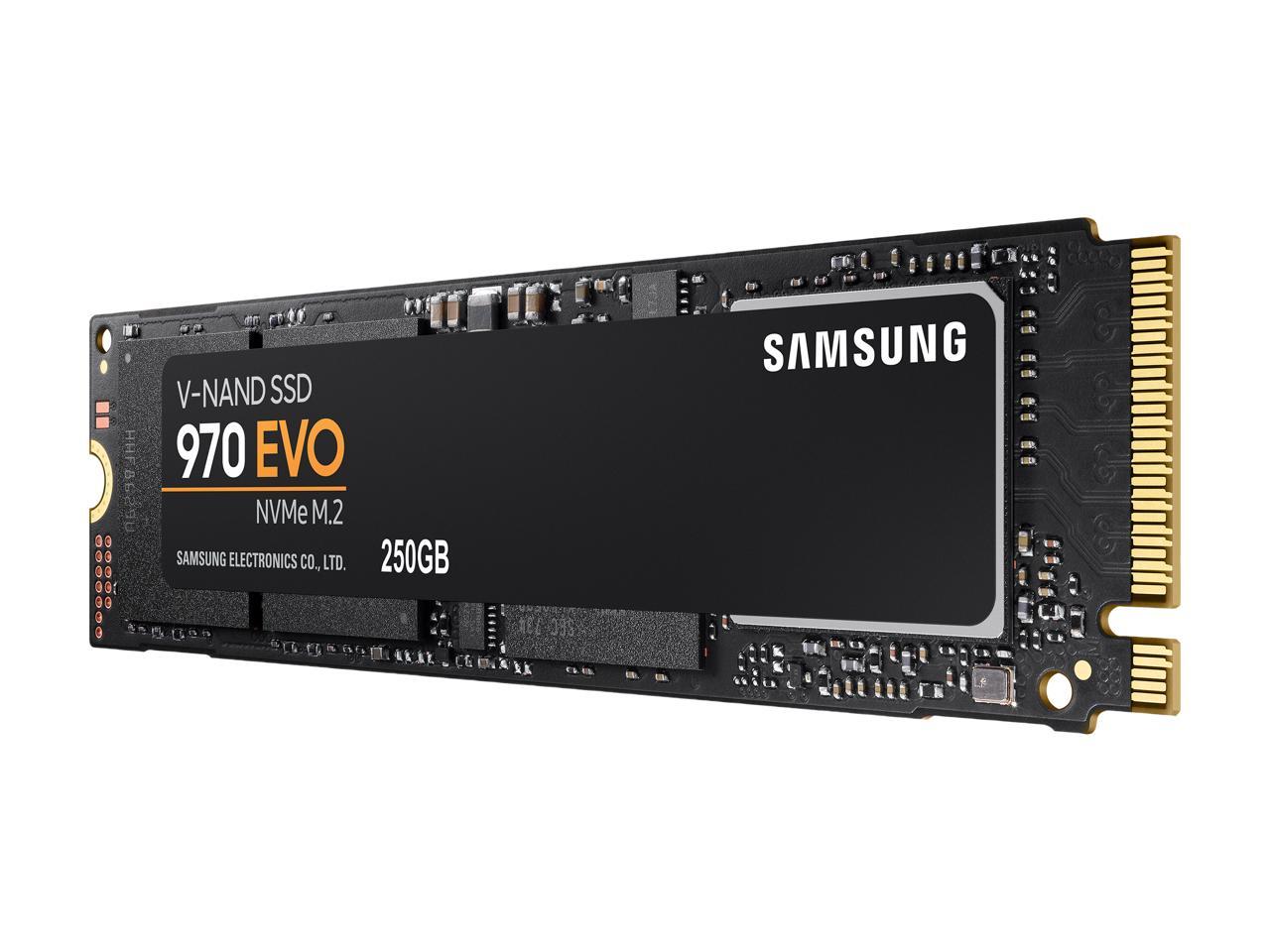

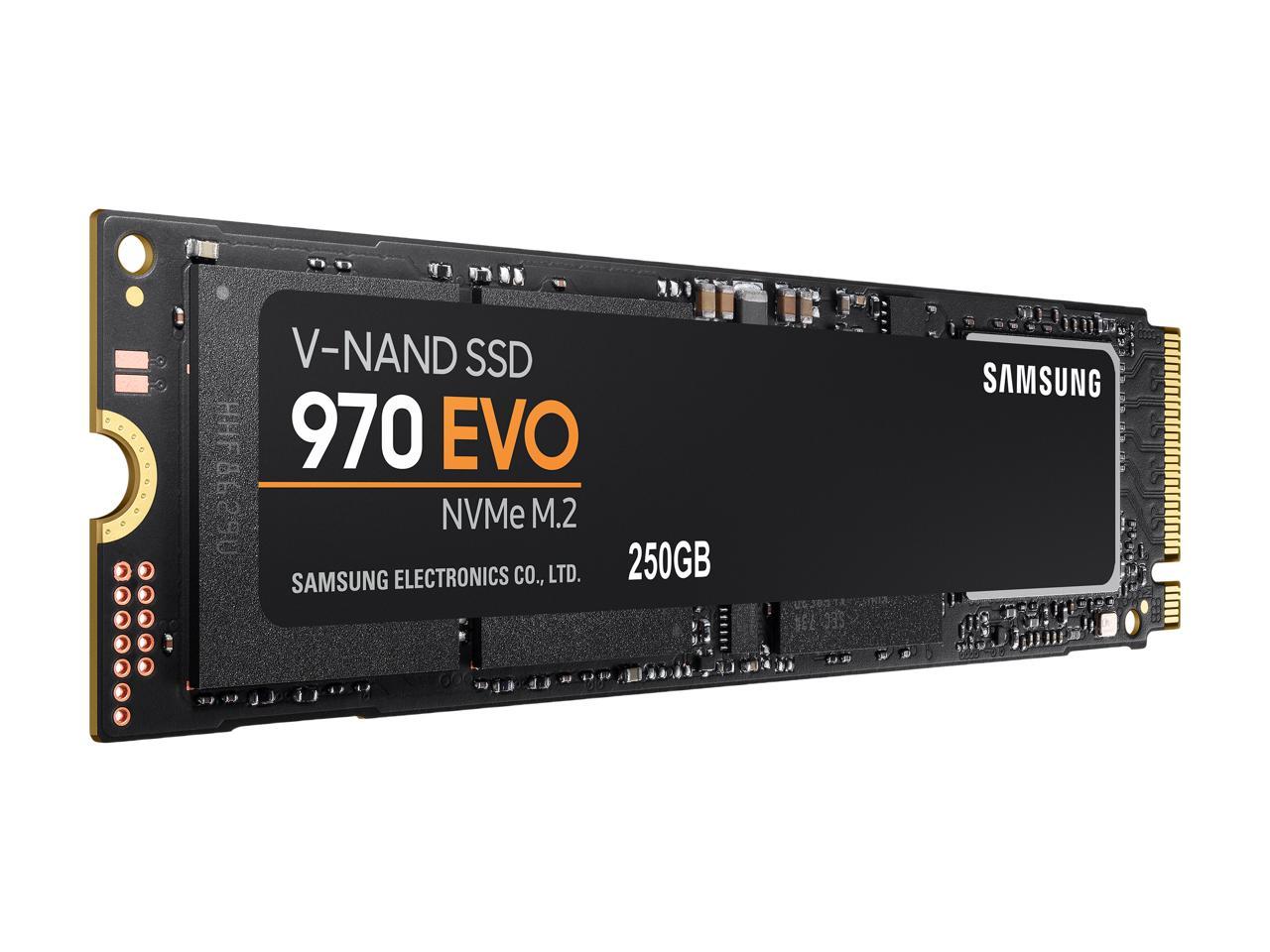

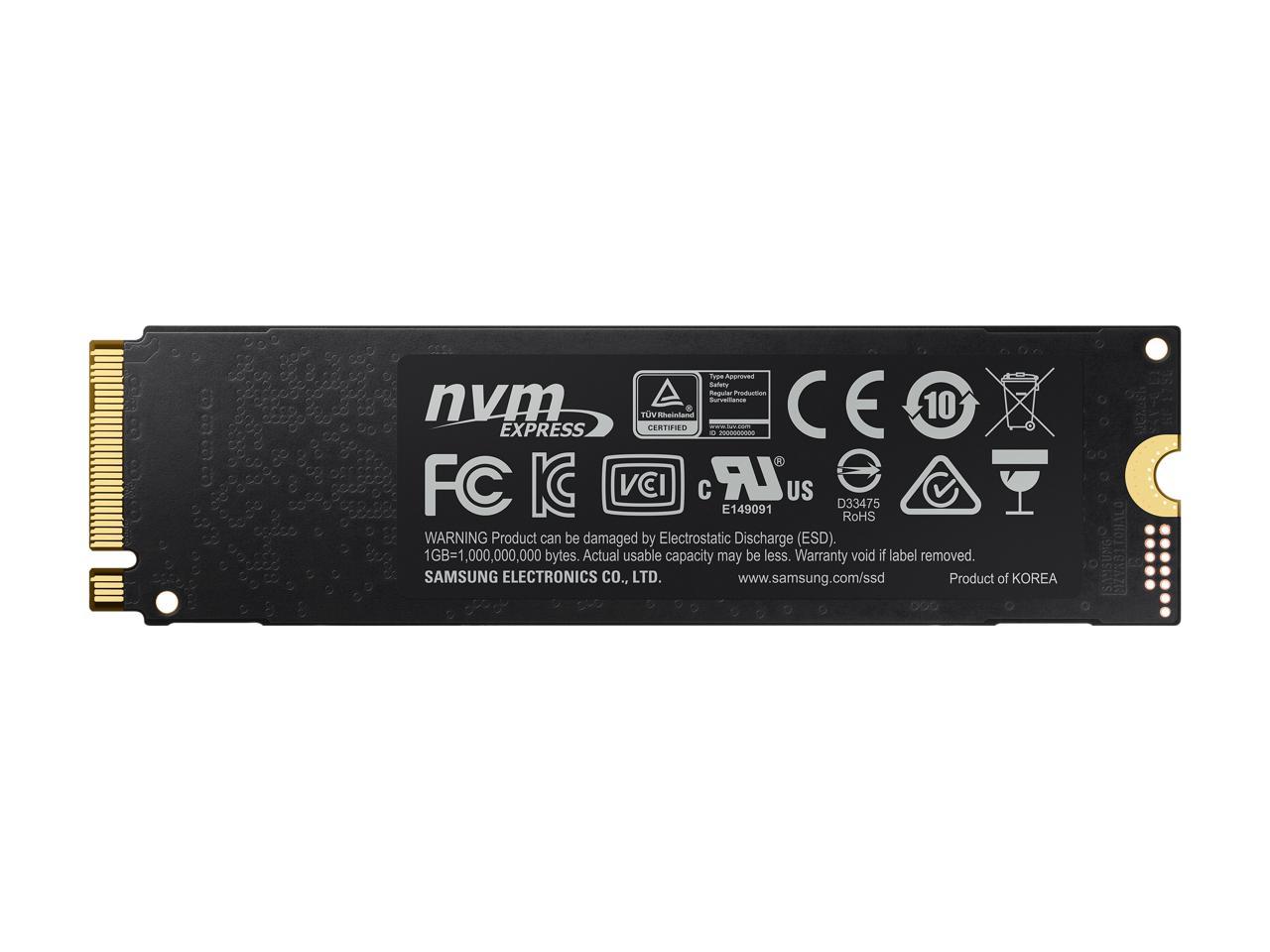

SAMSUNG 970 EVO M.2 2280 250GB PCIe Gen3. x4 , NVMe 1.3 64L V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V7E250BW

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Description

$Quote1 Piece(MOQ)

Description

  • M.2 2280
  • 250GB
  • PCIe Gen3. X4, NVMe 1.3

Additional information

Power Consumption (Active)

Average: 5.4W, Maximum: 10W (Burst mode)

Memory Components

64L V-NAND MLC

Width

22.10mm

Max Shock Resistance

1 500G & 0.5 ms (Half sine)

Form Factor

M.2 2280

4KB Random Write

QD1: Up to 50 000 IOPS, QD32: Up to 350 000 IOPS

Max Sequential Read

Up to 3400 MB/s

Capacity

250GB

Brand

SamSung

Used For

Consumer

Depth

80.26mm

4KB Random Read

QD1: Up to 15 000 IOPS, QD32: Up to 200 000 IOPS

Model

MZ-V7E250BW

Series

Samsung 970 EVO

Features

150 TBW, AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive), Device Sleep Mode Support: Yes, GC (Garbage Collection): Auto Garbage Collection Algorithm, Management SW: Magician Software for SSD management, S.M.A.R.T. Support: Supported, Temperature proof: Yes, TRIM Support: Supported

Cache

512MB LPDDR4 DRAM

Interface

PCIe 3.0×4 NVMe 1.3

Power Consumption (Idle)

Max. 30 mW

MTBF

1 500 000 hours

Application

Desktop

Device Type

Internal Solid State Drive (SSD)

Products Status

New

Max Sequential Write

Up to 1500 MB/s

Height

2.30mm

Weight

7.94g

Operating Temperature

0C ~ +70C

Controller

Samsung Phoenix Controller

Additional information

Power Consumption (Active)

Average: 5.4W, Maximum: 10W (Burst mode)

Memory Components

64L V-NAND MLC

Width

22.10mm

Max Shock Resistance

1 500G & 0.5 ms (Half sine)

Form Factor

M.2 2280

4KB Random Write

QD1: Up to 50 000 IOPS, QD32: Up to 350 000 IOPS

Max Sequential Read

Up to 3400 MB/s

Capacity

250GB

Brand

SamSung

Used For

Consumer

Depth

80.26mm

4KB Random Read

QD1: Up to 15 000 IOPS, QD32: Up to 200 000 IOPS

Model

MZ-V7E250BW

Series

Samsung 970 EVO

Features

150 TBW, AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive), Device Sleep Mode Support: Yes, GC (Garbage Collection): Auto Garbage Collection Algorithm, Management SW: Magician Software for SSD management, S.M.A.R.T. Support: Supported, Temperature proof: Yes, TRIM Support: Supported

Cache

512MB LPDDR4 DRAM

Interface

PCIe 3.0×4 NVMe 1.3

Power Consumption (Idle)

Max. 30 mW

MTBF

1 500 000 hours

Application

Desktop

Device Type

Internal Solid State Drive (SSD)

Products Status

New

Max Sequential Write

Up to 1500 MB/s

Height

2.30mm

Weight

7.94g

Operating Temperature

0C ~ +70C

Controller

Samsung Phoenix Controller
