- M.2 2280
- 1TB
- PCI-Express 3.0 x4

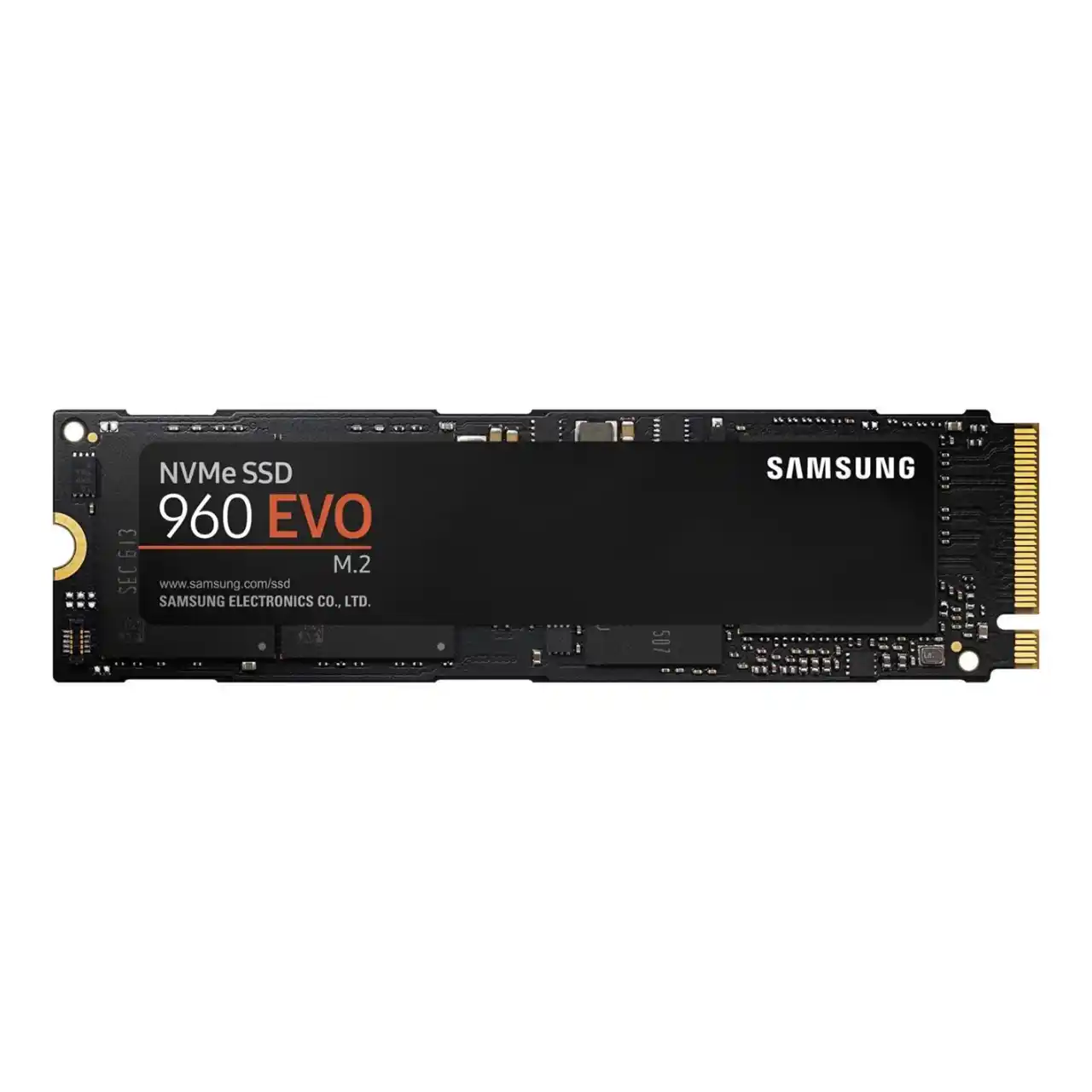

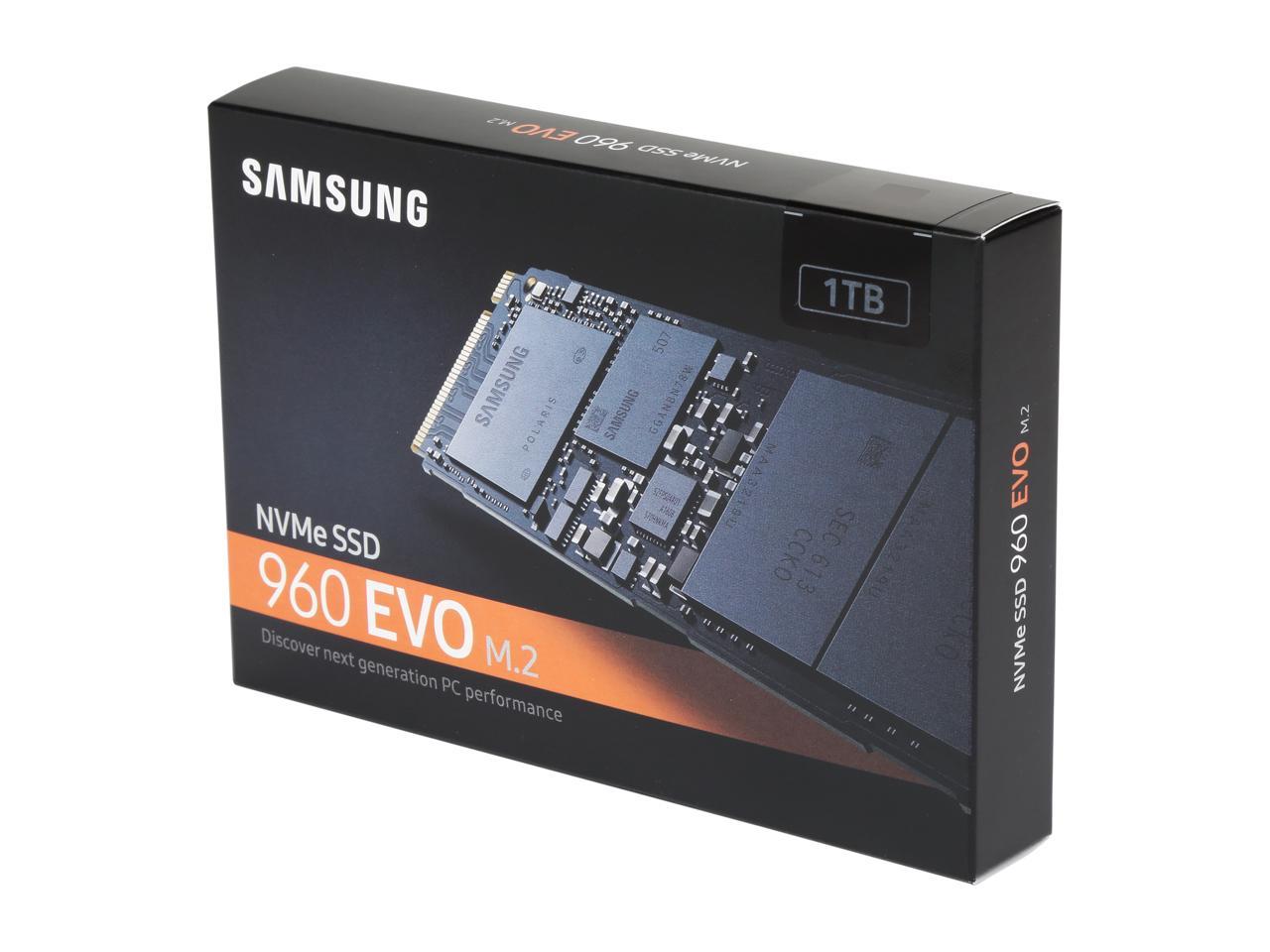

SAMSUNG 960 EVO M.2 1TB NVMe PCI-Express 3.0 x4 Internal Solid State Drive (SSD) MZ-V6E1T0BW
$Quote1 Pieces ( MOQ )
Brand | SamSung |
---|---|
Products Status | New |
Application | Desktop |
Series | Samsung 960 EVO |
Model | MZ-V6E1T0BW |
Device Type | Internal Solid State Drive (SSD) |
Used For | Consumer |
Form Factor | M.2 2280 |
Capacity | 1TB |
Memory Components | 3D NAND |
Interface | PCI-Express 3.0 x4 |
Controller | Samsung Polaris controller |
Cache | 1024MB |
Max Sequential Read | Up to 3200 MBps |
Max Sequential Write | Up to 1900 MBps |
4KB Random Read | Up to 14,000 IOPS (4KB, QD1), Up to 380,000 IOPS (4KB, QD32) |
4KB Random Write | Up to 360,000 IOPS (4KB, QD32), Up to 50,000 IOPS (4KB, QD1) |
MTBF | 1,500,000 hours |
Features | Device Sleep Mode Support: 5mW (L1.2), Encryption Support: AES 256-bit for User Data EncryptionTCG Opal Family Spec and eDrive (IEEE1667) to be supported by FW update, GC (Garbage Collection): Auto Garbage Collection Algorithm, S.M.A.R.T Support: S.M.A.R.T Supported, TRIM Support: TRIM Supported |
Power Consumption (Idle) | 1.2W |
Power Consumption (Active) | 5.7W |
Operating Temperature | 0??C ~ +70??C |
Max Shock Resistance | 1500G, duration 0.5m sec, 3 axis |
Height | 2.38mm |
Width | 22.15mm |
Depth | 80.15mm |
Weight | 8.20g |
