* NOTE: Image may not exactly match the product

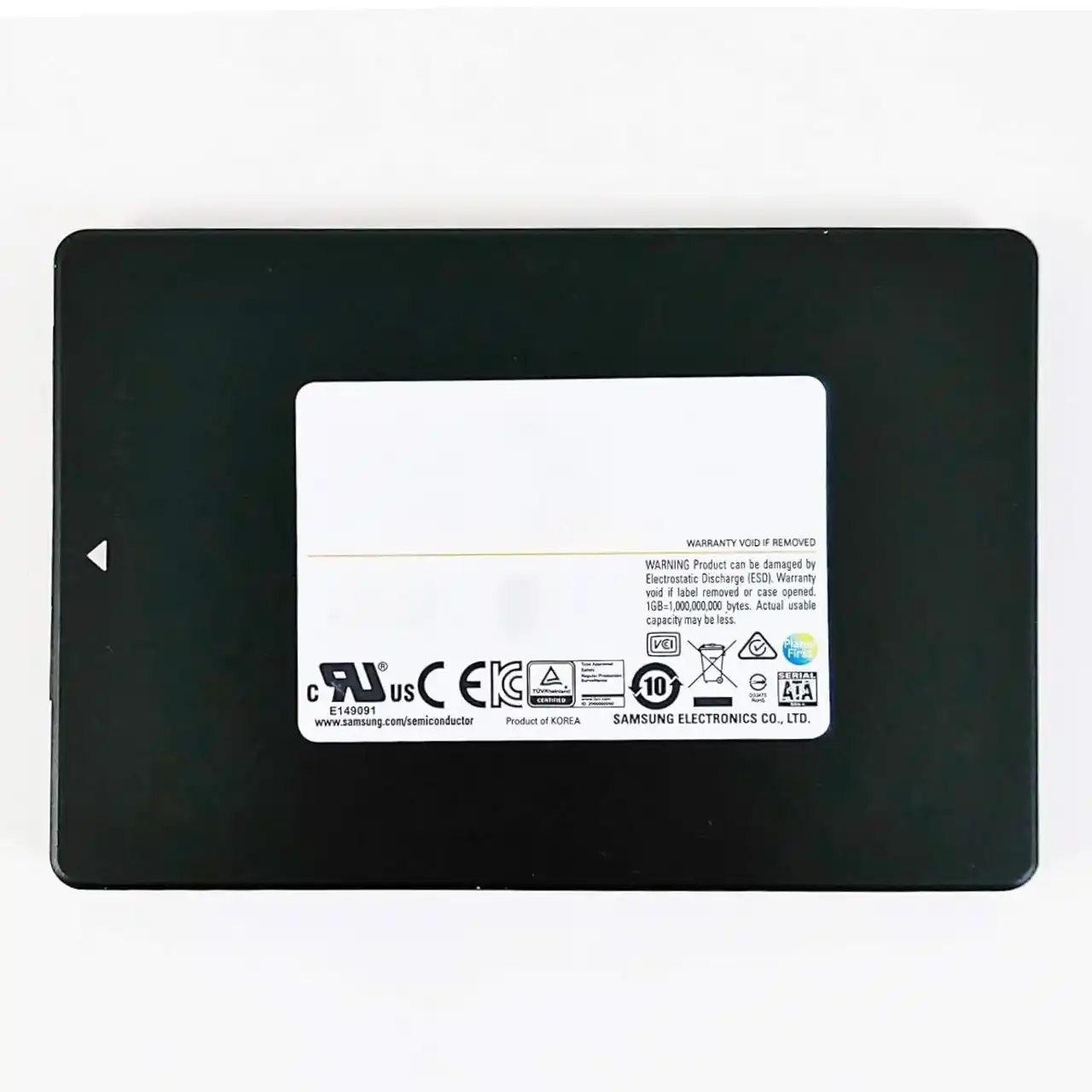

MZ-7LH4800 Samsung PM883 480GB SATA 6Gbps 2.5″ Internal SSD MZ7LH480HAHQ

$Quote1 Piece(MOQ)1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Main Specifications:

  • Product Description : SAMSUNG Pm883 MZ7LH480HAHQ – Solid State Drive – 480 Gb – Sata 6gb/s
  • Type : Solid State Drive – Internal
  • Capacity : 480 Gb
  • Hardware Encryption : Yes
  • Encryption Algorithm : 256-bit Aes
  • Nand Flash Memory Type : 3d Triple-level Cell (tlc)
  • Form Factor : 2.5
  • Interface : Sata 6gb/s
  • Data Transfer Rate : 600 Mbps
  • Features : Native Command Queuing (ncq), Trim Support, Power Disable Pin (pin3)
  • Dimensions (wxdxh) : 2.7 In X 3.9 In X 0.3 In
  • Weight : 2.47 Oz

    Extended Specifications :
  • Device Type : Solid State Drive – Internal
  • Capacity : 480 Gb
  • Hardware Encryption : Yes
  • Encryption Algorithm : 256-bit Aes
  • Nand Flash Memory Type : 3d Triple-level Cell (tlc)
  • Form Factor : 2.5
  • Interface : Sata 6gb/s
  • Bytes Per Sector : 512
  • Features : Native Command Queuing (ncq), Trim Support, Power Disable Pin (pin3)
  • Width : 2.7 In
  • Depth : 3.9 In
  • Height : 0.3 In
  • Weight : 2.47 Oz

    Performance :
  • Drive Writes Per Day (dwpd) : 1.3
  • Ssd Endurance : 683 Tb
  • Data Transfer Rate Details Serial Ata : 600 Mb/s
  • Drive Transfer Rate : 600 Mbps (external)
  • Internal Data Rate : 550 Mbps (read) / 520 Mbps (write)
  • 4kb Random Read : 98000 Iops
  • 4kb Random Write : 28000 Iops
  • Average Latency : 40 Μs
  • Reliability :
  • Mtbf : 2,000,000 Hours
  • Non-recoverable Errors : 1 Per 10^17

    Expansion & Connectivity :

  • Interfaces : 1 X Sata 6gb/s
  • Compatible Bay : 2.5

    Environmental Parameters :

  • Min Operating Temperature : 32 °f
  • Max Operating Temperature : 158 °f
  • Min Storage Temperature : -40 °f
  • Max Storage Temperature : 185 °f
  • Humidity Range Operating : 5 – 95% (non-condensing)
  • Shock Tolerance (non-operating) : 1500 G @ 0.5 Ms Half-sine
  • Vibration Tolerance (non-operating) : 20 G @ 20-2000 Hz
Power Consumption (Active)

3.45W

Sustained Sequential Write

Up to 520Mbps

Form Factor

2.5"

4KB Random Write

Up to 25 000 IOPS

Capacity

480GB

Brand

SamSung

Used For

Enterprise

4KB Random Read

Up to 98 000 IOPS

Model

MZ-7LH4800

Series

Samsung PM883

Interface

PCIe 4.0×4 NVMe

Sustained Sequential Read

550Mbps

MTBF

2 000 000 hours

Application

Server

Device Type

External Solid State Drive (SSD)

Products Status

New

Operating Temperature

0C ~ +40C
