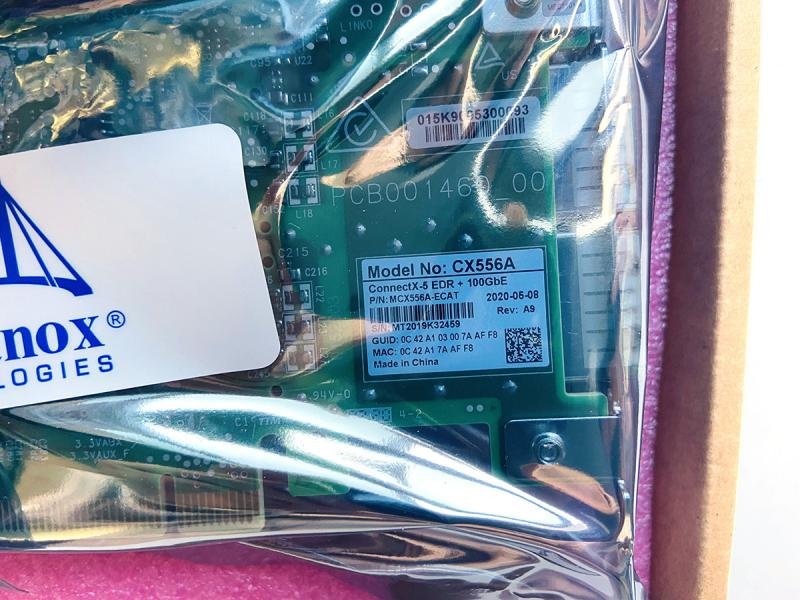

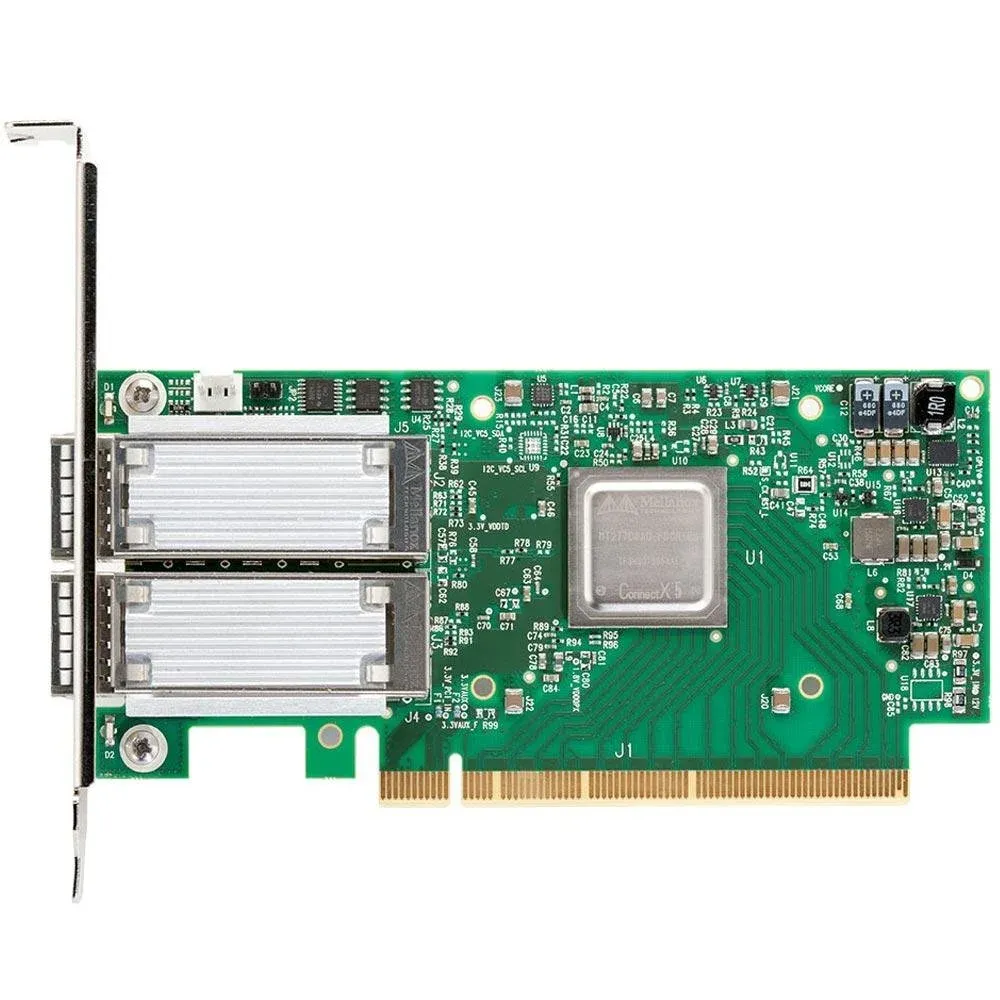

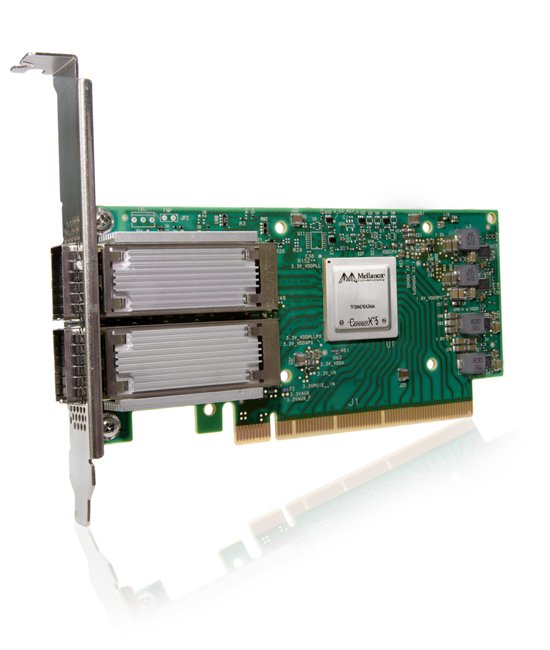

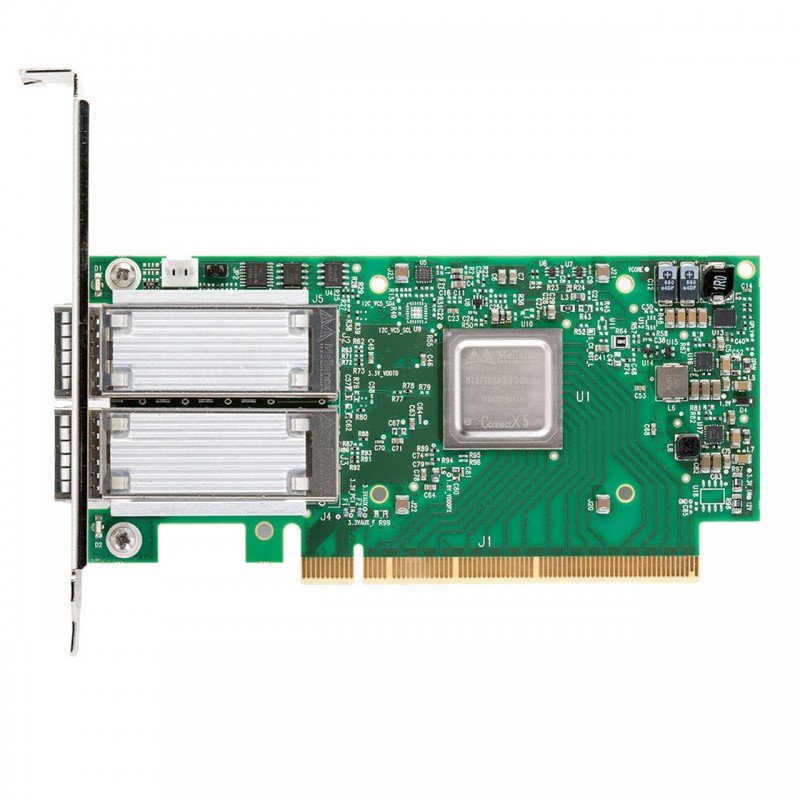

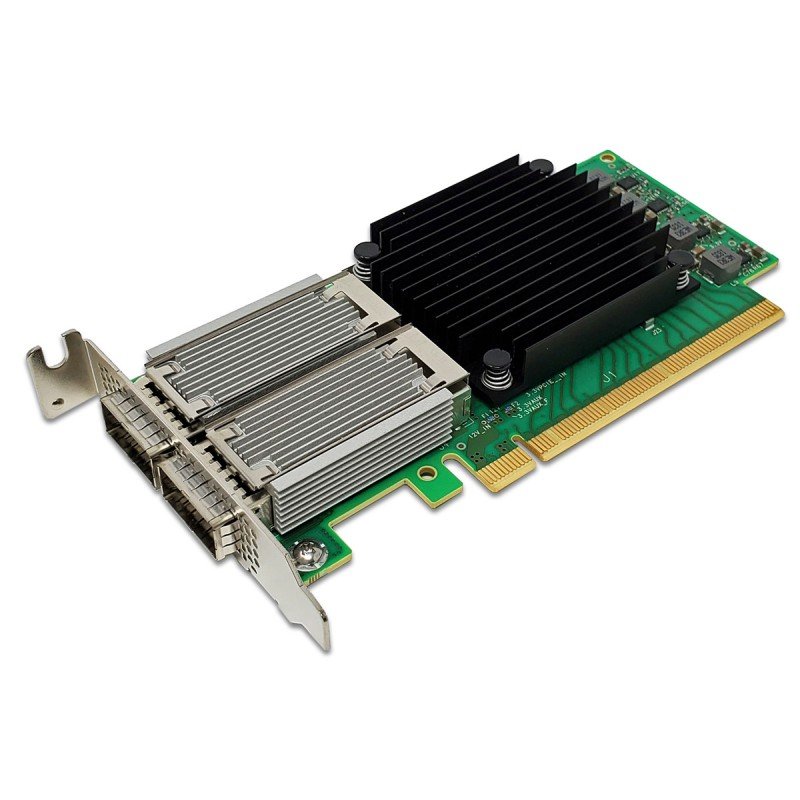

MELLANOX MCX556A-ECAT Connectx-5 Vpi Adapter Card Edr Ib (100gb/s) And 100gbe Dual-port Qsfp28 Pcie3.0 X16 Rohs R6.
Main Specifications
Device Type: Network Adapter
Form Factor: Plug-in Card
Interface (bus) Type: Pci Express 3.0 X16
Pci Specification Revision: Pcie 3.0
Ports: 100gb Ethernet / 100gb Infiniband Qsfp28 X 2
Data Link Protocol: Gige, 10 Gige, 40 Gigabit Lan, 100 Gigabit Ethernet, 25 Gigabit Lan, 50 Gigabit Lan, 100 Gigabit Infiniband.
Data Transfer Rate: 100 Gbps
Network / Transport Protocol: Tcp/ip, Udp/ip, Iscsi
Compliant Standards: Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.3az, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ibta 1.3, Ieee 802.1qbg, Ieee 1588v2, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by
Dimensions (wxdxh): 5.6 In X 2.7 In
