Product SKUs

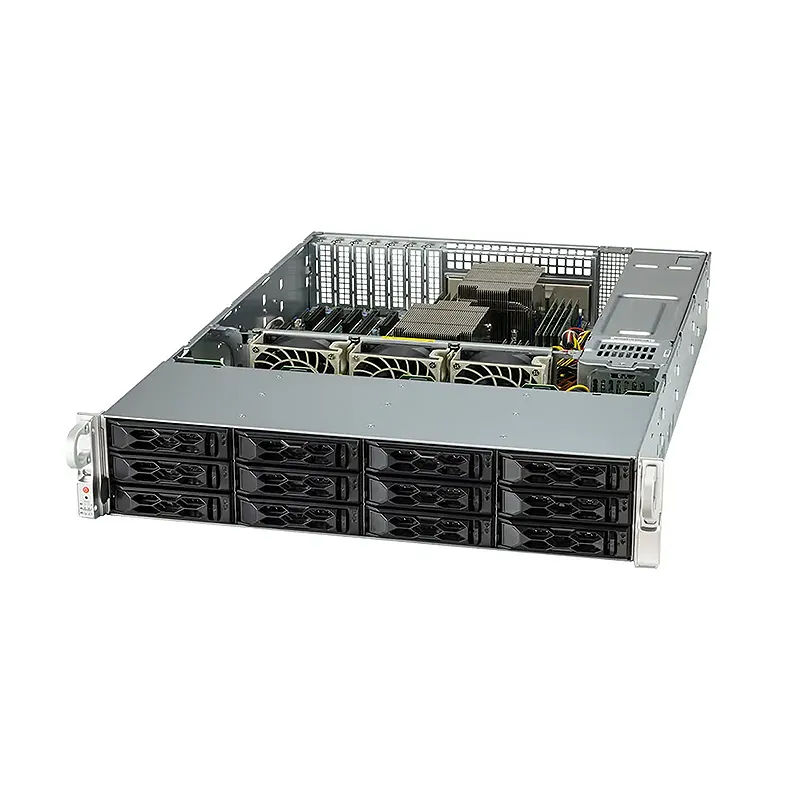

- A+ ServerAS -2024S-TR
Motherboard
- Super H12DSi-N6
Processor
- CPU
Dual Socket SP3
AMD EPYC 7002/7003 Series Processors - Core Count
Up to 64C/128T; Up to 256MB Cache per CPU
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM - Memory Voltage
1.2V
On-Board Devices
- Chipset
AMD SP3
- Network Connectivity
2 RJ45 1GbE
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 1 GbE LAN ports - USB
2 USB 2.0 ports(rear)
2 USB 3.0 ports(rear) - Video
1 VGA port
- DOM
2 Super DOM (Disk on Module) ports
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
2U Rackmount
- Model
CSE-LA26TS-R920LPP1
Dimensions and Weight
- Height
3.5″ (89 mm)
- Width
17.2″ (437 mm)
- Depth
25.5″ (648 mm)
- Package
11.4″ (H) x 26.7″ (W) x 34.5″ (D)
- Weight
Gross Weight: 60 lbs (27.2 kg)
Net Weight: 33.5 lbs (15.2 kg) - Available Color
Silver
Front Panel
- LED
HDD activity LED
Information LED
Network activity LEDs
Power Fail LED
Power status LED - Buttons
Power On/Off button
Reset button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 3 PCIe 4.0 x8 LP slots 3 PCIe 4.0 x16 LP slots
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 12 bays 4 front hot-swap 3.5″ NVMe drive bays 8 front hot-swap 3.5″ SAS*/SATA drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ SAS/SATA drive bays
(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
1 M.2 NVMe slot (M-key 2280/22110)
System Cooling
- Fans
3 Middle 80mm Fan(s)
- Air Shroud
1 Clear Plastic Air Shroud
Power Supply
- 2x 920W
2x 920W Redundant Platinum Level (94%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
920W: 100-127Vac
920W: 100-127Vac / 50-60Hz
920W: 200-240Vac
920W: 200-240Vdc / 50-60Hz
920W: 200-240Vac / 50-60Hz
+12V
Max: 75A / Min: 0A (100Vac-127Vac)
Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
