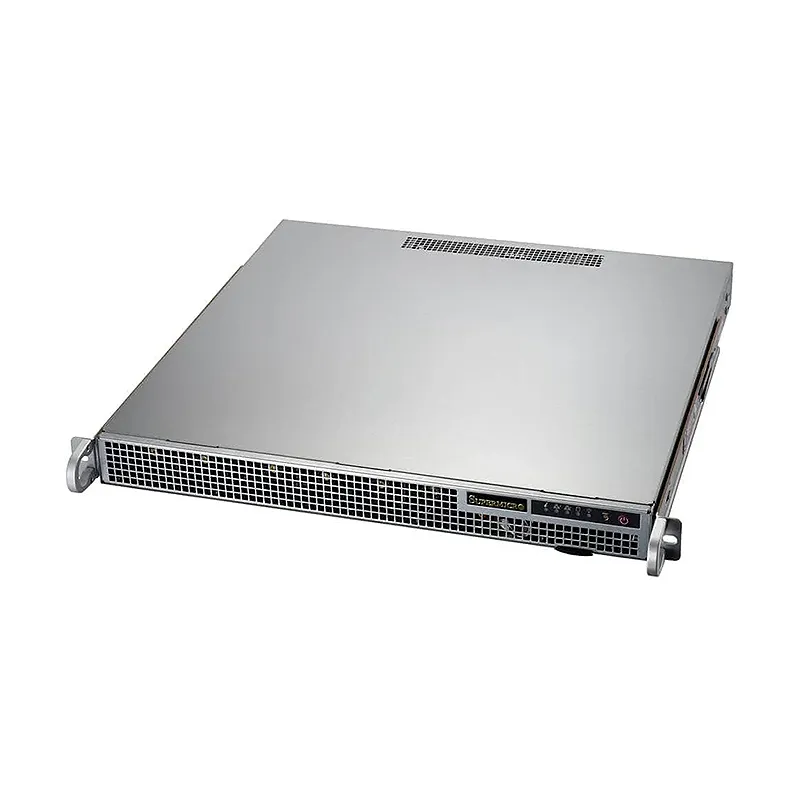

* NOTE: Image may not exactly match the product

Mainstream A+ Server AS -1015A-MT

1U UP Mainstream with up to 4 internal 2.5″ SATA bays and 1 PCIe 5.0 slot

$Quote1 Piece(MOQ)

SKU AS -1015A-MT Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • A+ ServerAS -1015A-MT

Motherboard

  • Super H13SAE-MF

Processor

  • CPU
    Single processor(s)
    AMD EPYC 4004 or AMD Ryzen 7000 / 9000 Series Processors
  • Core Count
    Up to 16C/32T

GPU

  • Max GPU Count
    Up to 1 single-width GPU
  • Supported GPU
    NVIDIA PCIe: RTX 4000 Ada Generation, RTX A4000, L4, A2
    AMD PCIe: Radeon Pro W7500
  • CPU-GPU Interconnect
    PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

  • Memory
    Slot Count: 4 DIMM slots
    Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
  • Memory Voltage
    1.1V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1 support
  • NVMe
    NVMe; RAID 0/1 support(Native)
  • Chipset
    AMD B650
  • Network Connectivity
    1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    2 RJ45 1GbE with Intel I210-AT

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    3 Type-A ports(Rear)
    2 Type-C ports(Rear)
    1 Type-C port(Rear)
  • Video
    1 VGA port
    1 DisplayPort 1.4 port
    1 HDMI 2 port
  • Audio
    Rear Audio
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash

Management

  • Power configurations
    ACPI 6.0 Power Management

Chassis

  • Form Factor
    1U
  • Model
    CSE-514-505

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    16.9″ (429 mm)
  • Package
    8″ (H) x 27″ (W) x 24″ (D)
  • Weight
    Gross Weight: 16 lbs (7.26 kg)
  • Available Color
    Silver

Front Panel

  • LED
    Fan Fail/System Over Heat LED
    HDD activity LED
    Network Activity LEDs
    Power status LED
  • Buttons
    Power On/Off button
    System Reset button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 1 PCIe 5.0 x16 FHHL slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 1 bay 1 internal fixed 3.5″ SATA drive bay
    Option A: Total 4 bays 4 internal fixed 2.5″ SATA* drive bays
    (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

System Cooling

  • Fans
    6x 40mm Fan(s)

Power Supply

  • 1x 500W
    1x 500W Platinum Level (93%) power supply
    Dimension (WxHxL)
    100 x 40 x 180 mm
    Total Output Power
    Input
    500W: 100-240Vac
    500W: 100-240Vac / 50-60Hz
    +12V
    Max: 41A / Min: 0.5A (100Vac-240Vac)
    Max: 41A / Min: 0.5A
    5V SB
    Max: 3A / Min: 0A
    Output Type
    24pin ATX
    Certification
    Platinum Level
    [
    Test Report
    ]
Brand

Supermicro
Products Status

New
Applications

Designed for small and medium businesses, Email/Firewall/Application Server, Web/Hosting Application
Max GPU

1
CPU Type

AMD EPYC 4004 or AMD Ryzen 7000 / 9000 Series Processors
Total PCI-E Slots

1
Drives

1
Drive Form Factors

3.5"
Form Factor

1U
Generation

H13
Interface

SATA (Native)
SATA

SATA (6Gbps) ; RAID 0/1 support
LED

Fan Fail/System Over Heat LEDHDD activity LEDNetwork Activity LEDsPower status LED
Max GPU Count

Up to 1 single-width GPU
CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect
Supported GPU

A2AMD PCIe: Radeon Pro W7500View GPU Options, L4, NVIDIA PCIe: RTX 4000 Ada Generation, RTX A4000
Network Connectivity

1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)2 RJ45 1GbE with Intel I210-ATView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI Flash
Package

8" (H) x 27" (W) x 24" (D)
Depth

16.9" (429 mm)
Fans

6x 40mm Fan(s)
Height

1.7" (43 mm)
Buttons

Power On/Off buttonSystem Reset button
M.2

2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
Memory

Slot Count: 4 DIMM slotsMax Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port1 DisplayPort 1.4 port1 HDMI 2 port
ROHS

RoHS Compliant
Core Count

Up to 16C/32T
NVMe

NVMe; RAID 0/1 support(Native)
Note

Supports 60W – 170W TDP CPUs (Air Cooled)
Weight

Gross Weight: 16 lbs (7.26 kg)
Drive Bays Configuration

Default: Total 1 bayOption A: Total 4 bays(*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
Audio

Rear Audio
USB

3 Type-A ports(Rear)2 Type-C ports(Rear)1 Type-C port(Rear)
Available Color

Silver
PCI-Express (PCIe) Configuration

Default
TPM

1 TPM Header
CPU

Single processor(s)AMD EPYC 4004 or AMD Ryzen 7000 / 9000 Series Processors
Chipset

AMD B650
Memory Voltage

1.1V
Environmental Spec.
