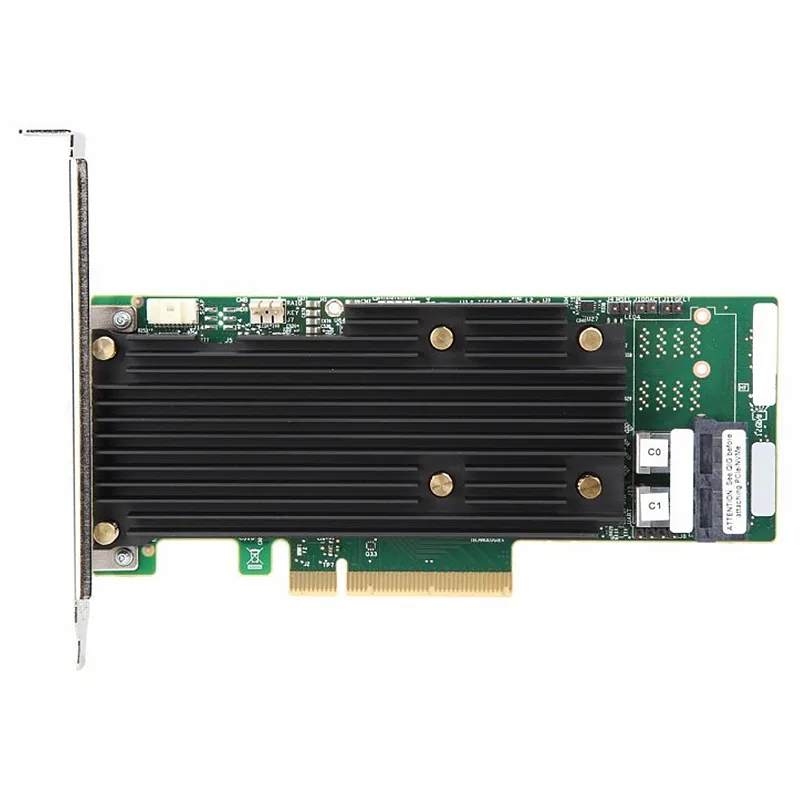

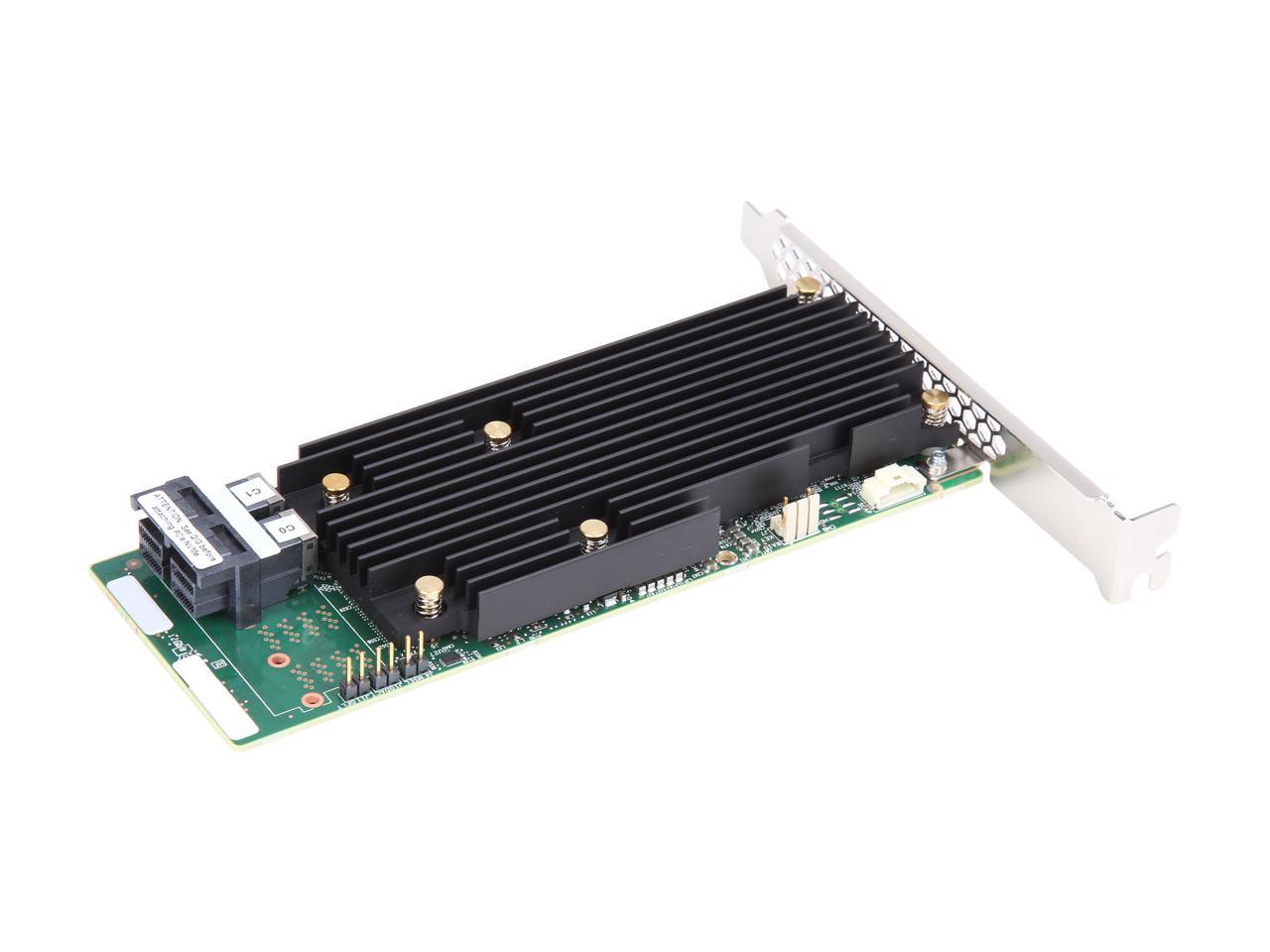

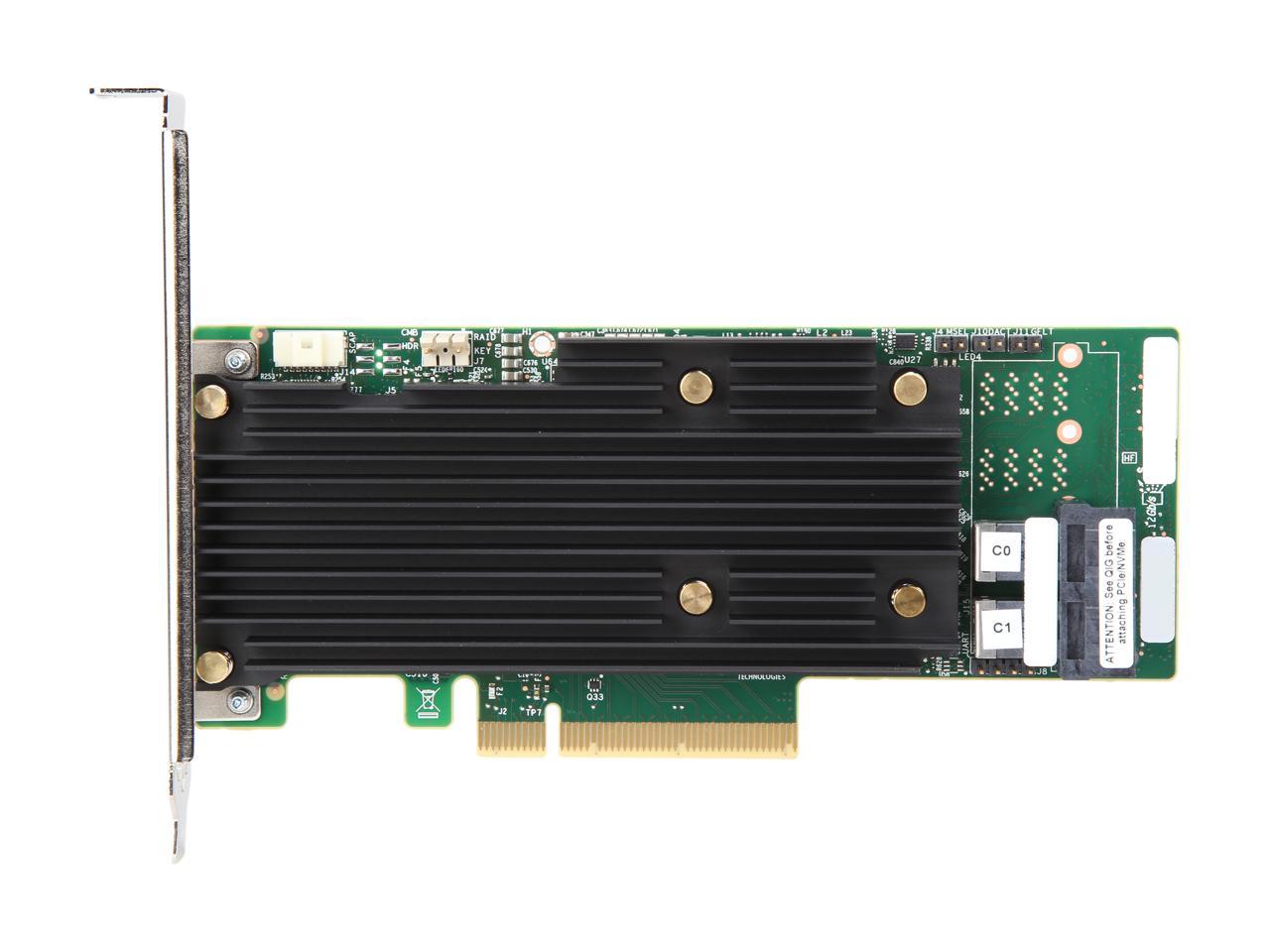

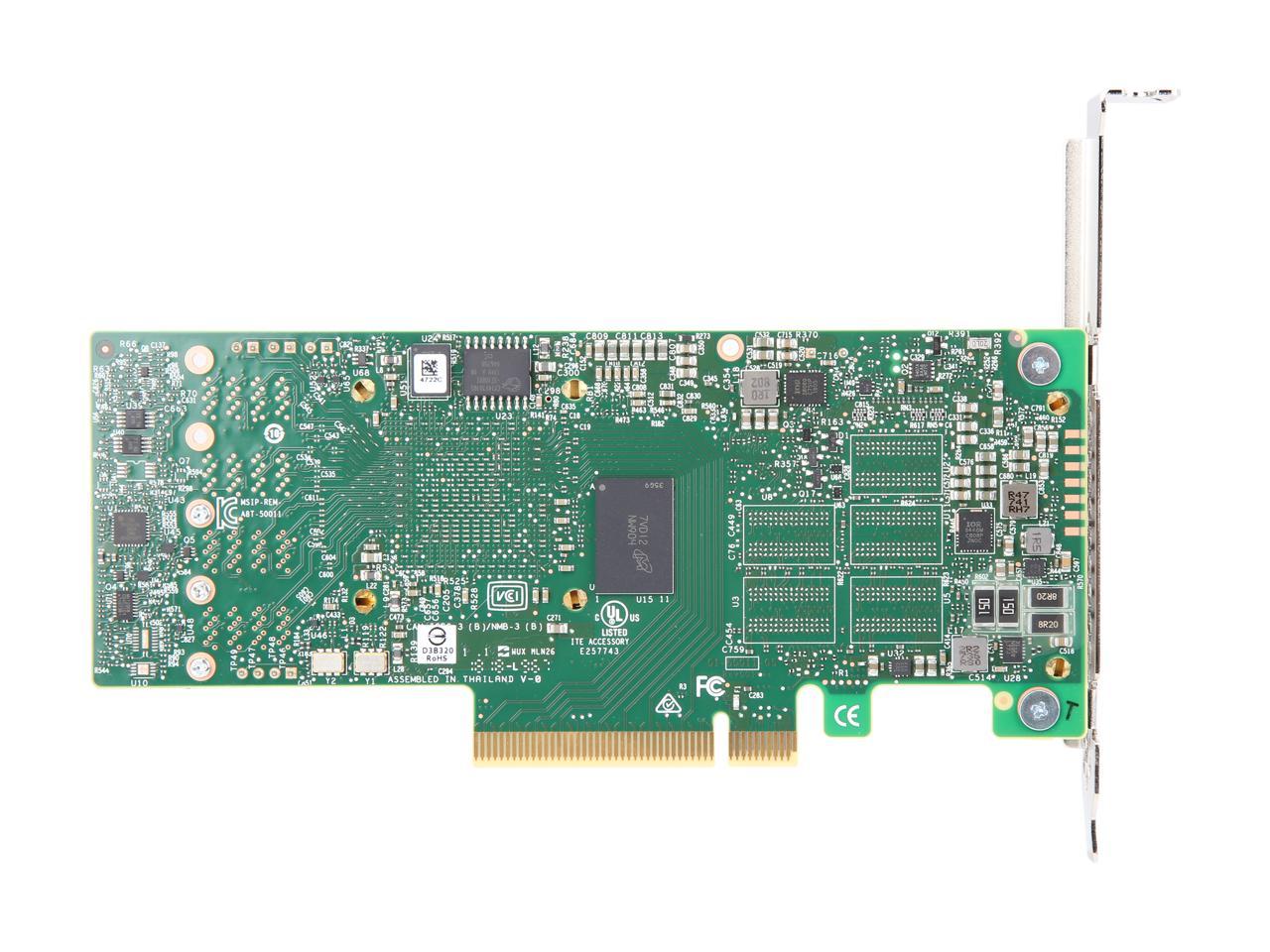

LSI MegaRAID 9400 9460-8i x8 lane PCI Express 3.1 SATA / SAS Tri-Mode Storage Adapters

Up to 8 storage interface PCIe links. Each link supporting x4 or x2 link widths up to 8.0 GT/s (PCIe Gen3) per lane,,SFF-9402 Compliant, Connector Pin-out,,SFF-8485 Compliant, SGPIO,,RAID levels 0, 1, 5, 6, 10, 50 and 60,,CacheVault flash back-up at power fail,- Supports bad block management,,PCIe 3.1 Host Interface,- Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex,- Lane and polarity reversal,- Variable PCIe bandwidth negotiation,,Ports: 8 internal,,I/O Processor / SAS Controller: SAS3508,,Typical Power: 14.16W
