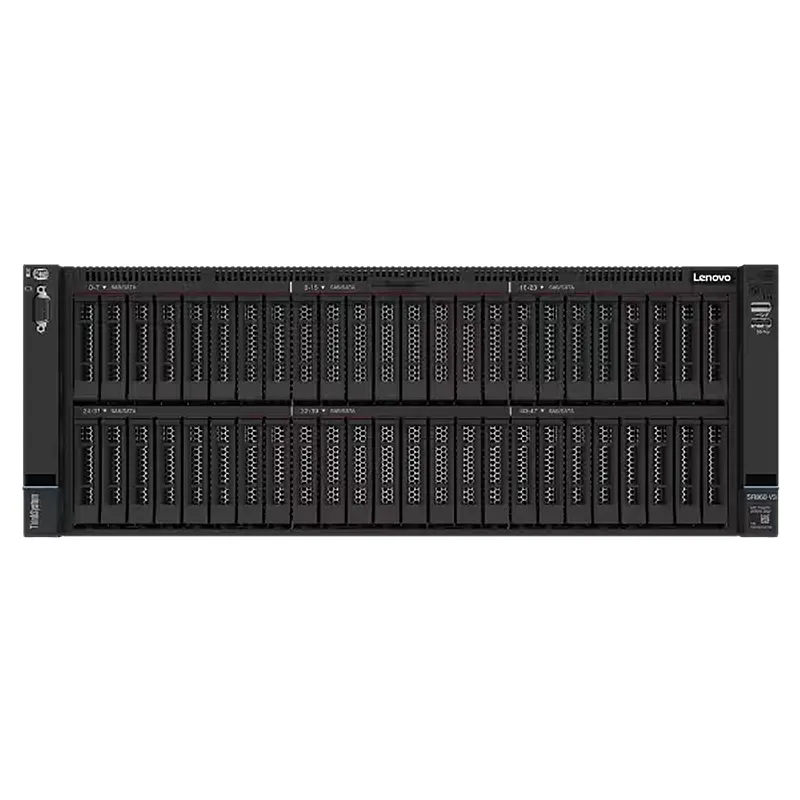

The Lenovo ThinkSystem SR860-V3 Gen 3 is a high-performance server designed to meet the demanding needs of modern data centers. Featuring the latest Intel Xeon Scalable processors, this powerhouse supports up to 8TB of memory, delivering exceptional speed and responsiveness for complex workloads. It offers outstanding scalability with flexible storage options, making it ideal for cloud computing, virtualization, and large-scale database applications. Enhanced with advanced security features and robust management tools, the SR860-V3 ensures reliable operation and streamlined maintenance for critical enterprise environments.
The SR860 V3 scales up to four 4 th Gen Intel ® Xeon ® Scalable processors and up to four enterprise-grade GPUs. It easily handles enterprise virtualization, workload consolidation, in-memory computing such as SAP HANA, databases, and GPU-intensive applications such as AI and 3D modeling.
*Compared to ThinkSystem SR860 V2
Maximum performance paired with minimum effort
The Lenovo ThinkSystem SR860 V3 supports more CPU cores*, capacity*, and offers 50% more bandwidth* from the latest DDR5 memory. Equipped with next-gen technology that eliminates bottlenecks from expansion slots to NVMe drives.
*Compared to ThinkSystem SR860 V2
Superior security and exceptional RAS
The LenovoSR860 V3 server is at the top of RAS (Reliability, Availability, and Serviceability) list. Features like Predictive Failure Analysis, error detection, self-healing, and Light path diagnostics easy for failure identification. XClarity provides simple and standardized management, reducing provisioning time by 95% compared to manual operations.
Tech Specs
Form Factor
4U
Processor
Two or four 4 th Gen Intel ® Xeon ® Scalable processors, up to 350W Mesh topology with 3x UPI links; With Up to 4x QAT, DLB, IAA and DSA Accelerators
GPU Support
Up to 4x double-width 350W GPUs or 8x single-width 75W GPUs
Memory
Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz.
Drive Bays
Up to 48x 2.5″ drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot
Expansion
Up to 16x (12x Gen5 + 4x Gen4) or up to 18x Gen4 or 4x Gen4 PCIe expansion slots
Front: VGA, 1x USB 3.1, 1x USB 2.0
Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
Up to 4x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
High Availability
PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
Security
Root of Trust (RoT) module includes Platform Firmware Resiliency (PFR), Trusted Platform Module (TPM) 2.0 or TCM for PRC and optional Chassis Intrusion Switch. Secures and authenticates the system to prevent unauthorized intrusion.
1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
The Lenovo ThinkSystem SR860 V3 Server is an elite, high-performance solution designed for the most demanding enterprise workloads. Powered by the latest Intel Xeon Scalable processors, it provides exceptional processing power and efficiency. This server supports expansive memory and flexible storage configurations, making it ideal for intensive applications such as artificial intelligence, analytics, and large-scale virtualization. With advanced security features and a robust, scalable architecture, the SR860 V3 ensures maximum reliability and performance, making it the premier choice for businesses seeking to optimize their IT infrastructure.
Submit Inquiry
Buy more, save more. Contact us for exclusive discounts!
