General Server Details:
- MetroCluster IP: 4x 40/100 GbE QSFP28 ports (SW fiber optic cable, MPO) (2 ports per controller on the optional 100 GbE iWARP adapter cards). (requires ONTAP 9.8 or later)
- MetroCluster FC: 4x 4/8/16 Gb FC SFP+ ports?(SW fiber optic cable, LC)?(2 ports per controller on the optional 16 Gb FC-VI adapter cards).
- Up to 720 hot-swap drive bays:
LFF: Up to 12x 4U60 LFF expansion enclosures.
SFF: Up to 30x 2U24 SFF expansion enclosures.
- Maximum raw storage capacity: 11.2 PB
- Maximum flash pool cache size: 72 TB (including Flash Cache)
- Maximum aggregate size: 400 TB
- Maximum number of FlexVol volumes per HA pair: 5000
- Maximum volume size: 100 TB (The maximum size will be increased up to 300TB in ONTAP 9.12.1P2 and later.)
- Maximum number of LUNs per controller: 12,288
- Maximum number of LUNs per FlexVol volume: 512
- Maximum LUN size: 16 TB (The maximum size will be increased up to 128TB in ONTAP 9.12.1P2 and later.)
- Maximum number of drives in a RAID group (data + parity drives):
- RAID 4: 14 (13 + 1 SAS SSDs) or 7 (6 + 1 NL SAS HDDs)
- RAID-DP: 28 (26 + 2 SAS SSDs) or 20 (18 + 2 NL SAS HDDs)
- RAID-TEC: 29 (26 + 3 SAS SSDs or NL SAS HDDs)
- Maximum number of initiators per HA pair: 8192
- Maximum number of LUNs per HA pair: 24,576

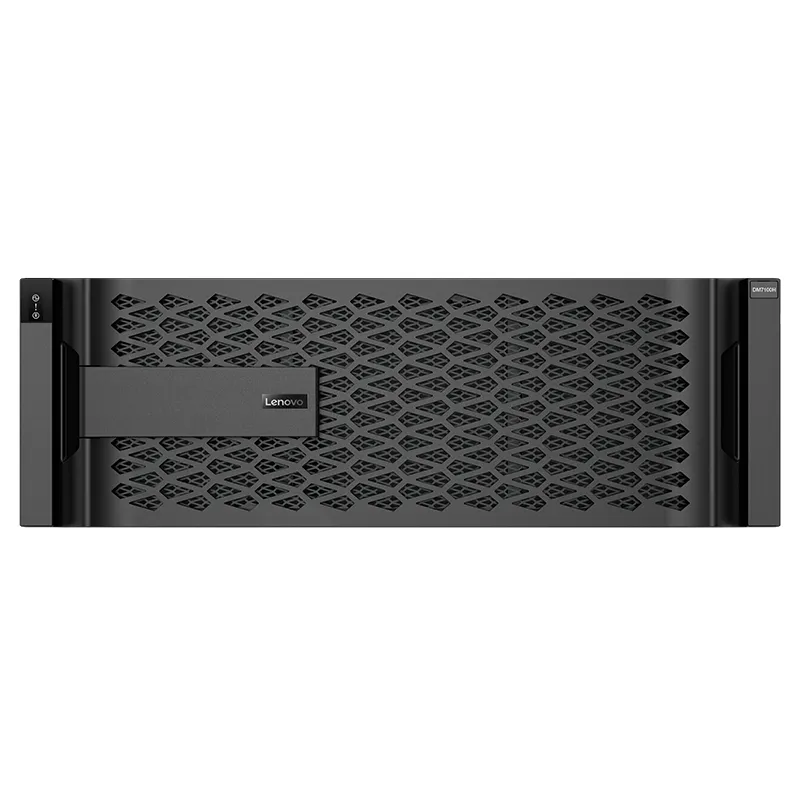

The ThinkSystem DM7100H controller enclosures ship with four HA interconnect?25 GbE SFP28 ports (two ports per controller) to cable?a directly-connected?dual-controller HA pair, and four cluster interconnect 100?GbE QSFP28?ports (two ports per controller) to cable a directly connected (one HA pair) or switched (multiple HA pairs) cluster. Up to six HA pairs can be combined into a single SAN cluster or up to 12?HA pairs can be combined into a single NAS cluster.
The ThinkSystem DM7100H controller enclosure has two mezzanine slots (one slot per controller) for mezzanine cards and ten available expansion slots (five slots per controller) for adapter cards.?The controller enclosure also provides eight integrated 12 Gb SAS x4 expansion ports (Mini-SAS HD SFF-8644 connectors) (four ports per controller) for the attachment of the ThinkSystem DM Series expansion enclosures.
