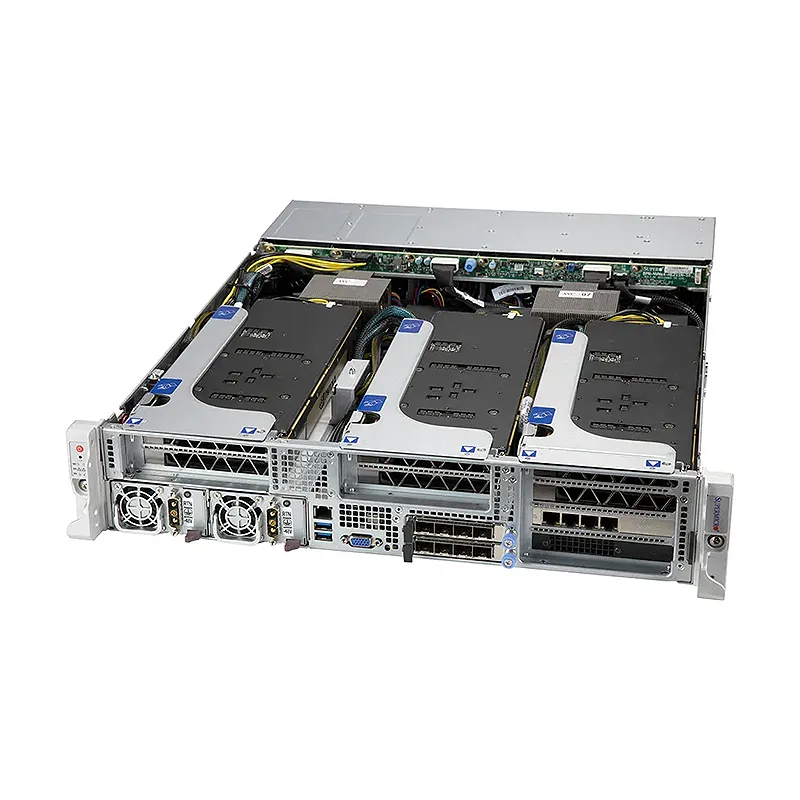

IoT SuperServer SYS-220HE-FTNRD (Complete System Only

Brand	Supermicro
Products Status	New
Applications	5G Core and Edge, AI Inference and Machine Learning, Cloud Computing, Network Function Virtualization, Telecom Micro Data Center
Max GPU	2
CPU Type	3rd Gen Intel Xeon Scalable processors
Total PCI-E Slots	8
Drives	6
Drive Form Factors	2.5"
Form Factor	2U
Generation	X12
Interface	NVMe (Optional), SAS (Optional), SATA (Optional)
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
LED	HDD activity LEDLAN1 activityLAN2 activityPower FailPower status LEDSystem information
Max GPU Count	Up to 3 double-width or 3 single-width GPUs
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
Supported GPU	A100, A10View GPU Options, A40, NVIDIA PCIe: T4
Network Connectivity
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
Package	9.7" (H) x 23.5" (W) x 36.9" (D)
Depth	22.6" (574 mm)
Fans	6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s)
Height	3.5" (88.9 mm)
Buttons	Power On/OffUID button
M.2	2 M.2 NVMe slots (M-key 2280/22110)
Memory	Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
GPU-GPU Interconnect	PCIe
Width	17.2" (436.88 mm)
Video	1 VGA port
NVMe	NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
Note	Supports up to 270W TDP CPUs (Air Cooled)
Weight	Gross Weight: 47.4 lbs (21.5 kg)Net Weight: 34.4 lbs (15.6 kg)
Drive Bays Configuration	Default: Total 6 bays
USB	2 USB 2.0 ports(front)
Available Color	Silver
PCI-Express (PCIe) Configuration	DefaultOption A
CPU	Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
Chipset	Intel C621A
Memory Voltage	1.2V
Environmental Spec.
