* NOTE: Image may not exactly match the product

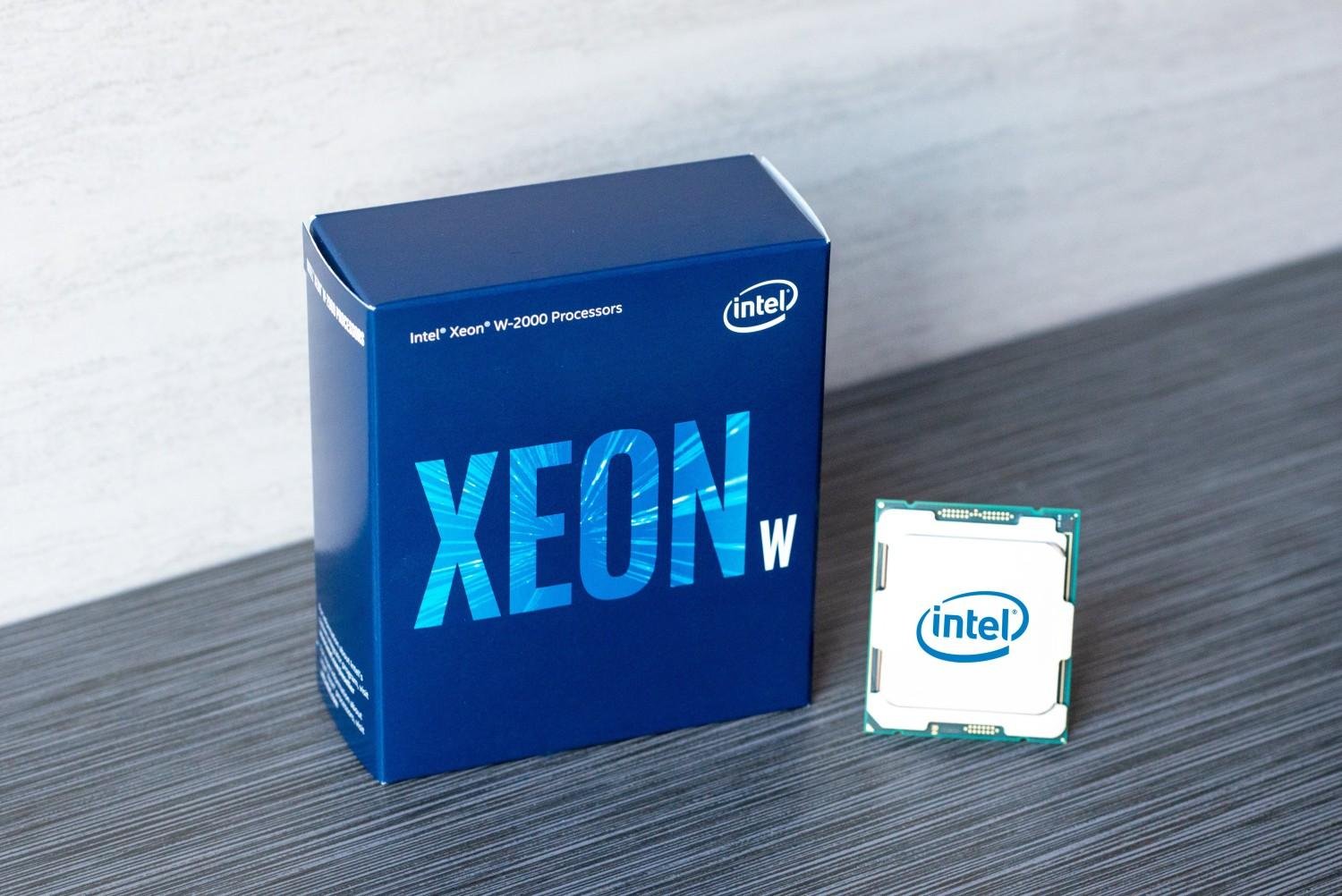

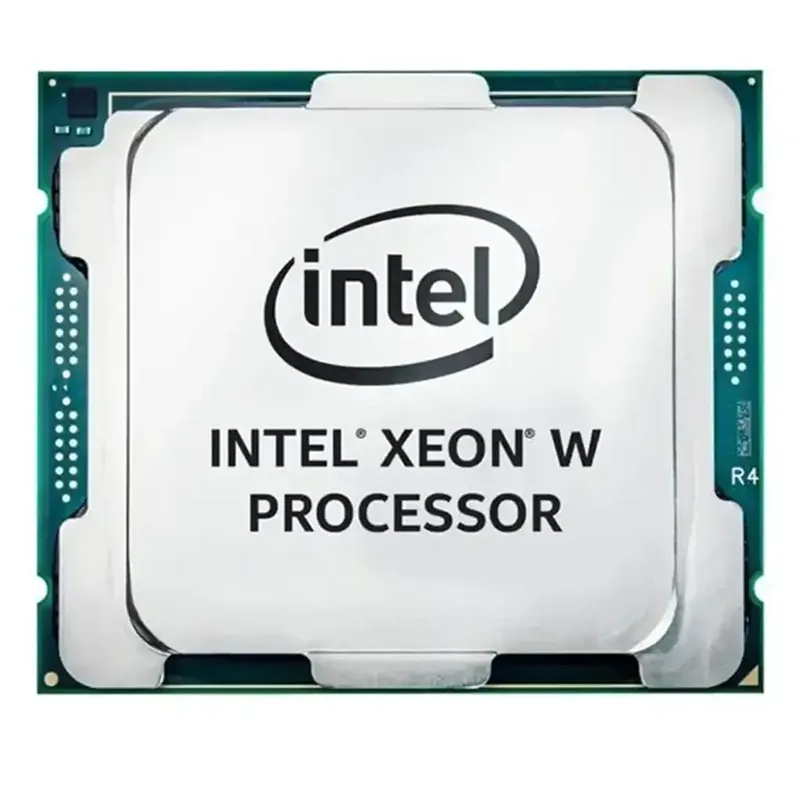

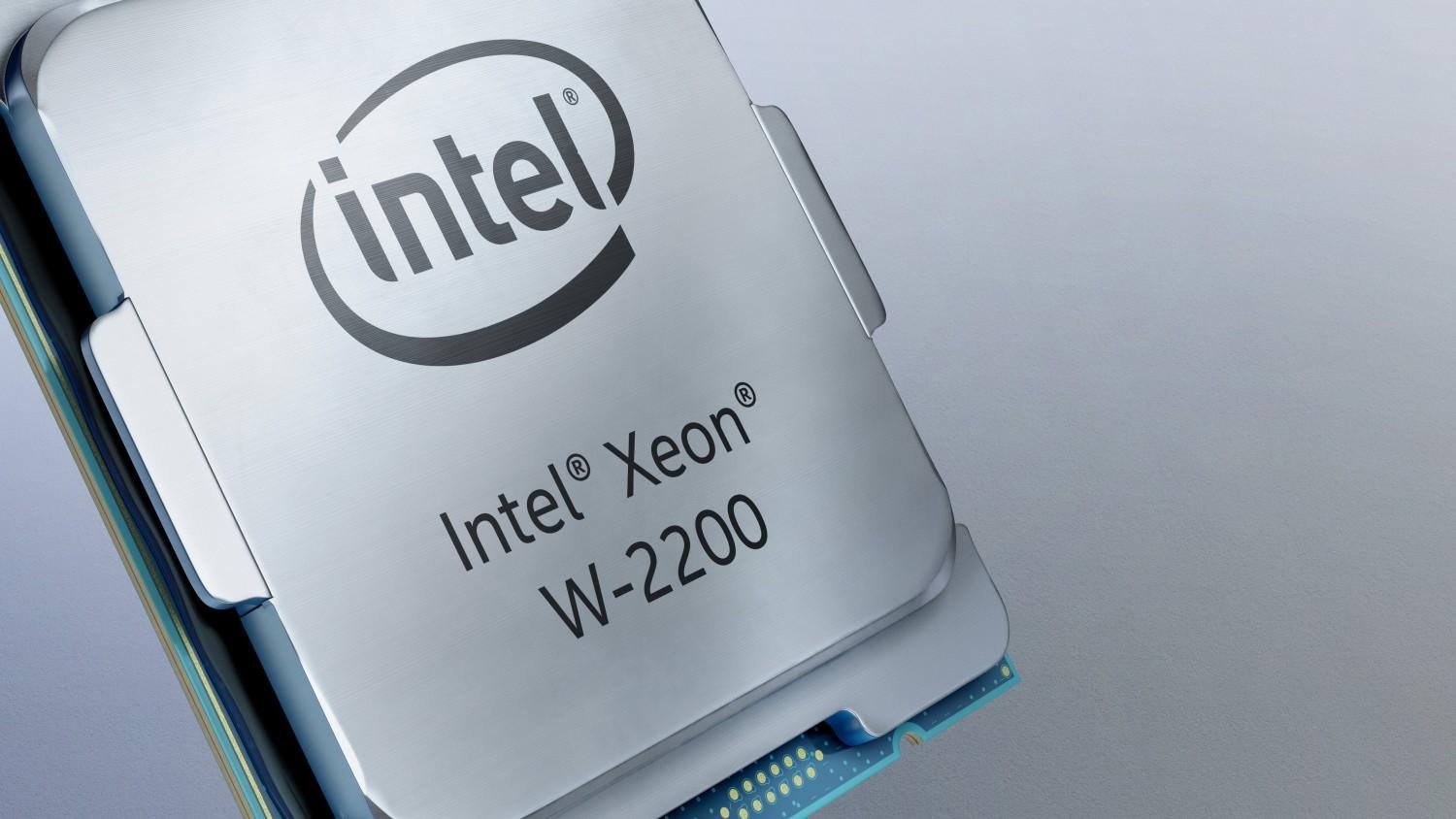

Intel Xeon W-2245 Processor (16.5M Cache, 3.90 GHz)

$515.281 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Memory Types

DDR4 2933

Code Name

Cascade Lake

Max # of Memory Channels

4

TDP

155 W

Hyper-Threading Support

Yes

Model

CD8069504393801

Total Threads

16

Physical Address Extensions

46-bit

Manufacturing Tech

14 nm

PCI Express Revision

3

Shipping Media

TRAY

Max CPU Configuration

1

PCI Express Configurations

x16, x4, x8

Bus Speed

8 GT/s

ECC Memory Supported

Yes

Brand

Intel

Embedded Options Available

No

Processor Base Frequency

3.90 GHz

Scalability

1S Only

Max Turbo Frequency

4.50 GHz

64-Bit Support

Yes

Series

Intel Xeon W

Package Size

45mm x 52.5mm

Max # of PCI Express Lanes

48

Max Memory Bandwidth

93.85 GB/s

CPU Socket Type

Application

Workstation

Cache

16.5 MB

Part Number

W-2245

Total Cores

8

Max Memory Size

1 TB

Products Status

New

Instruction Set

64-bit
