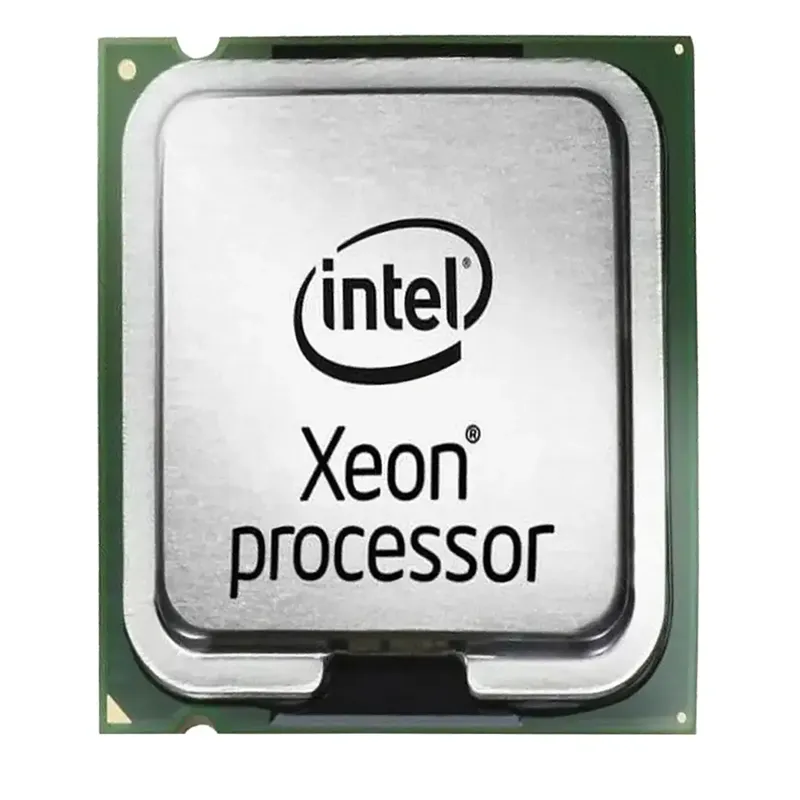

* NOTE: Image may not exactly match the product

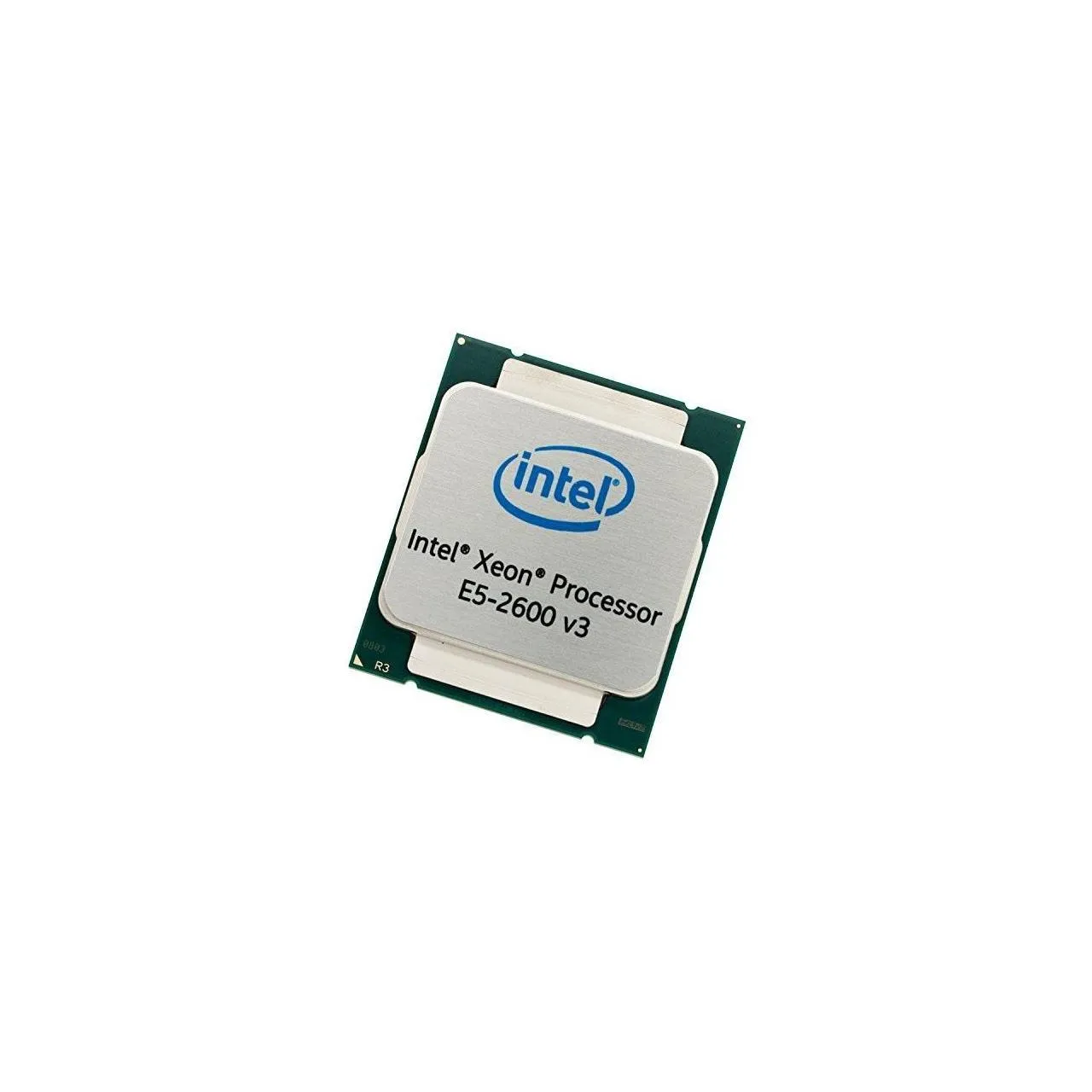

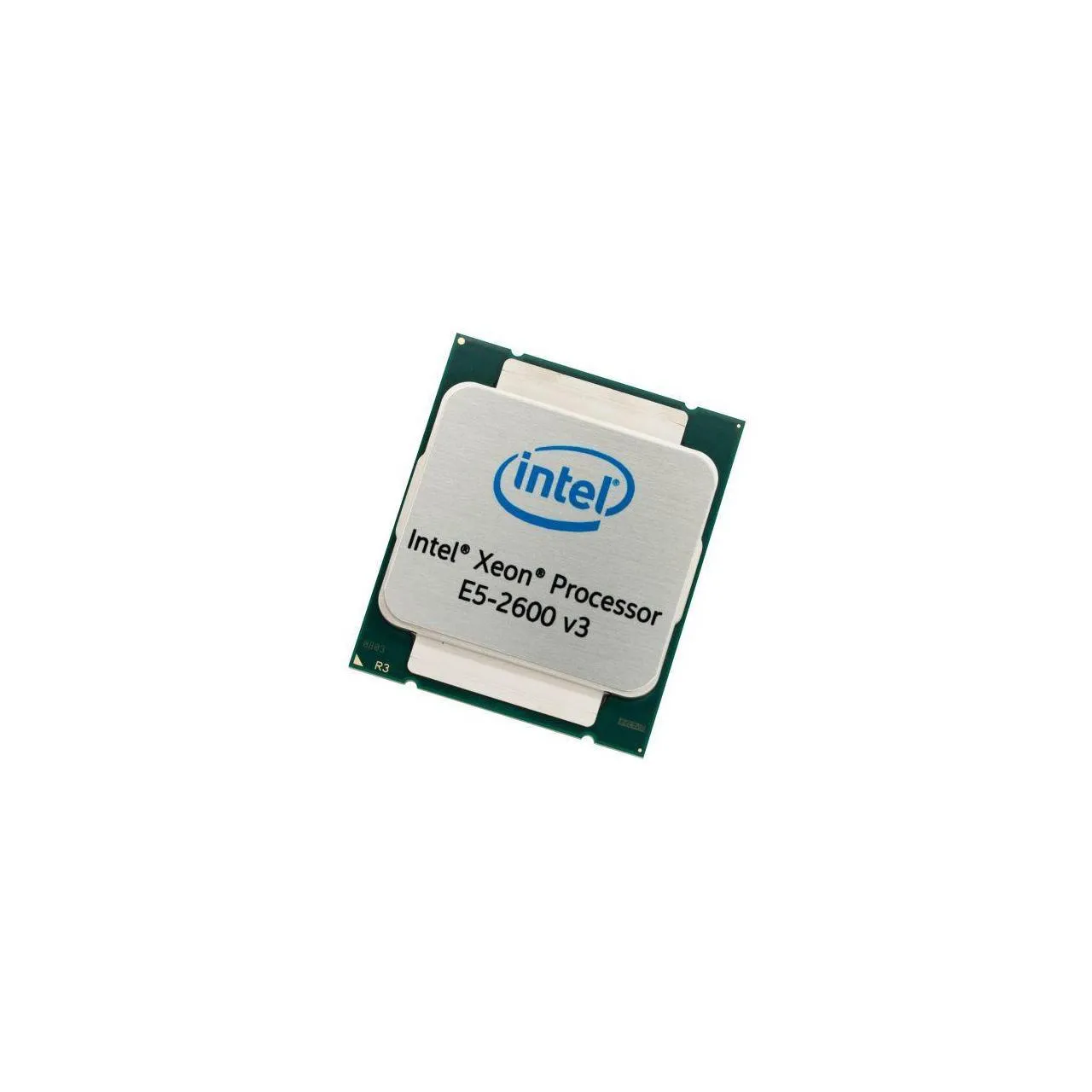

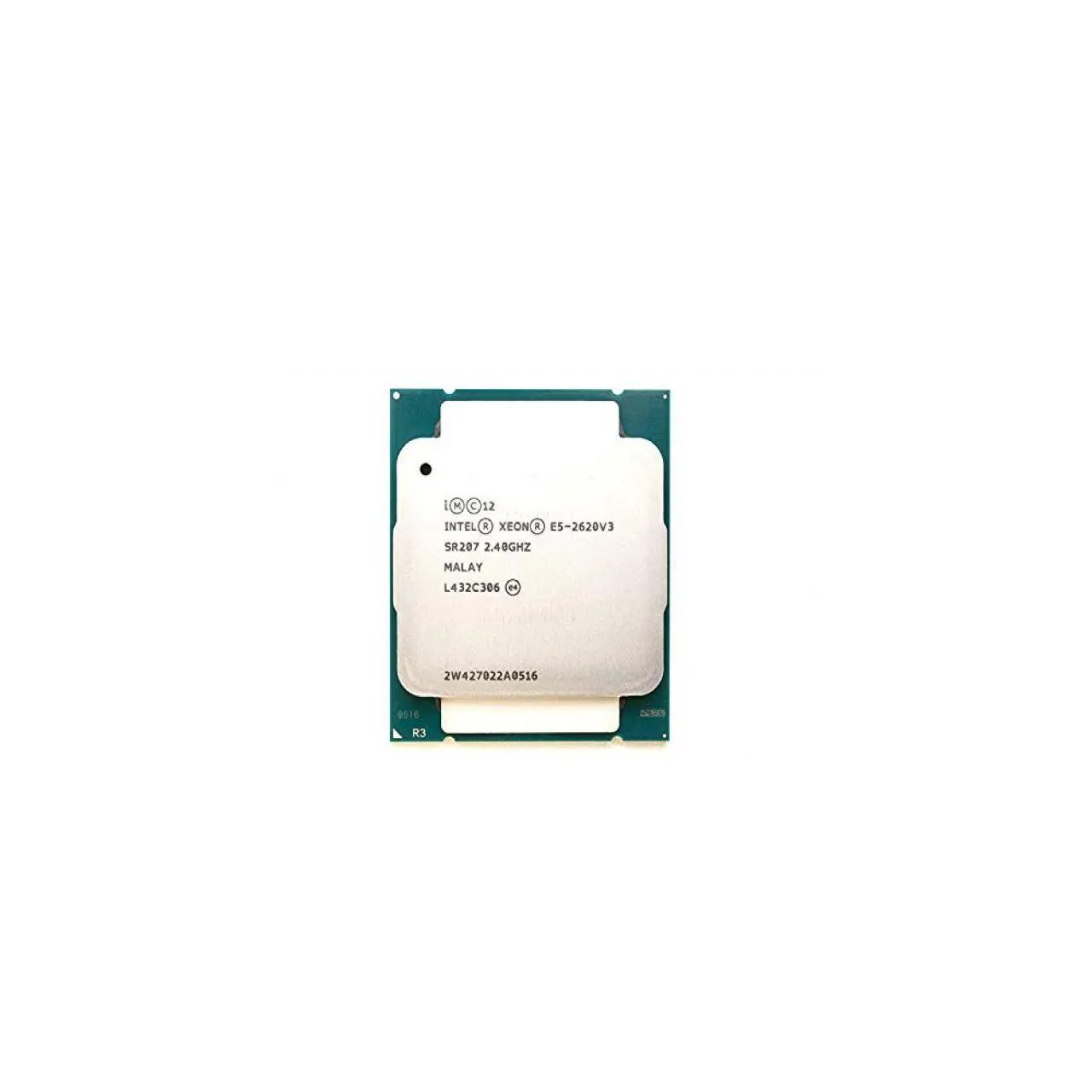

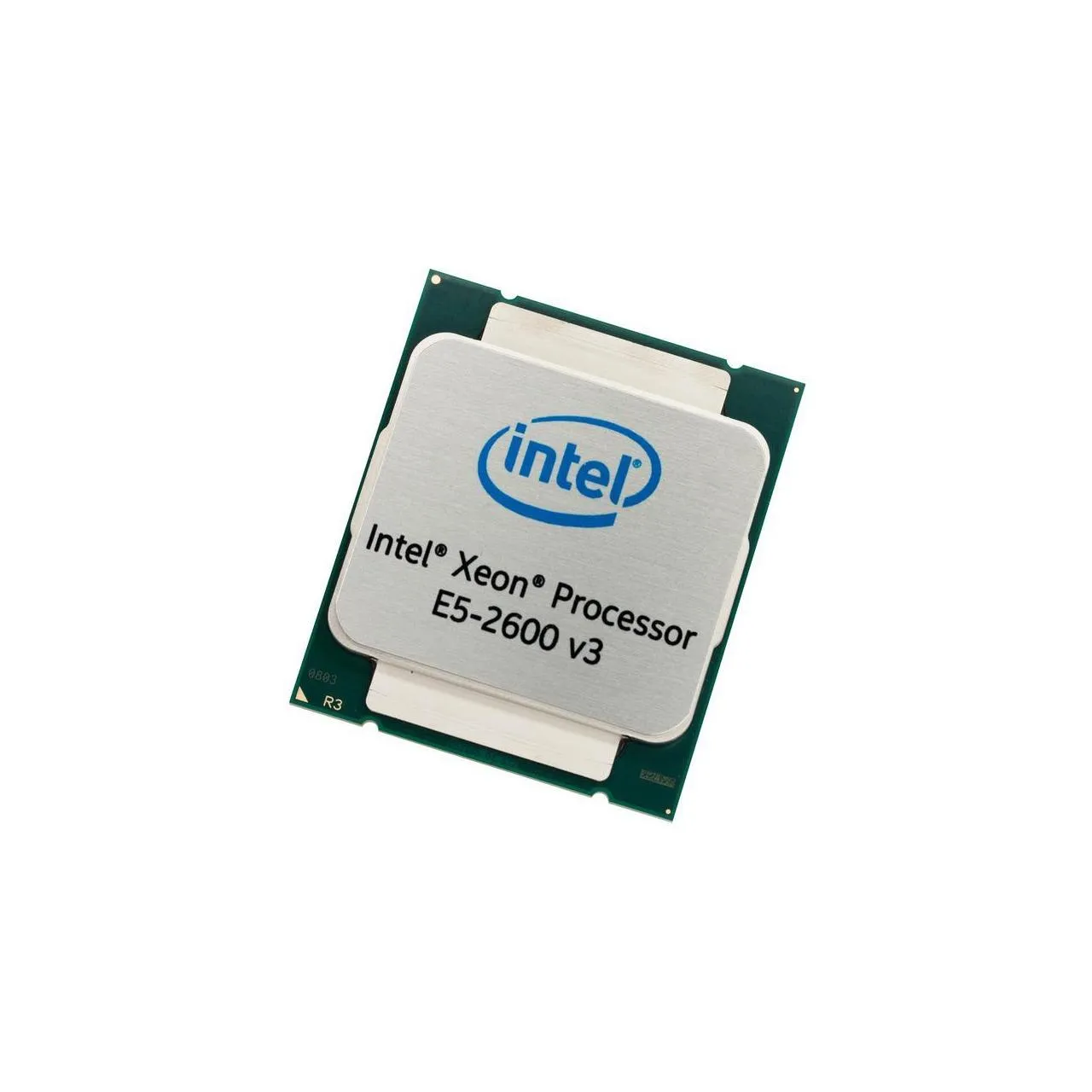

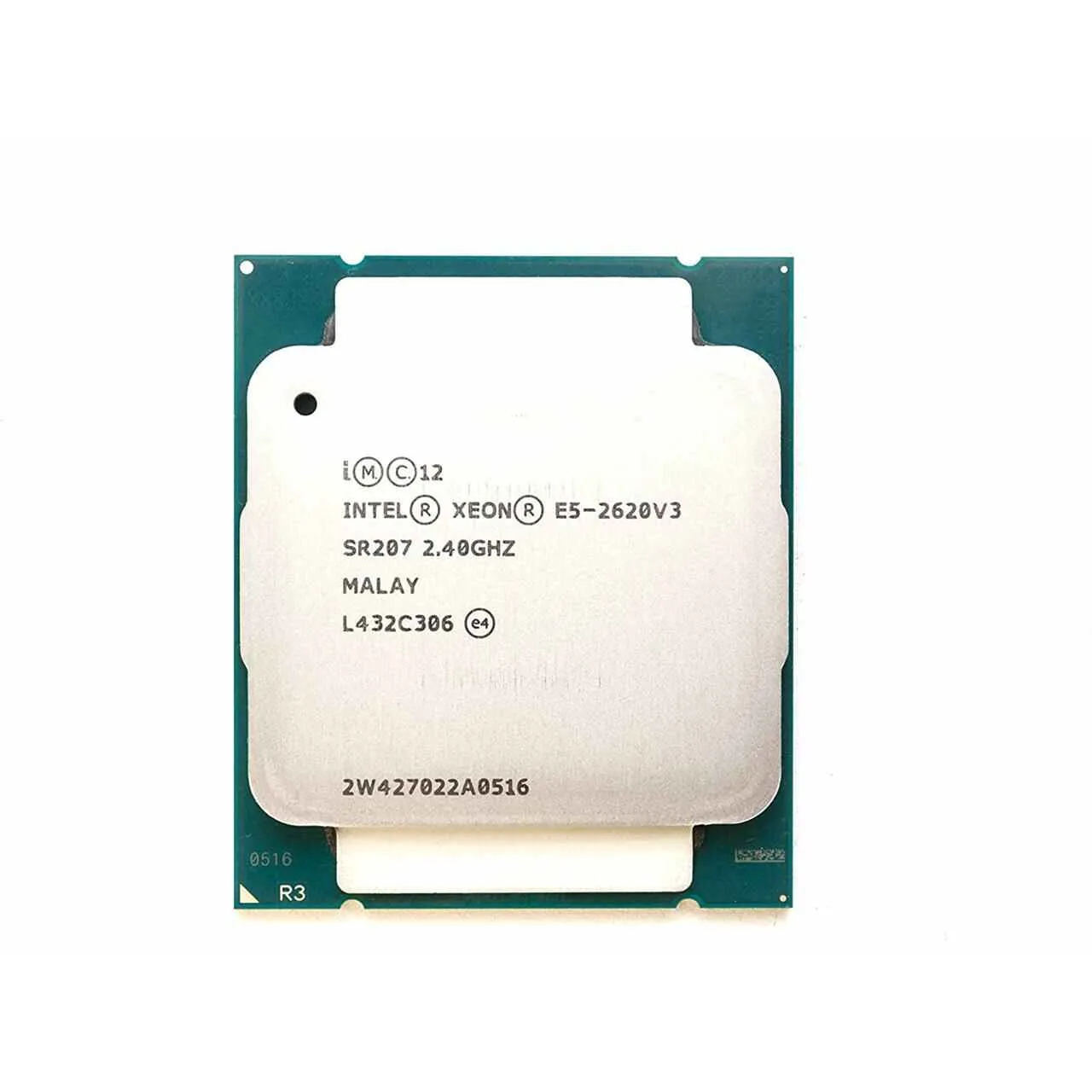

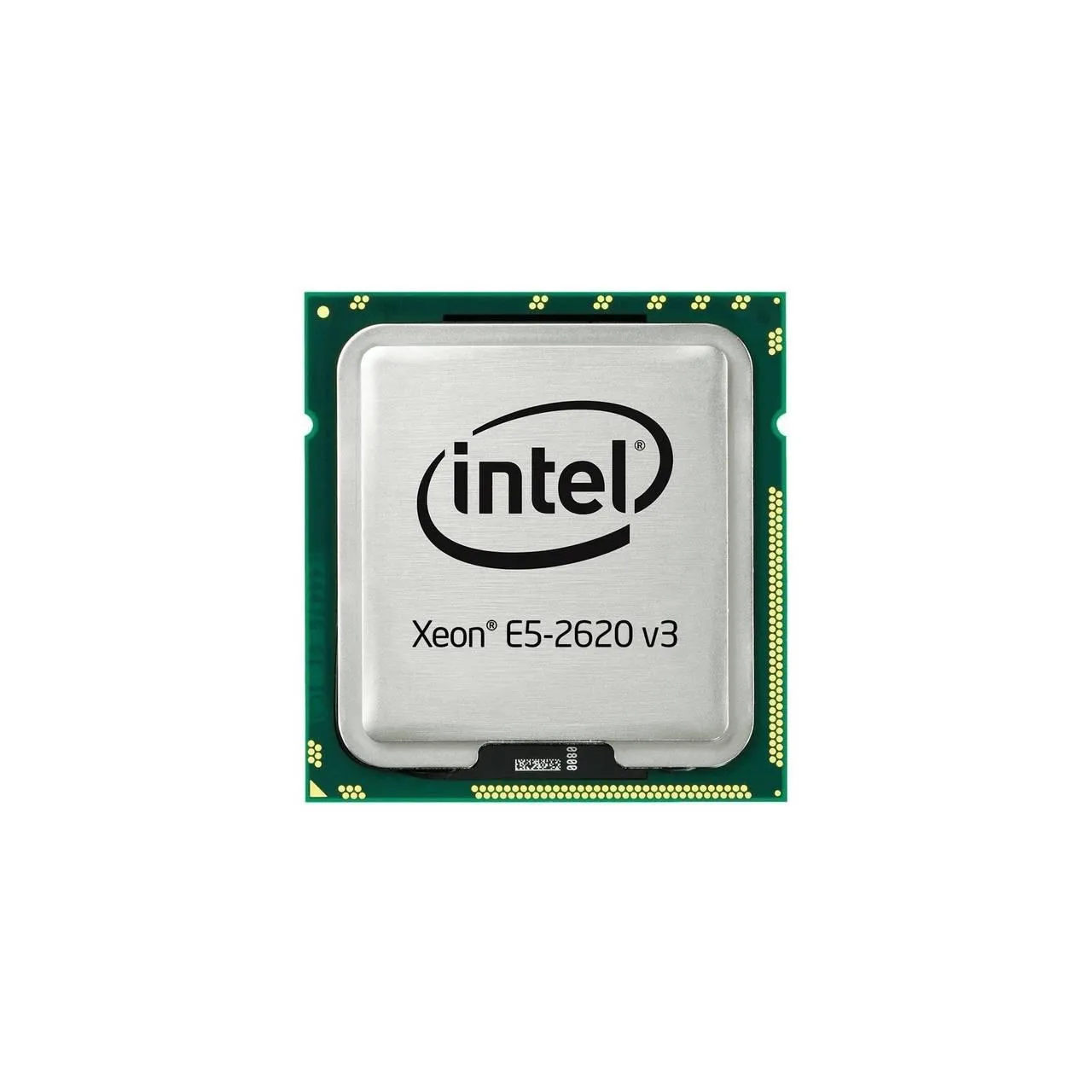

Intel Xeon E5-2620 v3 Haswell 2.4 GHz 6 x 256KB L2 Cache 15MB L3 Cache LGA 2011-3 85W CM8064401831400 Server Processor

$16.281 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

The Intel Xeon E5-2600 v3 processors take huge leaps forward in performance and power efficiency. Based on 22nm Haswell EP micro architecture and with LGA 2011-3 packaging, the Intel Xeon E5-2600 v3 family has core count ranging from four to eighteen, and supports DDR4 of up to four channels to feed these cores with adequate data. The support for two processors configuration and Hyper-Threading technology take the parallel computing capability to the next level.

The new Intel Xeon processor E5-2600 v3 family product helps IT address the growing demands placed on infrastructure, from supporting business growth to enabling new services faster, delivering new applications in the enterprise, technical computing, communications, storage, and cloud. It also enables powerful, agile data centers by supporting a Software-Defined Infrastructure (SDI) to address the imminent need of greater flexibility with higher levels of automation and orchestration. In addition, with the significant benefits in virtualization and security, as well as a low total cost of ownership and Intels acclaimed product quality, the Intel Xeon Processor E5-2600 v3 product family is a compelling solution for any organization.

Memory Types

DDR4 1600/1866

Code Name

Haswell

Max # of Memory Channels

4

TDP

85 W

Hyper-Threading Support

Yes

Model

CM8064401831400

Total Threads

12

Physical Address Extensions

46-bit

Manufacturing Tech

22 nm

PCI Express Revision

3

Max CPU Configuration

2

PCI Express Configurations

x16, x4, x8

Bus Speed

8 GT/s

ECC Memory Supported

Yes

Brand

Intel

Embedded Options Available

Yes

Processor Base Frequency

2.40 GHz

Scalability

2S

Max Turbo Frequency

3.20 GHz

64-Bit Support

Yes

Series

Intel Xeon Processor E5 v3 Family

Package Size

52.5mm x 45mm

Max # of PCI Express Lanes

40

Max Memory Bandwidth

59 GB/s

CPU Socket Type

Application

Server

Cache

15 MB

Part Number

E5-2620V3

Total Cores

6

Max Memory Size

768 GB

Products Status

New

Instruction Set

64-bit

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!
