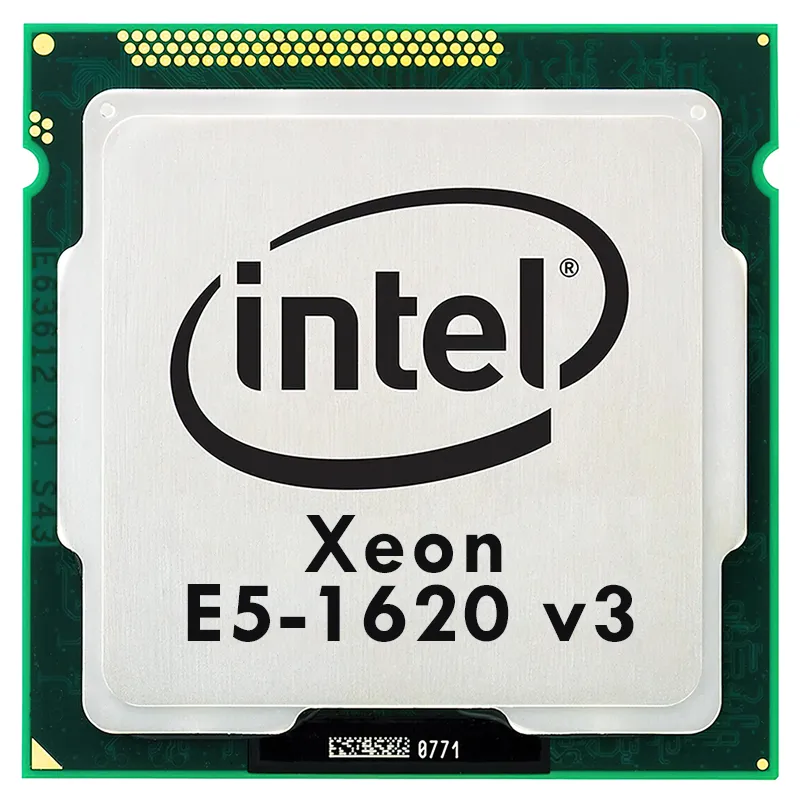

Intel Xeon E5-1620 v3 Haswell-EP 3.5 GHz 4 x 256KB L2 Cache 10MB L3 Cache LGA 2011-3 140W BX80644E51620V3 Server Processor

$Quote1 Piece(MOQ)1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

The Intel Xeon E5-1600 v3 processors take huge leaps forward in performance and power efficiency. Based on 22nm Haswell EP micro architecture and with LGA 2011-3 packaging, the Intel Xeon E5-1600 v3 family has core count ranging from four to eight, and supports DDR4 of up to four channels to feed these cores with adequate data. The support for Turbo Boost and Hyper-Threading technology take the computing capability to the next level.

The new Intel Xeon processor E5-1600 v3 family product helps IT address the growing demands placed on infrastructure, from supporting business growth to enabling new services faster, delivering new applications in the enterprise, technical computing, communications, storage, and cloud. It also enables powerful, agile data centers by supporting a Software-Defined Infrastructure (SDI) to address the imminent need of greater flexibility with higher levels of automation and orchestration. In addition, with the significant benefits in virtualization and security, as well as a low total cost of ownership and Intels acclaimed product quality, the Intel Xeon Processor E5-1600 v3 product family is a compelling solution for any organization.



Memory Types

DDR4 1333/1600/1866/2133

Code Name

Haswell

Max # of Memory Channels

4

TDP

140 W

Hyper-Threading Support

Yes

Model

CM8064401973600

Total Threads

8

Physical Address Extensions

46-bit

Manufacturing Tech

22 nm

PCI Express Revision

3

Max CPU Configuration

1

PCI Express Configurations

x16, x4, x8

Bus Speed

0 GT/s

ECC Memory Supported

Yes

Brand

Intel

Embedded Options Available

No

Processor Base Frequency

3.50 GHz

Scalability

1S Only

Max Turbo Frequency

3.60 GHz

64-Bit Support

Yes

Series

Intel Xeon Processor E5 v3 Family

Package Size

52.5mm x 45.0 mm

Max # of PCI Express Lanes

40

Max Memory Bandwidth

68 GB/s

CPU Socket Type

Application

Server

Cache

10 MB

Part Number

E5-1620V3

Total Cores

4

Max Memory Size

768 GB

Products Status

New

Instruction Set

64-bit
