* NOTE: Image may not exactly match the product

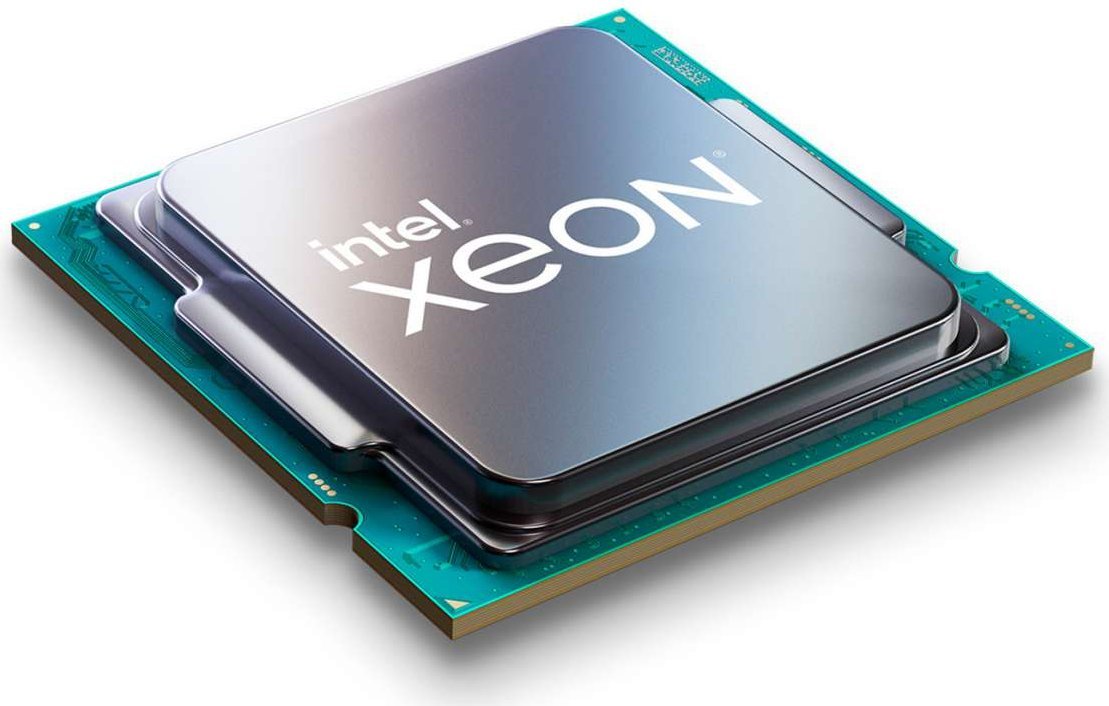

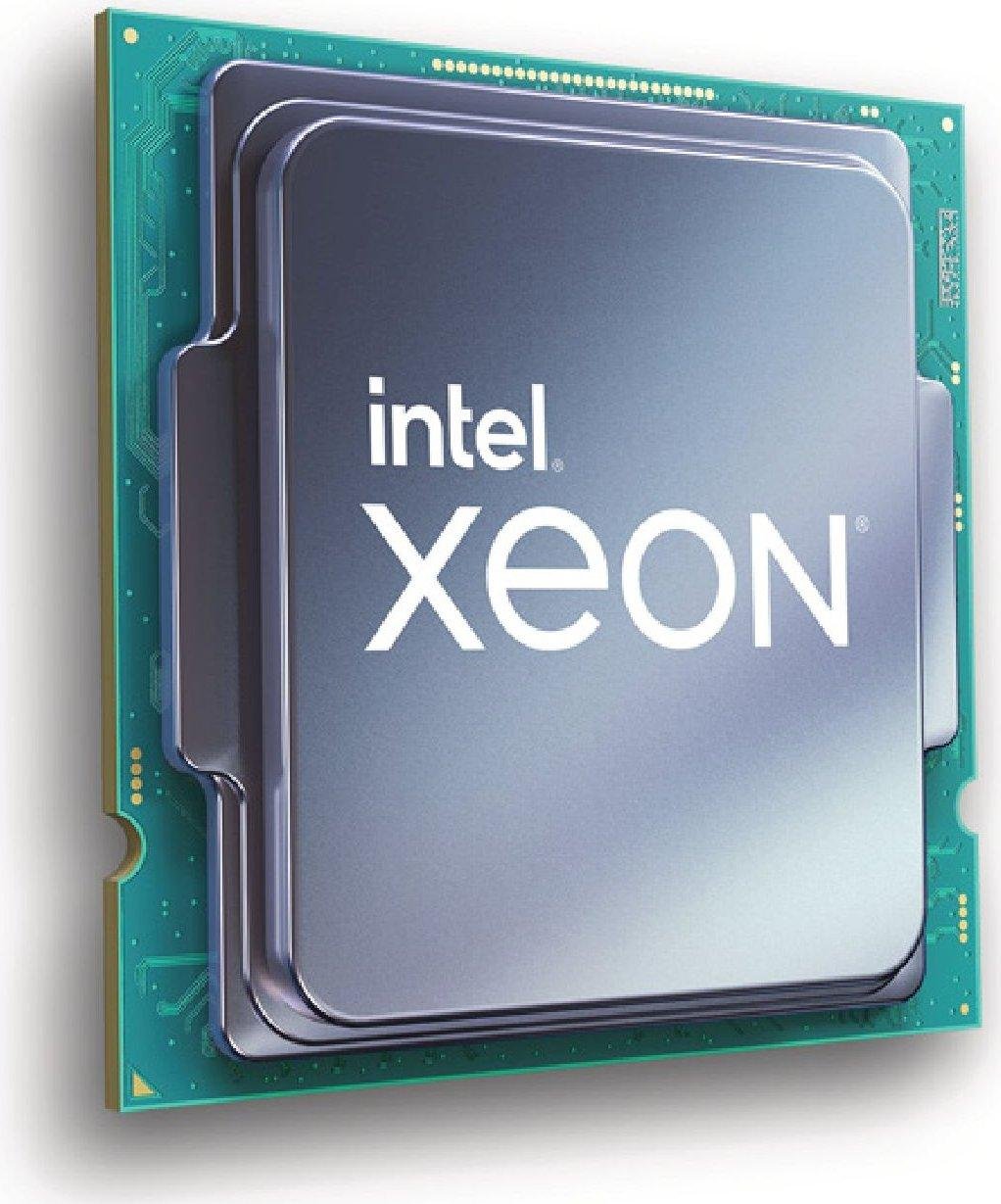

Intel Xeon E-2276M Server Processor (12M Cache, 2.80 GHz)

$Quote1 Piece(MOQ)1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Additional information

Memory Types

DDR4-2666, LPDDR3-2133

# of Displays Supported

3

Code Name

Coffee Lake

Max # of Memory Channels

2

TDP

45 W

Hyper-Threading Support

Yes

T JUNCTION

100C

Model

CL8068404068806

Total Threads

12

Manufacturing Tech

14 nm

PCI Express Revision

3

Shipping Media

TRAY

Max CPU Configuration

1

PCI Express Configurations

1×8+2×4, 2×8, Up to 1×16

Bus Speed

8 GT/s

ECC Memory Supported

Yes

Brand

Intel

4K Support

at 60Hz, Yes

Intel Quick Sync Video

Yes

Embedded Options Available

No

Processor Base Frequency

2.80 GHz

Max Turbo Frequency

4.70 GHz

64-Bit Support

Yes

Series

Intel Xeon E

Package Size

42mm x 28mm

DirectX* Support

12

Max # of PCI Express Lanes

16

Graphics Max Dynamic Frequency

1.20 GHz

Max Memory Bandwidth

41.8 GB/s

CPU Socket Type

Application

Server

Graphics Base Frequency

350 MHz

Graphics Output

eDP/DP/HDMI/DVI

Cache

12 MB

Part Number

E-2276M

Total Cores

6

Max Memory Size

128 GB

Products Status

New

Instruction Set

64-bit

Clear Video HD Technology

Yes

OpenGL* Support

4.5

Device ID

0x3E94
