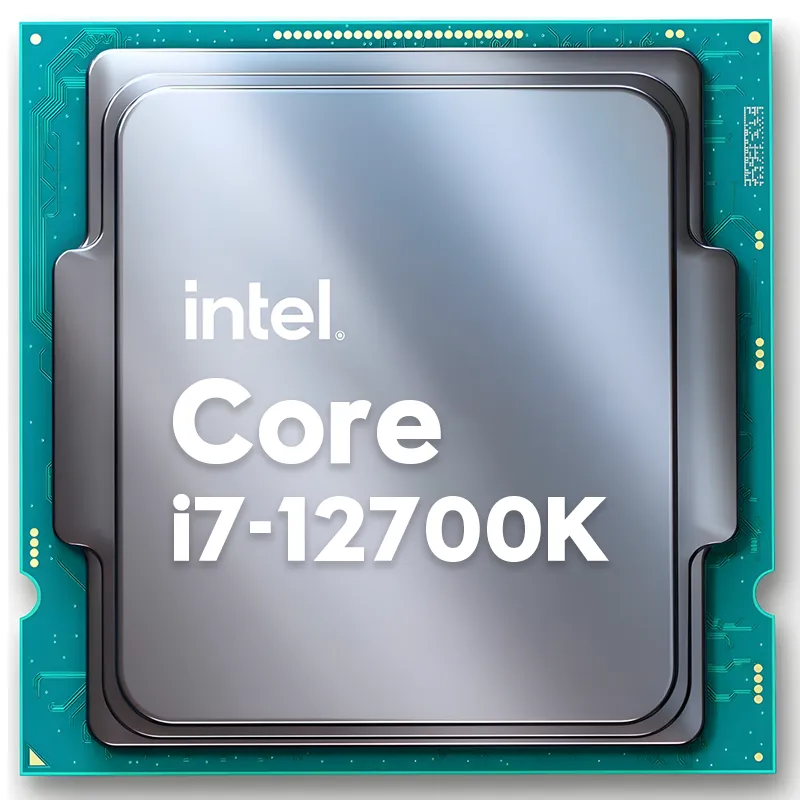

Intel i7-12700K Processor Desktop (25M Cache, up to 5.00 GHz)

Memory Types	DDR5-4800
# of Displays Supported	4
Code Name	Alder Lake
Max # of Memory Channels	2
TDP	125 W
Hyper-Threading Support	Yes
T JUNCTION	100C
Model	BX8071512700K
Total Threads	20
Manufacturing Tech	Intel 7
PCI Express Revision	5.0 and 4.0
OpenCL* Support	3
Shipping Media	BOX
# of Efficient-cores	4
Max CPU Configuration	1
PCI Express Configurations	2×8+4, Up to 1×16+4
ECC Memory Supported	Yes
Brand	Intel
# of Performance-cores	8
Execution Units	32
Intel Quick Sync Video	Yes
Description	The Intel Core i7-12700K processor for desktops offers high-performance computing with its 12-core, 20-thread architecture, designed for intensive tasks and gaming. Featuring Intel's latest Alder Lake architecture, it combines power efficiency with advanced multitasking capabilities, making it ideal for enthusiasts and professionals seeking top-tier performance.
Embedded Options Available	No
Processor Base Frequency	3.60 GHz
Scalability	1S Only
Max Turbo Frequency	5.00 GHz
64-Bit Support	Yes
Series	Intel Core i7 (12th gen)
Package Size	45.0 mm x 37.5 mm
DirectX* Support	12
Max # of PCI Express Lanes	20
Graphics Max Dynamic Frequency	1.50 GHz
Max Memory Bandwidth	76.8 GB/s
Max Operating Temperature	100 C
CPU Socket Type	FCLGA1700
Application	Desktop
Graphics Base Frequency	300 MHz
Graphics Output	DP 1.4a, eDP 1.4b, HDMI 2.1
Cache	25 MB
Part Number	i7-12700K
Total Cores	12
Max Memory Size	128 GB
Products Status	New
Instruction Set	64-bit
Clear Video HD Technology	Yes
OpenGL* Support	4.5
Device ID	0x4680
