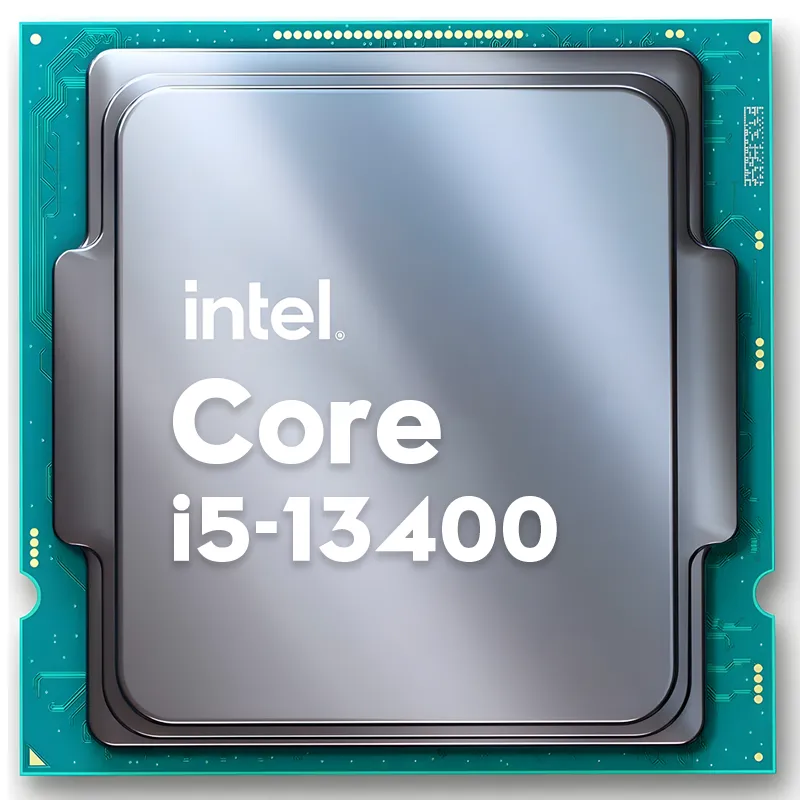

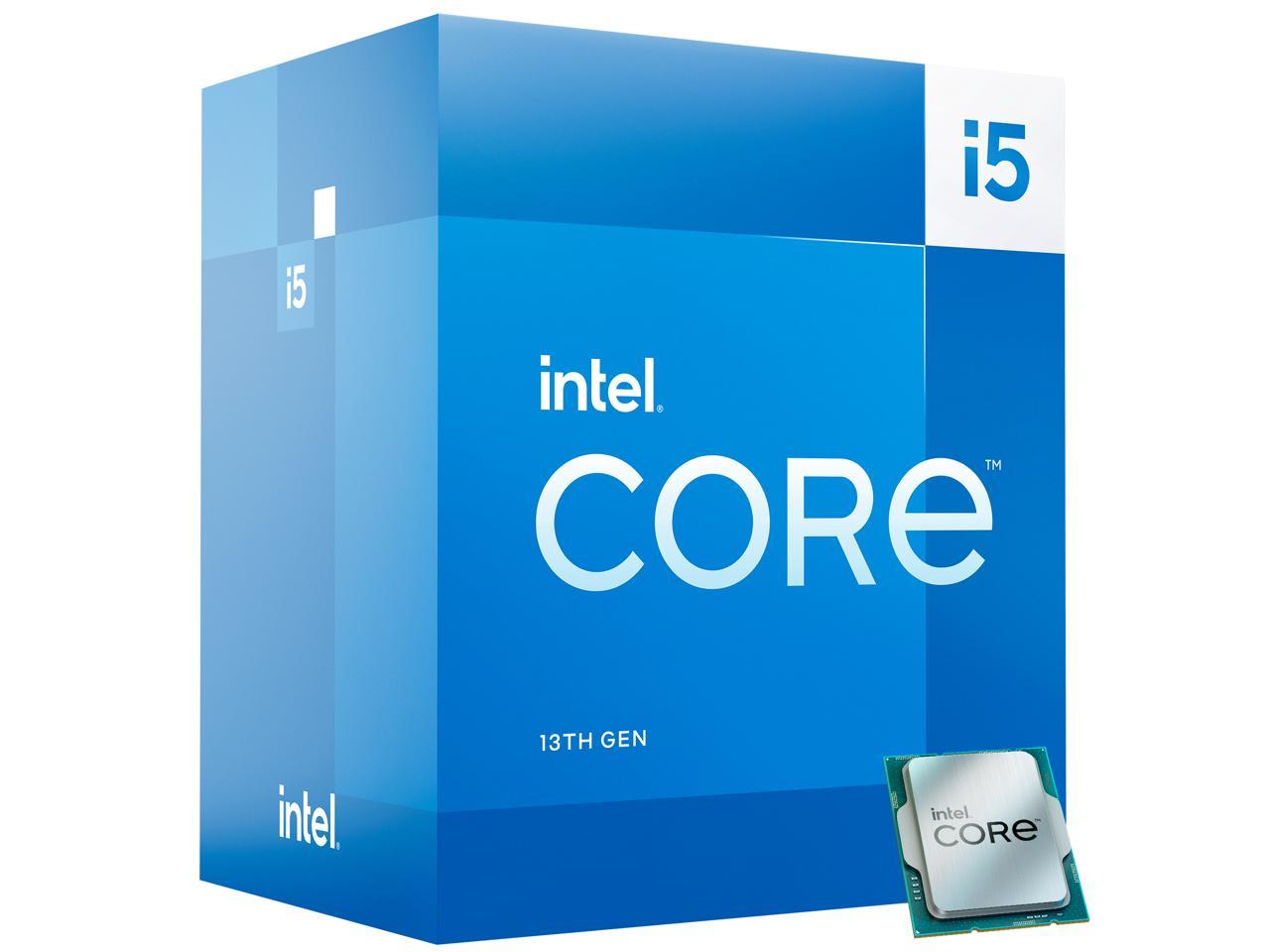

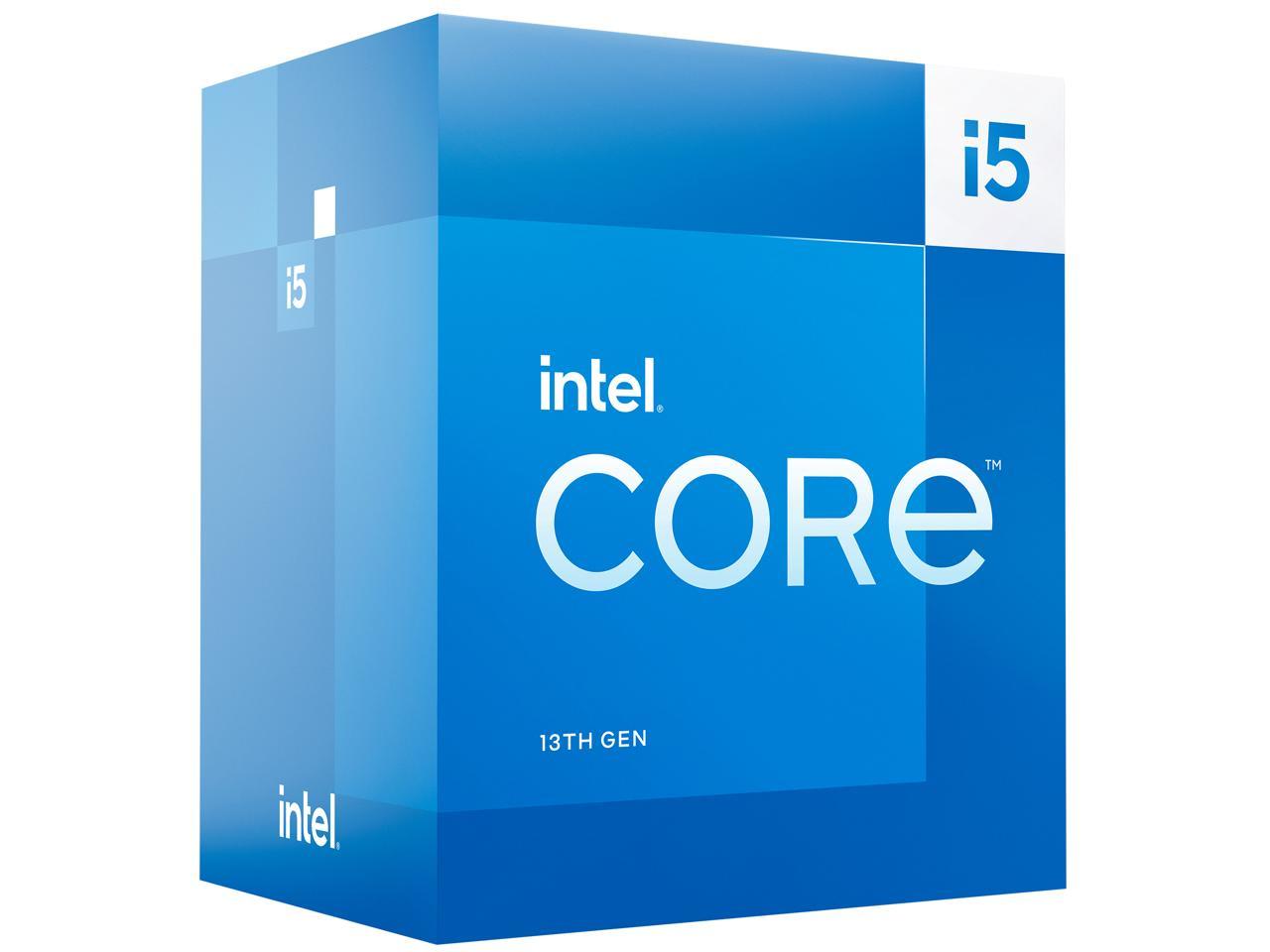

Intel Core i5-13400 Desktop Processor (20M Cache, up to 4.60 GHz)

Memory Types	DDR5-4800
# of Displays Supported	4
Code Name	Products formerly Raptor Lake
Max # of Memory Channels	2
TDP	65 W
Hyper-Threading Support	Yes
T JUNCTION	100C
Model	BX8071513400
Total Threads	16
Manufacturing Tech	Intel 7
PCI Express Revision	5.0 and 4.0
OpenCL* Support	3
Shipping Media	BOX
# of Efficient-cores	4
Max CPU Configuration	1
PCI Express Configurations	2×8+4, Up to 1×16+4
Brand	Intel
# of Performance-cores	6
Execution Units	24
Intel Quick Sync Video	Yes
Description	The Intel Core i5-13400 is a versatile desktop processor offering strong performance for gaming and multitasking. Featuring 6 cores and 12 threads based on Intel's Alder Lake architecture, it delivers efficient operation and competitive power. With a base clock speed of 2.8 GHz and boost speeds up to 4.1 GHz, it's well-suited for budget-conscious users looking to build reliable and capable PC systems.
Embedded Options Available	Yes
Processor Base Frequency	4.60 GHz
Scalability	1S Only
Max Turbo Frequency	4.60 GHz
64-Bit Support	Yes
Series	Intel Core i5 (13th gen)
Package Size	45.0 mm x 37.5 mm
DirectX* Support	12
Max # of PCI Express Lanes	20
Graphics Max Dynamic Frequency	1.55 GHz
Max Memory Bandwidth	76.8 GB/s
Max Operating Temperature	100 C
CPU Socket Type	FCLGA1700
Application	Desktop
Graphics Base Frequency	300 MHz
Graphics Output	DP 1.4a, eDP 1.4b, HDMI 2.1
Cache	20 MB
Part Number	i5-13400
Total Cores	10
Max Memory Size	192 GB
Products Status	New
Instruction Set	64-bit
Clear Video HD Technology	Yes
OpenGL* Support	4.5
Device ID	0x4682/0xA782
