- Form Factor: M.2 22 x 80mm
- Interface: PCI Express NVMe 3.0 x4
- Performance: Sequential Read (up to) 1800 MB/s, Random Read (8GB Span): Up to 150,000 IOPS. Sequential Write (up to) 1800 MB/s, Random Write (8GB Span): Up to 220,000 IOPS
- PCIe Performance at an Affordable Price – Empowered by Intel’s innovative Intel QLC Technology, the Intel SSD 660p offers higher capacities at a lower cost than TLC-based options. With PCIe, the new SSD 660p skips SATA and its limitations to offer up to 2TB in one drive
- Twice the Capacity in Identical Footprints – These client SSDs pack more data than TLC-based storage, allowing up to 2x more capacity in identical footprints. The thin M.2 80mm form factor makes it perfect for notebooks, desktops, and mobile devices that need storage for everyday computing
- Performance and Price That Matters – The SSD 660p hits the marks that matter for client SSDs

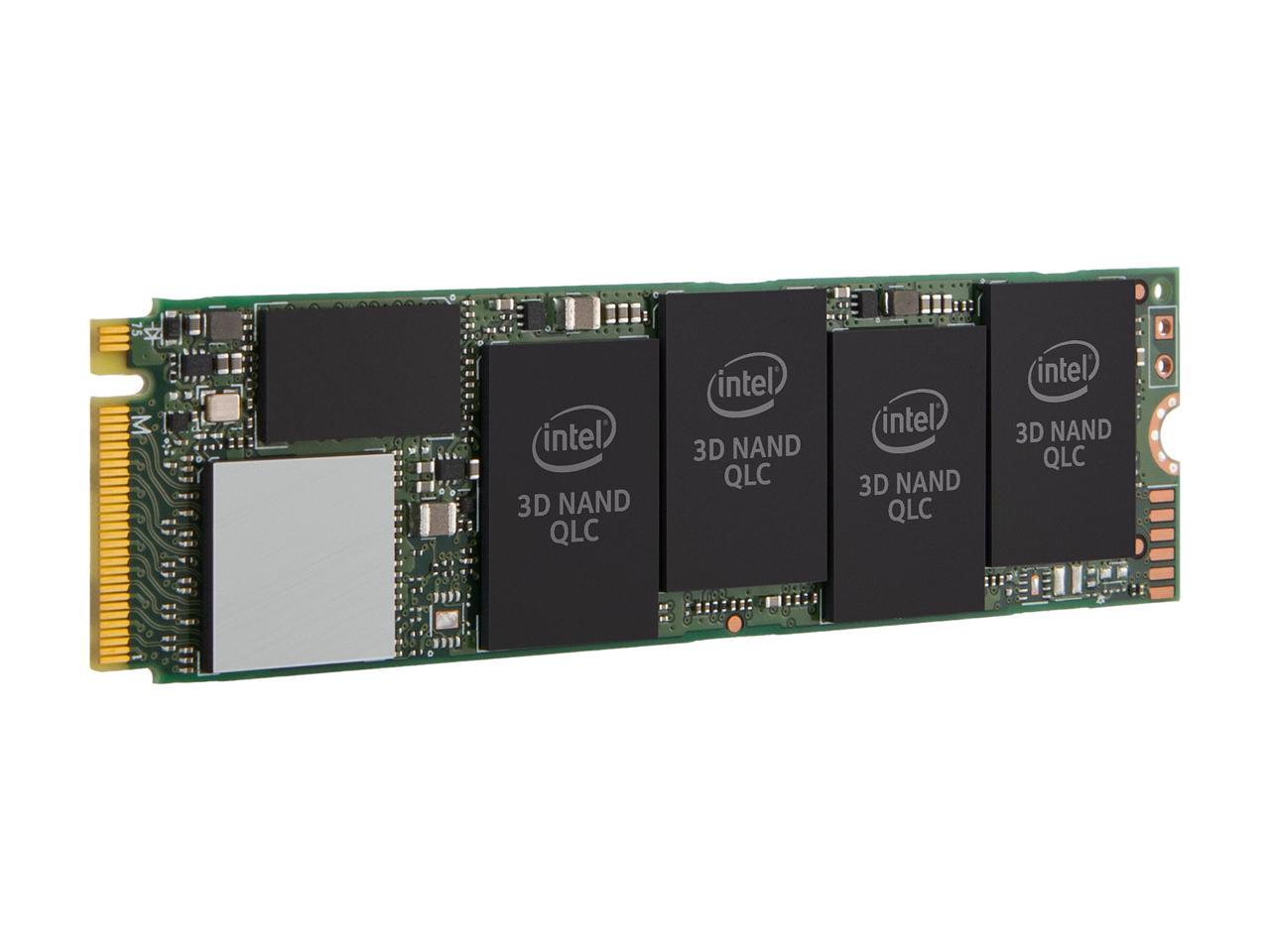

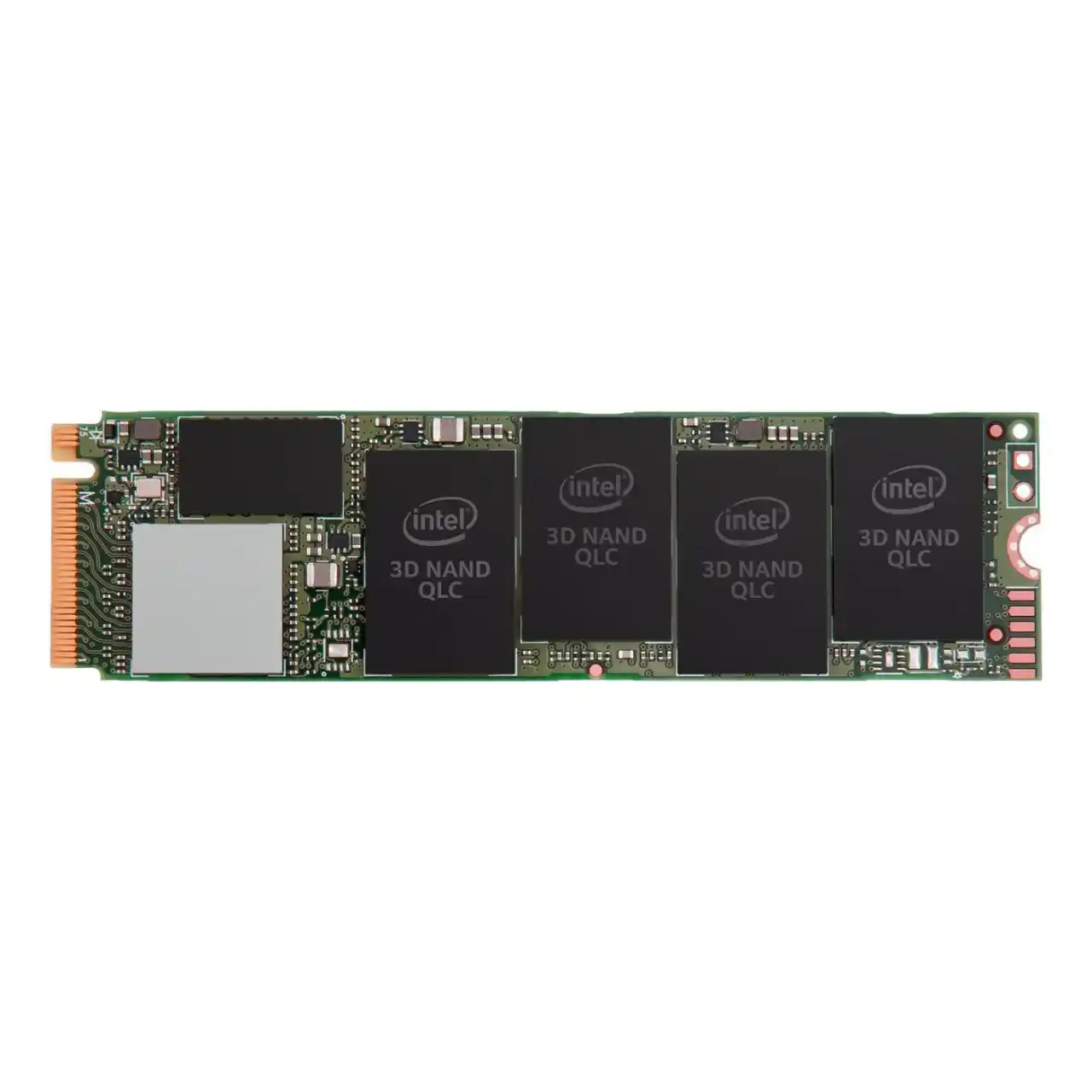

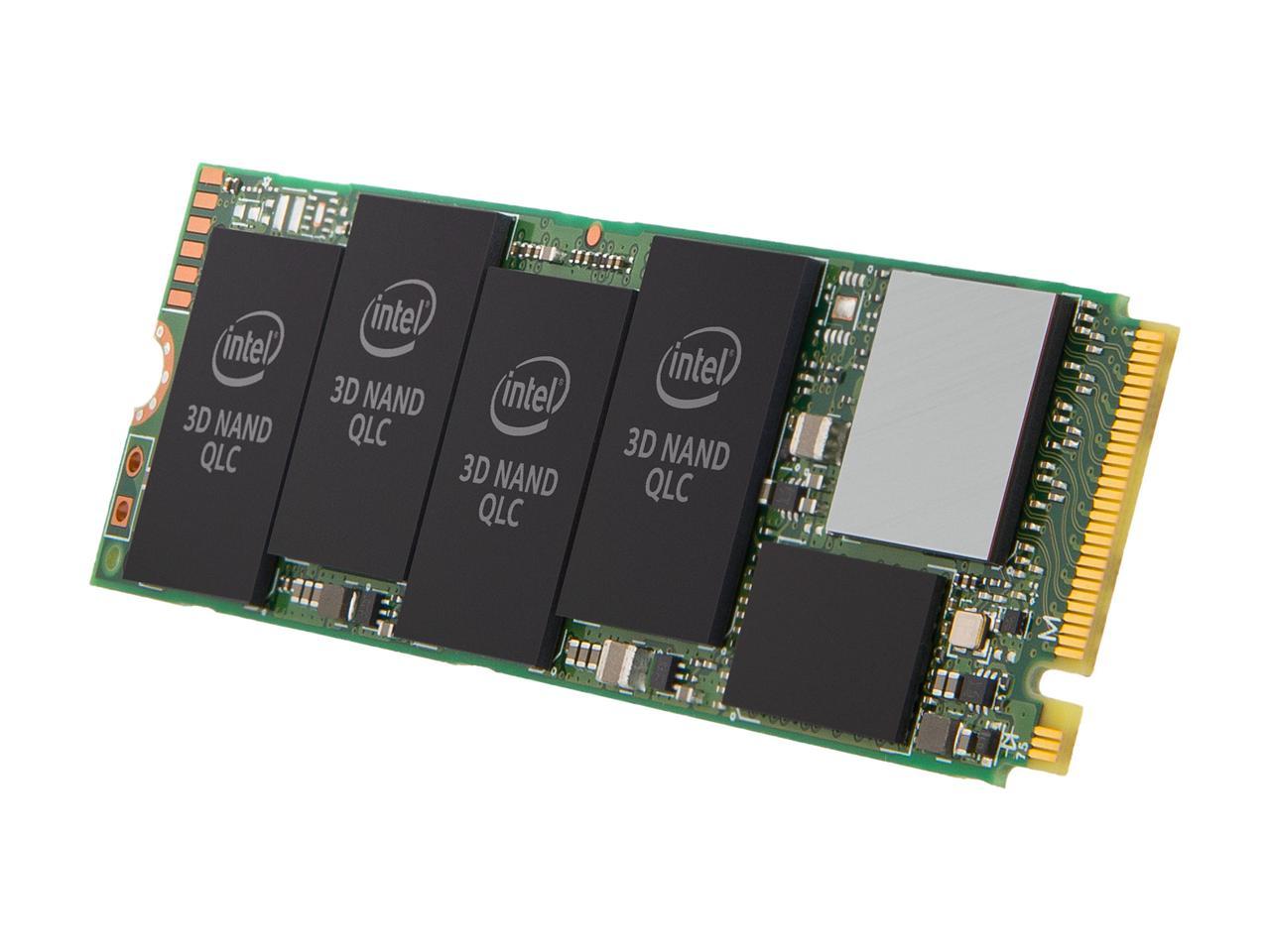

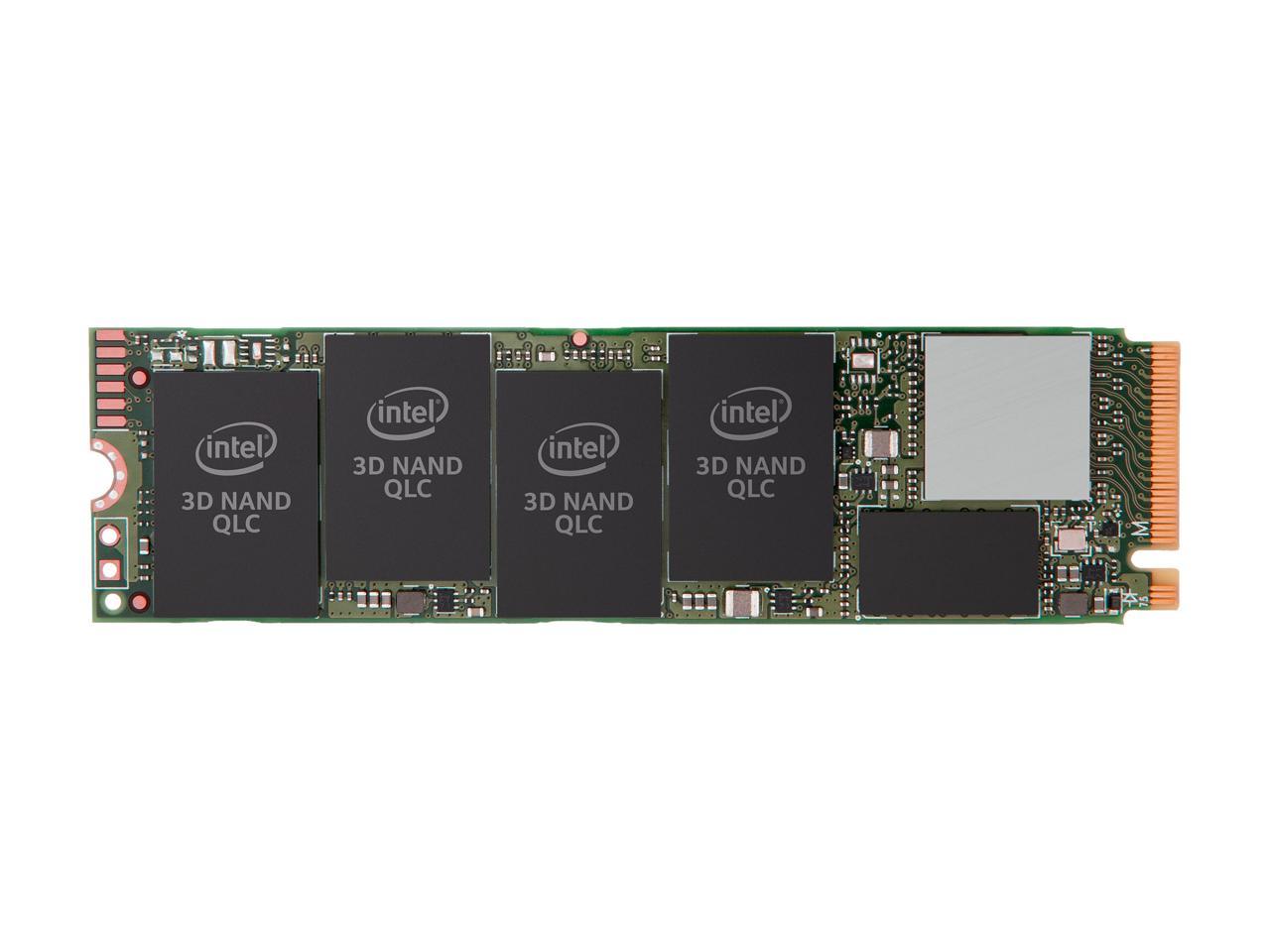

Intel 660p Series M.2 2280 1TB PCIe NVMe 3.0 x4 3D2, QLC Internal Solid State Drive (SSD) SSDPEKNW010T8X1
$Quote1 Pieces ( MOQ )
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Submit Inquiry
Buy more, save more. Contact us for exclusive discounts!
| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Intel 660p |
| Model | SSDPEKNW010T8X1 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 1TB |
| Memory Components | 3D2, QLC |
| Interface | PCIe NVMe 3.0 x4 |
| Max Sequential Read | Up to 1800 MBps |
| Max Sequential Write | Up to 1800 MBps |
| 4KB Random Read | Up to 150,000 IOPS |
| 4KB Random Write | Up to 220,000 IOPS |
| Terabytes Written (TBW) | 200TB |
| MTBF | 1,600,000 hours |
| Features | Compared to TLC's capacity, Intel 3D NAND QLC technology stores more bits per cell, allowing for higher capacity, faster read performance and lower power consumption per drive., Empowered by Intel's innovative Intel's 3D NAND QLC technology, this SSD offers higher capacities at a lower cost than TLC-based storages., This technology makes the most of small spaces by expanding capacities up to 2TB of storage on small M.2 form factor. |
| Power Consumption (Idle) | 40 mW |
| Power Consumption (Active) | 100 mW |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -55°C ~ +95°C |
| Operating Humidity | 5-95% |
| Max Shock Resistance | Non-Operating: 1500G / 0.5 ms, Operating: 1000G / 0.5 ms |
| Max Vibration Resistance | Non-Operating: 3.13 GRMS (5-800 Hz), Operating: 2.17 GRMS (5-700 Hz) |
| Height | 2.38mm |
| Width | 22.00mm |
| Depth | 80.00mm |
| Weight | < 10.00g |
