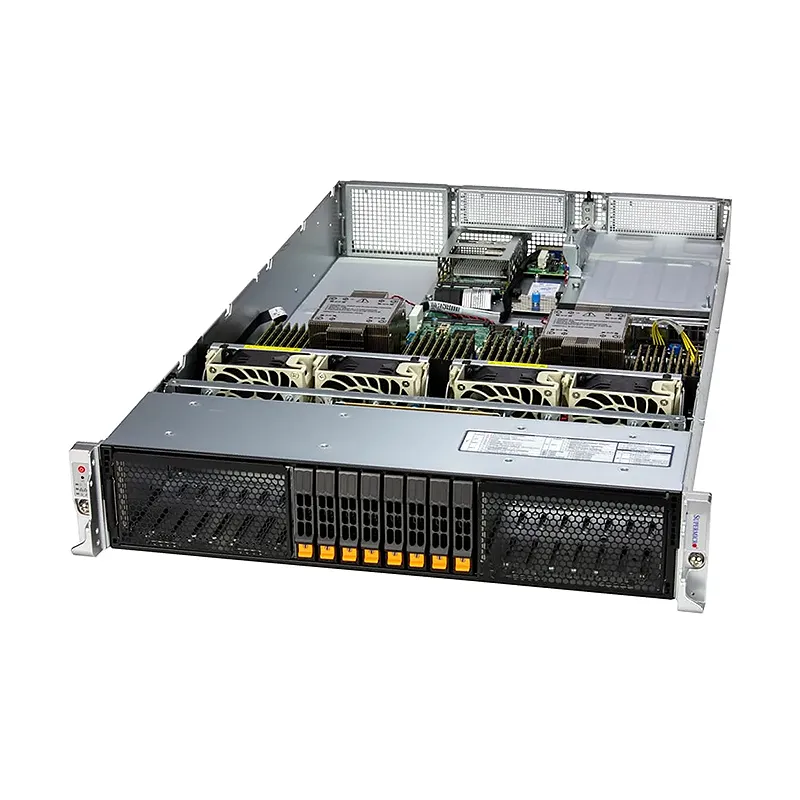

* NOTE: Image may not exactly match the product

Hyper SuperServer SYS-222H-TN (Complete System Only

2U Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots

$Quote1 Piece(MOQ)

SKU SYS-222H-TN Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-222H-TN

Motherboard

  • Super X14DBM-SP

Processor

  • CPU
    Dual Socket E2 (LGA-4710)
    Intel Xeon 6700 series processors with E-cores
  • Core Count
    Up to 144C/144T; Up to 108MB Cache per CPU

GPU

  • Max GPU Count
    Up to 4 double-width or 8 single-width GPUs

System Memory

  • Memory
    Slot Count: 32 DIMM slots
    Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
    Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

On-Board Devices

  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    System on Chip
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(rear)
    2 USB 3.0 ports(Header)
  • Video
    1 VGA port

System BIOS

  • BIOS Type
    AMI 64MB SPI Flash

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-HS219-R000NP

Dimensions and Weight

  • Height
    3.5″ (88 mm)
  • Width
    17.3″ (438.4 mm)
  • Depth
    29.73″ (755.2 mm)
  • Package
    10.12″ (H) x 23.82″ (W) x 37.28″ (D)
  • Weight
    Gross Weight: 66 lbs (30 kg)
    Net Weight: 40 lbs (18.2 kg)
  • Available Color
    Silver

Front Panel

  • LED
    HDD activity
    LAN1 activity
    LAN2 acticity
    Power Fail
    Power status
    System information (overheat/UID)
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Option A* 4 PCIe 5.0 x16 FH/10.5″L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
    Option B* 8 PCIe 5.0 x8 (in x16) FH/10.5″L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
    (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • CXL Support
    Up to 4 CXL 2.0 x16/x8 devices

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
    Option A: Total 16 bays 16 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
    Option B: Total 24 bays 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
    (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

System Cooling

  • Fans
    4x 8cm heavy duty fans with optimal fan speed control
  • Air Shroud
    2 Air Shrouds
  • Liquid Cooling
    Direct to Chip (D2C) Cold Plate (optional)

Power Supply

  • 2x 1200W
    2x 2000W
    2x 1600W
    2x 2600W
    2x 1200W
    2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    12V SB
    Max: 2.1A / Min: 0A
    Output Type
    Backplanes (gold finger)
    2x 2000W
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1000W: 100-120Vac / 50-60Hz
    100-127Vac
    1800W: 200-220Vac / 50-60Hz
    200-240Vac
    2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
    1980W: 220-230Vac / 50-60Hz
    2000W: 230-240Vdc
    2000W: 230-240Vac / 50-60Hz
    +12V
    Max: 83.3A / Min: 0A (100Vac-120Vac)
    Max: 83.3A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 166.7A / Min: 0A (200Vac-240Vac)
    Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 166.7A / Min: 0A (230Vac-240Vac)
    12V SB
    Max: 2.1A / Min: 0A
    Output Type
    Backplanes (gold finger)
    2x 1600W
    2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1600W: 200-240Vac
    1600W: 200-240Vac / 50-60Hz
    1600W: 200-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 83.3A / Min: 0A (100Vac-127Vac)
    Max: 133.3A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3.5A / Min: 0A
    Max: 3.5A
    Output Type
    Backplanes (gold finger)
    2x 2600W
    2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    2600W: 200-240Vac
    2600W: 200-240Vdc (For CQC Only)
    2600W: 200-240Vac / 50-60Hz
    2600W: 200-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
    Max: 216A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3.5A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

Cloud Computing, Enterprise Server, High Performance Computing, Software-defined Storage, Virtualization
Max GPU

2
CPU Type

Intel Xeon 6700 series processors with E-cores
Total PCI-E Slots

8
Drives

8
Drive Form Factors

2.5"
Form Factor

2U
Generation

X14
Interface

NVMe (Native), SAS (Optional), SATA (Optional)
LED

HDD activityLAN1 activityLAN2 acticityPower FailPower statusSystem information (overheat/UID)
Max GPU Count

Up to 4 double-width or 8 single-width GPUs
Air Shroud

2 Air Shrouds
CXL Support

Up to 4 CXL 2.0 x16/x8 devices
Network Connectivity

Via AIOMView AIOM OptionsView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 64MB SPI Flash
Package

10.12" (H) x 23.82" (W) x 37.28" (D)
Liquid Cooling

Direct to Chip (D2C) Cold Plate (optional)
Depth

29.73" (755.2 mm)
Fans

4x 8cm heavy duty fans with optimal fan speed control
Height

3.5" (88 mm)
Buttons

Power On/OffUID button
M.2

2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
Memory

Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMMView Memory Options
Width

17.3" (438.4 mm)
Video

1 VGA port
Core Count

Up to 144C/144T; Up to 108MB Cache per CPU
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
Note

Supports up to 330W TDP CPUs (Air Cooled)Supports up to 330W TDP CPUs (Liquid Cooled)
Weight

Gross Weight: 66 lbs (30 kg)Net Weight: 40 lbs (18.2 kg)
Drive Bays Configuration

Default: Total 8 baysOption A: Total 16 baysOption B: Total 24 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB

2 USB 3.0 ports(rear)2 USB 3.0 ports(Header)
Available Color

Silver
PCI-Express (PCIe) Configuration

Option A*Option B*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options
CPU

Dual Socket E2 (LGA-4710)Intel Xeon 6700 series processors with E-cores
Chipset

System on Chip
Environmental Spec.
