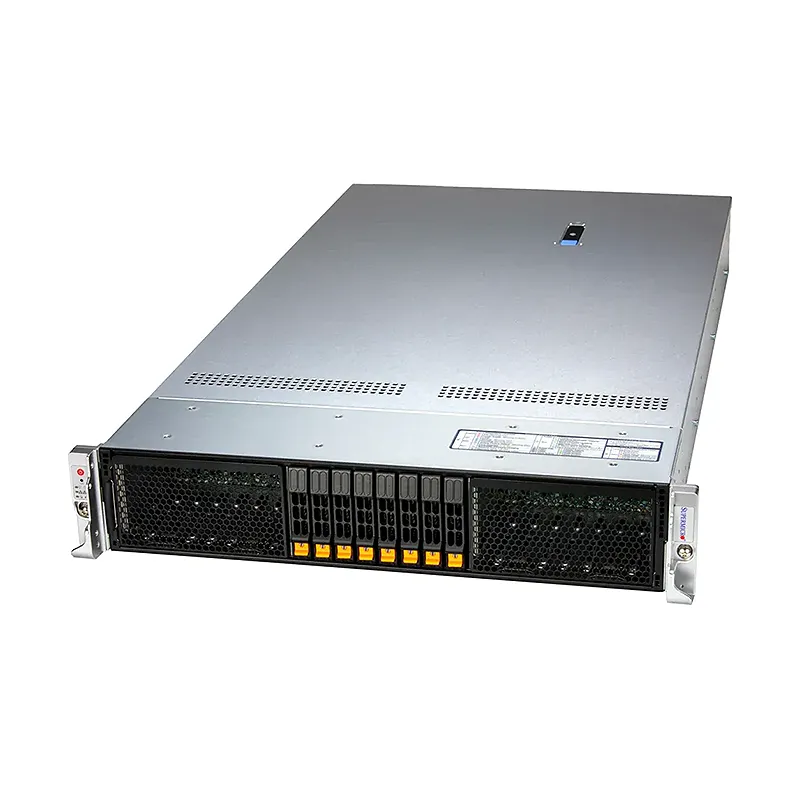

* NOTE: Image may not exactly match the product

Hyper SuperServer SYS-212HA-TN (Complete System Only

2U UP Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

$Quote1 Piece(MOQ)

SKU SYS-212HA-TN Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-212HA-TN

Motherboard

  • Super X14SBH-AP

Processor

  • CPU
    Single Socket BR (LGA-7529)
    Intel Xeon 6900 series processors with P-cores
  • Core Count
    Up to 128C/256T; Up to 504MB Cache

System Memory

  • Memory
    Slot Count: 12 DIMM slots
    Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
    Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM

On-Board Devices

  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    System on Chip
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.2 Gen1 ports(Rear)
  • Video
    1 VGA port

System BIOS

  • BIOS Type
    AMI 64MB SPI Flash

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-HS201-R000NFP

Dimensions and Weight

  • Height
    3.5″ (88.9 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    31.74″ (806.2 mm)
  • Package
    9.96″ (H) x 26.46″ (W) x 43.31″ (D)
  • Weight
    Gross Weight: 75 lbs (34 kg)
    Net Weight: 45 lbs (20.5 kg)
  • Available Color
    Silver

Front Panel

  • LED
    HDD activity
    LAN1 activity
    Power status
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Option A 1 PCIe 5.0 x16 FH/10.5″L double-width slot 1 PCIe 5.0 x8 FHFL slot 1 PCIe 5.0 x16 HHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    Option B 2 PCIe 5.0 x8 FH/10.5″L slots 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
    Option A: Total 24 bays 24 front hot-swap 2.5″ SAS*/SATA* drive bays
    (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)

System Cooling

  • Fans
    6 counter-rotating 60x60x56mm Fan(s)

Power Supply

  • 2x 1200W
    2x 1300W
    2x 1600W
    2x 2600W
    2x 2000W
    2x 2000W
    2x 1200W
    2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    12V SB
    Max: 2.1A / Min: 0A
    Output Type
    Backplanes (gold finger)
    2x 1300W
    2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1300W: -44–65Vdc
    +12V
    Max: 108.3A / Min: 0A
    12V SB
    Max: 2.1A
    Output Type
    Backplanes (gold finger)
    2x 1600W
    2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1600W: 200-240Vac
    1600W: 200-240Vac / 50-60Hz
    1600W: 200-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 83.3A / Min: 0A (100Vac-127Vac)
    Max: 133.3A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3.5A / Min: 0A
    Max: 3.5A
    Output Type
    Backplanes (gold finger)
    2x 2600W
    2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    2600W: 200-240Vac
    2600W: 200-240Vdc (For CQC Only)
    2600W: 200-240Vac / 50-60Hz
    2600W: 200-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
    Max: 216A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3.5A
    Output Type
    Backplanes (gold finger)
    2x 2000W
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1000W: 100-127Vac / 50-60Hz
    1800W: 200-220Vac / 50-60Hz
    2700W: 200-240Vac
    1980W: 220-230Vac / 50-60Hz
    2000W: 220-240Vac / 50-60Hz (for UL only)
    2000W: 230-240Vac / 50-60Hz
    2000W: 230-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 225A / Min: 0A (200Vac-240Vac)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 166A / Min: 0A (230Vac-240Vac)
    12V SB
    Max: 3.5A / Min: 0A
    Output Type
    Backplanes (gold finger)
    2x 2000W
    2x 2000W Redundant (1 + 1) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    2000W: 200-227Vac / 50-60Hz
    +12V
    Max: 166A / Min: 0A (200Vac-277Vac)
    12V SB
    Max: 3.5A / Min: 0A
    Output Type
    Backplanes (gold finger)
    Certification
    [
    Test Report
    ]
Brand

Supermicro
Products Status

New
Applications

AI Inference and Machine Learning, Cloud Computing, Data Center Optimized, Database Processing and High Density Storage, Enterprise Server, Software-defined Storage, Virtualization
Max GPU

1
CPU Type

Intel Xeon 6900 series processors with P-cores
Total PCI-E Slots

3
Drives

8
Drive Form Factors

2.5"
Form Factor

2U
Generation

X14
Interface

NVMe (Native), SAS (Optional), SATA (Optional)
LED

HDD activityLAN1 activityPower statusSystem information
Air Shroud

1 CPU Air Shroud
Network Connectivity

Via AIOMView AIOM OptionsView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 64MB SPI Flash
Package

9.96" (H) x 26.46" (W) x 43.31" (D)
Depth

31.74" (806.2 mm)
Fans

6 counter-rotating 60x60x56mm Fan(s)
Height

3.5" (88.9 mm)
Buttons

Power On/OffUID button
M.2

2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
Memory

Slot Count: 12 DIMM slotsMax Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMMMax Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
Width

17.2" (437 mm)
Video

1 VGA port
Core Count

Up to 128C/256T; Up to 504MB Cache
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
Note

Supports up to 500W TDP CPUs (Air Cooled)
Weight

Gross Weight: 75 lbs (34 kg)Net Weight: 45 lbs (20.5 kg)
Drive Bays Configuration

Default: Total 8 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
USB

2 USB 3.0 ports(rear)
Available Color

Silver
PCI-Express (PCIe) Configuration

Option AOption B
CPU

Single Socket BR (LGA-7529)Intel Xeon 6900 series processors with P-cores
Chipset

System on Chip
Environmental Spec.
