Product SKUs

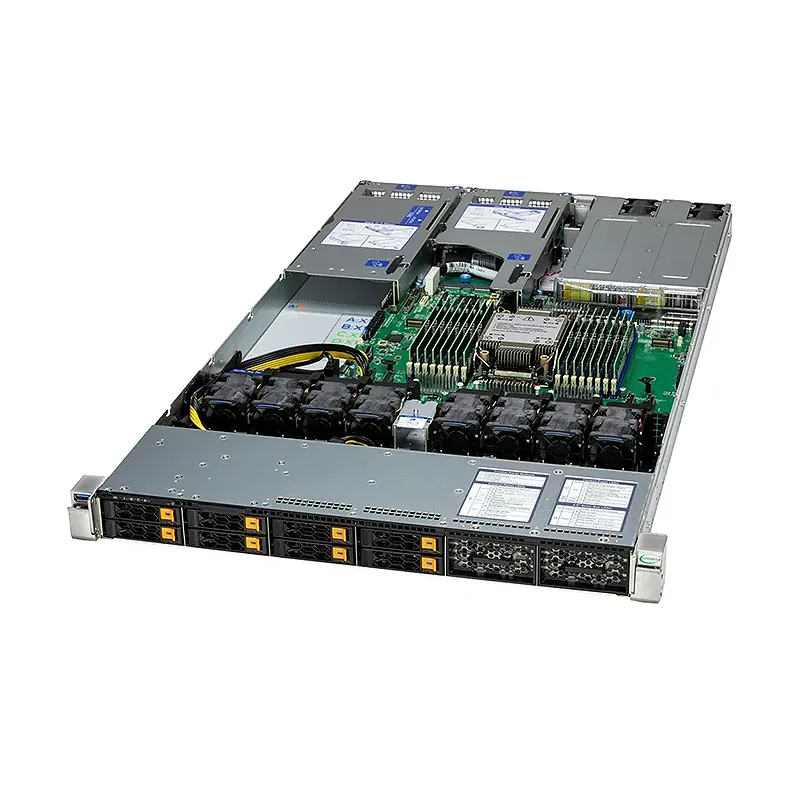

- SuperServerSYS-112H-TN
Motherboard
- Super X14SBH
Processor
- CPU
Single Socket E2 (LGA-4710)
Intel Xeon 6700 series processors with E-cores - Core Count
Up to 144C/144T; Up to 108MB Cache
GPU
- Max GPU Count
Up to 1 double-width or 2 single-width GPUs
- CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
On-Board Devices
- NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- Chipset
System on Chip
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
1 USB 3.0 port(front) - Video
1 VGA port
System BIOS
- BIOS Type
AMI 64MB SPI Flash
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-HS101-R000NFP
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
30.66″ (778.7 mm)
- Package
8.82″ (H) x 26.46″ (W) x 43.31″ (D)
- Weight
Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg) - Available Color
Silver
Front Panel
- LED
HDD activity
LAN1 activity
Power status
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x16 FHHL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays 4 front hot-swap 2.5″ SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
System Cooling
- Fans
8 counter-rotating 40x40x56mm Fan(s)
- Air Shroud
1 CPU Air Shroud
Power Supply
- 2x 1200W
2x 1300W
2x 1600W
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
2x 1300W
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1300W: -44–65Vdc
+12V
Max: 108.3A / Min: 0A
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Max: 3.5A
Output Type
Backplanes (gold finger)
