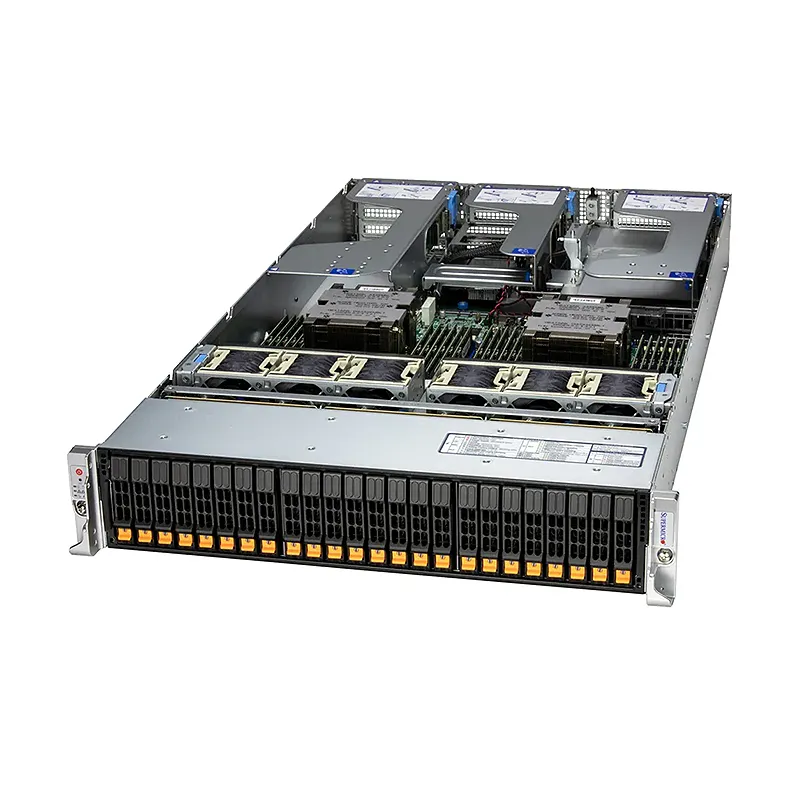

Hyper A+ Server AS -2126HS-TN (Complete System Only

2U Hyper with up to 24 hot-swap 2.5″ NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

$Quote1 Piece(MOQ)

SKU AS -2126HS-TN Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • A+ ServerAS -2126HS-TN

Motherboard

  • Super H14DSH

Processor

  • CPU
    Dual processor(s)
    AMD EPYC 9005/9004 Series Processors
  • Core Count
    Up to 384C/768T

GPU

  • Max GPU Count
    Up to 3 double-width GPUs
  • GPU-GPU Interconnect
    PCIe

System Memory

  • Memory
    Slot Count: 24 DIMM slots
    Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
    Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)

On-Board Devices

  • Chipset
    System on Chip
  • Network Connectivity
    Via AIOM
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • TPM
    1 TPM Onboard/port 80

System BIOS

  • BIOS Type
    AMI 64MB SPI Flash EEPROM
  • BIOS Features
    Plug and Play (PnP)
    UEFI 2.8
    USB Keyboard support
    ACPI 6.5
    SMBIOS 3.7 or later

Management

  • Power configurations
    ACPI/APM Power Management
    Power-on mode control for AC power loss recovery
    Power button override mechanism,

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-HS201-R000NFP

Dimensions and Weight

  • Height
    3.5″ (88.9 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    31.74″ (806.2 mm)
  • Package
    9.96″ (H) x 26.46″ (W) x 43.31″ (D)
  • Weight
    Gross Weight: 75 lbs (34 kg)
    Net Weight: 45 lbs (20.5 kg)
  • Available Color
    Silver

Front Panel

  • LED
    HDD activity
    LAN1 activity
    Power status
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Option A* 4 PCIe 5.0 x16 FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    Option B* 8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
    (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • CXL Support
    Up to 4 CXL 2.0 x16 devices

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SATA* drive bays
    Option A: Total 24 bays 24 front hot-swap 2.5″ NVMe*/SATA* drive bays
    (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

System Cooling

  • Fans
    6 counter-rotating 60x60x56mm Fan(s)

Power Supply

  • 2x 2000W
    2x 1300W
    2x 1600W
    2x 2600W
    2x 1200W
    2x 2000W
    2x 2000W
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1000W: 100-127Vac / 50-60Hz
    1800W: 200-220Vac / 50-60Hz
    2700W: 200-240Vac
    1980W: 220-230Vac / 50-60Hz
    2000W: 220-240Vac / 50-60Hz (for UL only)
    2000W: 230-240Vac / 50-60Hz
    2000W: 230-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 225A / Min: 0A (200Vac-240Vac)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 166A / Min: 0A (230Vac-240Vac)
    12V SB
    Max: 3.5A / Min: 0A
    Output Type
    Backplanes (gold finger)
    2x 1300W
    2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1300W: -44–65Vdc
    +12V
    Max: 108.3A / Min: 0A
    12V SB
    Max: 2.1A
    Output Type
    Backplanes (gold finger)
    2x 1600W
    2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1600W: 200-240Vac
    1600W: 200-240Vac / 50-60Hz
    1600W: 200-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 83.3A / Min: 0A (100Vac-127Vac)
    Max: 133.3A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3.5A / Min: 0A
    Max: 3.5A
    Output Type
    Backplanes (gold finger)
    2x 2600W
    2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    2600W: 200-240Vac
    2600W: 200-240Vdc (For CQC Only)
    2600W: 200-240Vac / 50-60Hz
    2600W: 200-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
    Max: 216A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3.5A
    Output Type
    Backplanes (gold finger)
    2x 1200W
    2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 230-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    12V SB
    Max: 2.1A / Min: 0A
    Output Type
    Backplanes (gold finger)
    2x 2000W
    2x 2000W Redundant (1 + 1) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    2000W: -48–60Vdc / 50-60Hz
    +12V
    Max: 166.6A / Min: 0A
    12V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

AI Inference and Machine Learning, Cloud Computing, Enterprise Server, High Performance Computing (HPC), Software-defined Storage, Virtualization
Max GPU

2
CPU Type

AMD EPYC 9005/9004 Series Processors
Total PCI-E Slots

8
Drives

8
Drive Form Factors

2.5"
Form Factor

2U
Generation

H14
Interface

NVMe (Optional), SATA (Optional)
LED

HDD activityLAN1 activityPower statusSystem information
Max GPU Count

Up to 3 double-width GPUs
CXL Support

Up to 4 CXL 2.0 x16 devices
Network Connectivity

Via AIOMView AIOM OptionsView AOC Options
BIOS Features

Plug and Play (PnP)UEFI 2.8USB Keyboard supportACPI 6.5SMBIOS 3.7 or later
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 64MB SPI Flash EEPROM
Package

9.96" (H) x 26.46" (W) x 43.31" (D)
Depth

31.74" (806.2 mm)
Fans

6 counter-rotating 60x60x56mm Fan(s)
Height

3.5" (88.9 mm)
Buttons

Power On/OffUID button
M.2

2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Memory
GPU-GPU Interconnect

PCIe
Width

17.2" (437 mm)
Video

1 VGA port
Core Count

Up to 384C/768T
Note

Supports up to 500W TDP CPUs **Air Cooled CPUs with TDP over 400W only supported under specific conditions. Contact a Supermicro representative for details.
Weight

Gross Weight: 75 lbs (34 kg)Net Weight: 45 lbs (20.5 kg)
Drive Bays Configuration

Default: Total 8 baysOption A: Total 24 bays(*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
USB

2 USB 3.0 ports(rear)
Available Color

Silver
PCI-Express (PCIe) Configuration

Option A*Option B*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options
IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
TPM

1 TPM Onboard/port 80
CPU

Dual processor(s)AMD EPYC 9005/9004 Series Processors
Chipset

System on Chip
Environmental Spec.
