Product SKUs

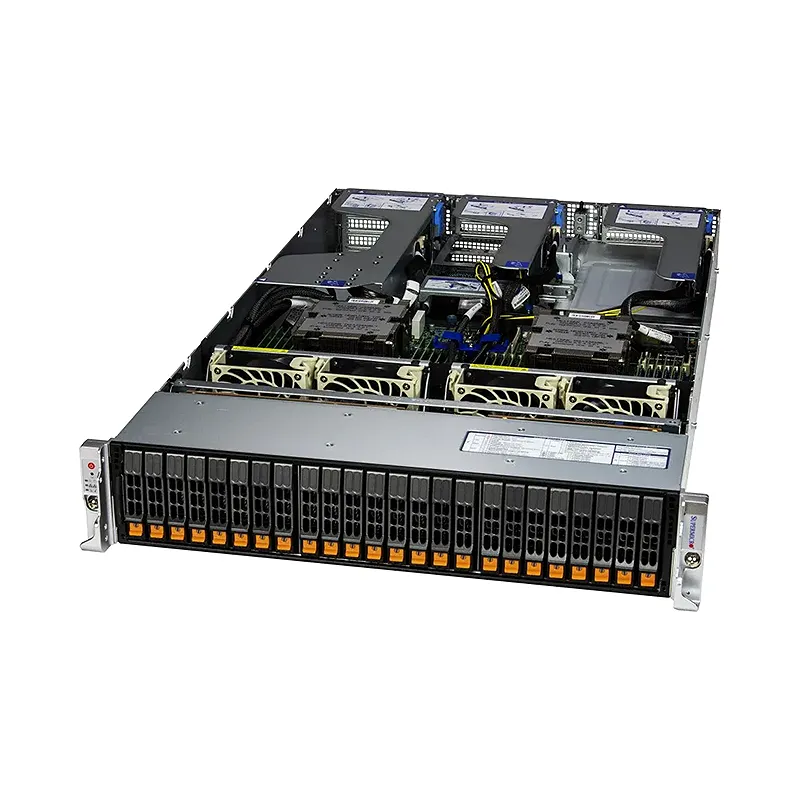

- A+ ServerAS -2125HS-TNR
Motherboard
- Super H13DSH
Processor
- CPU
Dual processor(s)
AMD EPYC 9004/9005 Series Processors (* AMD EPYC 9005 Series drop-in support requires board revision 2.x) - Core Count
Up to 320C/640T
System Memory
- Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) - Memory Voltage
1.1V
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
- Video
1 VGA port
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Management
- Power configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Chassis
- Form Factor
2U
- Model
CSE-HS219-R1K63P-A
Dimensions and Weight
- Height
3.5″ (88.9 mm)
- Width
17.2″ (437 mm)
- Depth
29.9″ (760 mm)
- Package
10.4″ (H) x 23.8″ (W) x 43.6″ (D)
- Weight
Gross Weight: 72 lbs (32.7 kg)
Net Weight: 39 lbs (17.7 kg) - Available Color
Black front & silver body
Front Panel
- LED
HDD activity
LAN1 activity
Power status
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option A* 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B* 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option C* 2 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option D* 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option E* 4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option F* 4 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option G* 3 PCIe 5.0 x16 (in x16) FHFL double-width slots 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option H* 2 PCIe 5.0 x16 (in x16) FHFL double-width slots 4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option I* 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 6 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 24 bays 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables) - M.2
2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
- Fans
4x 8cm heavy duty fans with optimal fan speed control
- Air Shroud
2 Air Shrouds
Power Supply
- 2x 1600W
2x 1600W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Max: 3.5A
Output Type
Backplanes (gold finger)
