| Brand | Supermicro |
|---|---|
| Products Status | New |
| Applications | AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Software-defined Storage, Virtualization |
| Max GPU | 1 |
| CPU Type | AMD EPYC 9004/9005 Series Processors |
| Total PCI-E Slots | 8 |
| Drives | 24 |
| Drive Form Factors | 2.5" |
| Form Factor | 2U |
| Generation | H13 |
| Interface | NVMe (Optional), SAS (Optional), SATA (Optional) |
| LED | HDD activityLAN1 activityPower statusSystem information |
| Max GPU Count | Up to 2 double-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Supported GPU | NVIDIA PCIe: RTX A6000, RTX 6000 Ada GenerationView GPU Options |
| Air Shroud | 1 Air Shroud |
| Network Connectivity | Via AIOMView AIOM OptionsView AOC Options |
| BIOS Features | ACPI 6.4Plug and Play (PnP)SMBIOS 3.5 or laterUEFI 2.8USB Keyboard support |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) |
| Depth | 29.9" (760 mm) |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Height | 3.5" (88.9 mm) |
| Buttons | Power On/OffUID button |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280)1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280) |
| Memory | |
| GPU-GPU Interconnect | PCIe |
| Width | 17.2" (437 mm) |
| Video | 1 VGA port |
| Core Count | Up to 160C/320T |
| Note | |
| Weight | Gross Weight: 72 lbs (32.7 kg)Net Weight: 39 lbs (17.7 kg) |
| Drive Bays Configuration | Default: Total 24 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| USB | 2 USB 3.0 ports(rear) |
| Available Color | Black front & silver body |
| PCI-Express (PCIe) Configuration | DefaultOption A*Option B*Option C*Option D*Option E*Option F*Option G*Option H*Option I*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options |
| CPU | Single processor(s)AMD EPYC 9004/9005 Series Processors |
| Chipset | System on Chip |
| Memory Voltage | 1.1V |
| Environmental Spec. |
* NOTE: Image may not exactly match the product

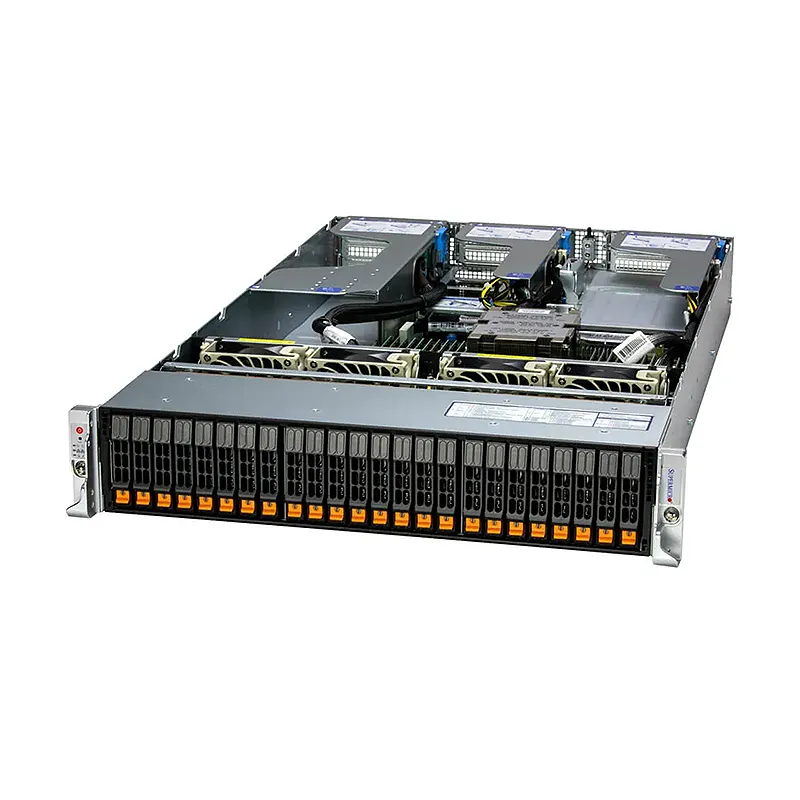

Hyper A+ Server AS -2115HS-TNR (Complete System Only
2U UP Hyper with 24 hot-swap 2.5″ drive bays and 1 PCIe 5.0 slot
