| Brand | Supermicro |
|---|---|
| Products Status | New |
| Applications | AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Software-defined Storage, Virtualization |
| Max GPU | 2 |
| CPU Type | AMD EPYC 9004/9005 Series Processors |
| Total PCI-E Slots | 8 |
| Drives | 12 |
| Drive Form Factors | 3.5"/2.5" |
| Form Factor | 2U |
| Generation | H13 |
| Interface | NVMe (Optional), SAS (Optional), SATA (Optional) |
| LED | HDD activityLAN1 activityPower statusSystem information |
| Max GPU Count | Up to 2 double-width or 2 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Supported GPU | A100View GPU Options, A16, A40, L4, L40, L40S, NVIDIA PCIe: H100, RTX 4000, RTX 6000 Ada Generation, RTX A2000, RTX A5000, RTX A6000 |
| Air Shroud | 2 Air Shrouds |
| Network Connectivity | Via AIOMView AIOM OptionsView AOC Options |
| BIOS Features | ACPI 6.4Plug and Play (PnP)SMBIOS 3.5 or laterUEFI 2.8USB Keyboard support |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) |
| Depth | 31.6" (803 mm) |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Height | 3.5" (88.9 mm) |
| Buttons | Power On/OffUID button |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| Memory | |
| GPU-GPU Interconnect | PCIe |
| Width | 17.2" (437 mm) |
| Video | 1 VGA port |
| Core Count | Up to 320C/640T |
| Note | |
| Weight | Gross Weight: 69 lbs (31.3 kg)Net Weight: 39 lbs (17.7 kg) |
| Drive Bays Configuration | Default: Total 12 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| USB | 2 USB 3.0 ports(rear) |
| Available Color | Black front & silver body |
| PCI-Express (PCIe) Configuration | DefaultOption A*Option B*Option C*Option D*Option E*Option F*Option G*Option H*Option I*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options |
| CPU | Dual processor(s)AMD EPYC 9004/9005 Series Processors |
| Chipset | System on Chip |
| Memory Voltage | 1.1V |
| Environmental Spec. |

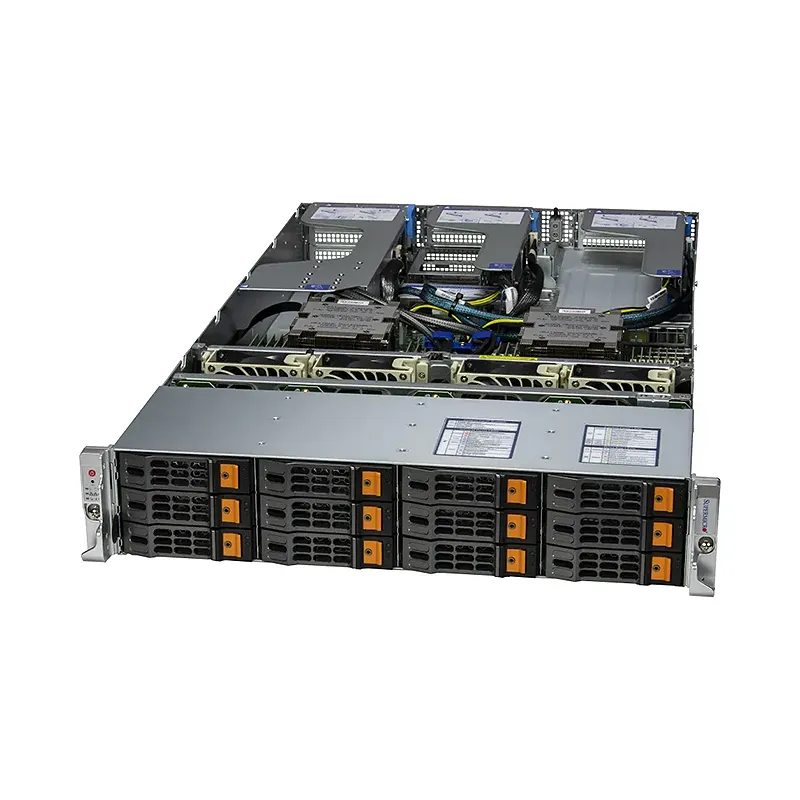

* NOTE: Image may not exactly match the product
Hyper A+ Server AS -2025HS-TNR (Complete System Only
2U Hyper with12 hot-swap 3.5″ NVMe/SAS/SATA bays and up to 4 PCIe 5.0 x16 slots
