Product SKUs

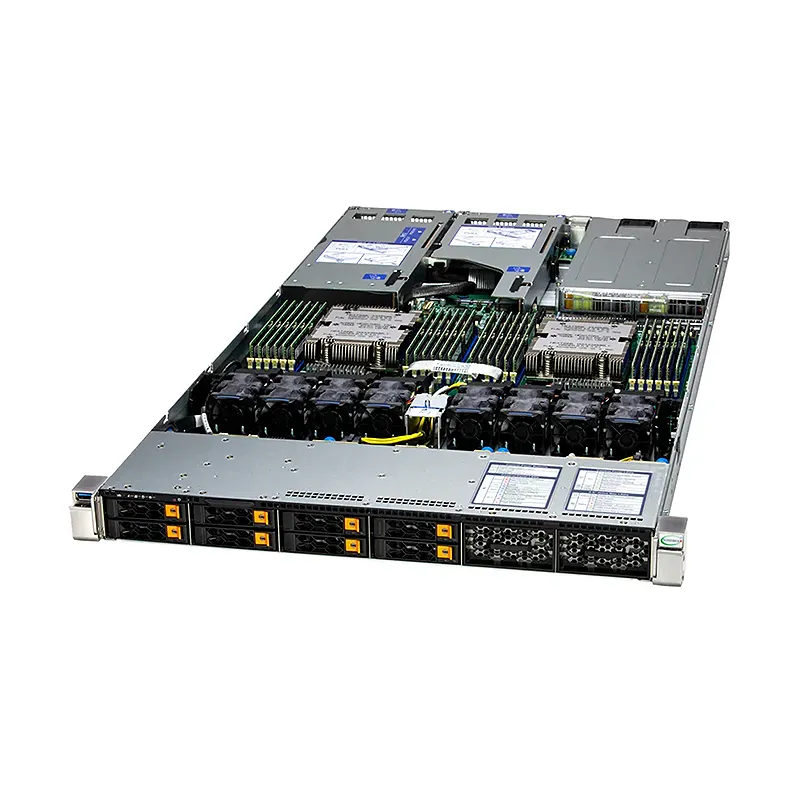

- A+ ServerAS -1126HS-TN
Motherboard
- Super H14DSH
Processor
- CPU
Dual processor(s)
AMD EPYC 9005/9004 Series Processors - Core Count
Up to 384C/768T
System Memory
- Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
Via AIOM
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
1 USB 3.0 port(front) - Video
1 VGA port
- TPM
1 TPM Onboard/port 80
System BIOS
- BIOS Type
AMI 64MB SPI Flash EEPROM
- BIOS Features
Plug and Play (PnP)
UEFI 2.8
USB Keyboard support
ACPI 6.5
SMBIOS 3.7 or later
Management
- Power configurations
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Chassis
- Form Factor
1U Rackmount
- Model
CSE-HS101-R000NFP
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
30.66″ (778.7 mm)
- Package
8.82″ (H) x 26.46″ (W) x 43.31″ (D)
- Weight
Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg) - Available Color
Silver
Front Panel
- LED
HDD activity
LAN1 activity
Power status
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- CXL Support
Up to 4 CXL 2.0 x16 devices
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SATA* drive bays
(*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
- Fans
8 counter-rotating 40x40x56mm Fan(s)
Power Supply
- 2x 1600W
2x 1300W
2x 2600W
2x 1200W
2x 2000W
2x 2000W
2x 1600W
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Max: 3.5A
Output Type
Backplanes (gold finger)
2x 1300W
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1300W: -44–65Vdc
+12V
Max: 108.3A / Min: 0A
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
2x 2600W
2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
Max: 3.5A
Output Type
Backplanes (gold finger)
2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
2000W: -48–60Vdc / 50-60Hz
+12V
Max: 166.6A / Min: 0A
12V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
2x 2000W
2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2700W: 200-240Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 225A / Min: 0A (200Vac-240Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Output Type
Backplanes (gold finger)
