Product SKUs

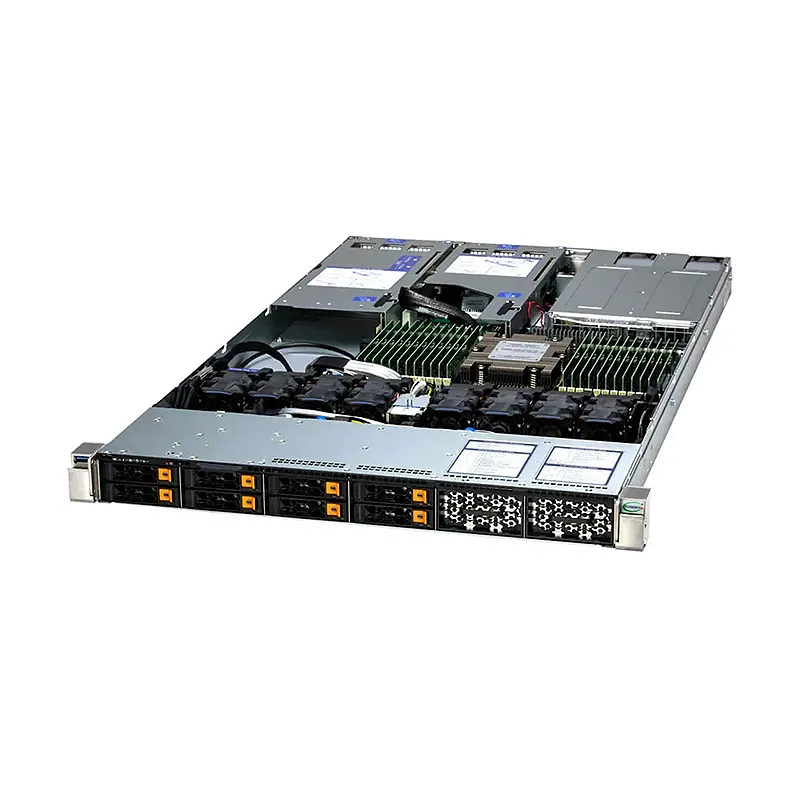

- A+ ServerAS -1115HS-TNR
- A+ ServerAS -1115HS-TNR-G1Gold Series version with pre-configured components
Motherboard
- Super H13SSH
Processor
- CPU
Single processor(s)
AMD EPYC 9004/9005 Series Processors (* AMD EPYC 9005 Series drop-in support requires board revision 2.x) - Core Count
Up to 160C/320T
GPU
- Max GPU Count
Up to 1 double-width GPU
- Supported GPU
NVIDIA PCIe: H100
- CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
- GPU-GPU Interconnect
PCIe
System Memory
- Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor) - Memory Voltage
1.1V
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
Via AIOM
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
1 USB 3.0 port(front) - Video
1 VGA port
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Management
- Power configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Chassis
- Form Factor
1U
- Model
CSE-HS119-R1K24P2-A
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
29.4″ (747 mm)
- Package
8.1″ (H) x 23.8″ (W) x 40.6″ (D)
- Weight
Gross Weight: 51 lbs (23.1 kg)
Net Weight: 32 lbs (14.5 kg) - Available Color
Black front & silver body
Front Panel
- LED
HDD activity
LAN1 activity
Power status
System information - Buttons
Power On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280)
1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280)
System Cooling
- Fans
8 counter-rotating 40x40x56mm Fan(s)
Power Supply
- 2x 1200W
2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
