Description
$Quote1 Piece(MOQ)

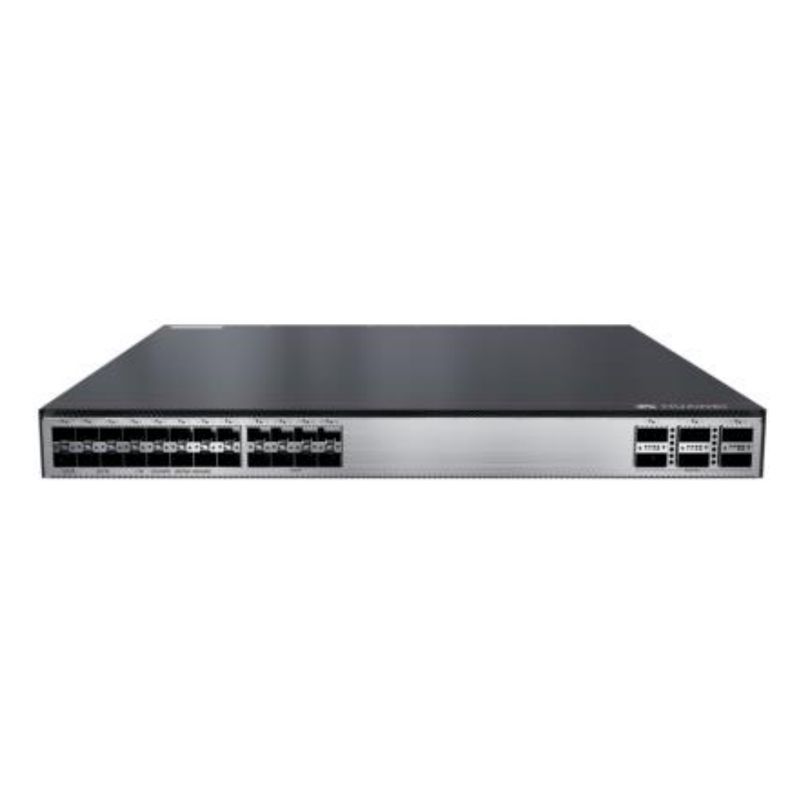

Huawei CloudEngine S6730-H series full-featured 10 GE switches are Huawei’s new-generation fixed switches ,to provide 10 GE downlink ports as well as 100 GE uplink ports.
Description
| Product Code | S6730-H24X6C |
| Fixed ports | 24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height(U) | 1U |
|
Input voltage |
AC Power
– Rated AC voltage: 100V to 240V AC; 50/60 Hz – Max. AC voltage: 90V to 290V AC; 45?C65 Hz DC Power – Rated DC voltage: ?C48V?C60V – Max. DC voltage-38.4V DC-72V DC |
| Input current | AC 600WMax 8A
DC 1000WMax 30A |
| Maximum power consumption | 231W |
| Minimum power consumption | 97W |
Additional information
| Weight (with packaging) | 8.9 kg (19.62 lb) |
|---|---|
| Power supply surge protection | Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 2 kV in differential mode, 4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.) |
| Mean time between failures (MTBF) | 62.27 years |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Warranty | 1 Year |
| Operating temperature | -5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.) |
| Height [mm] | 43.6 mm |
| Relative humidity | 5% to 95%, noncondensing |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 149 W |
| RPS | Not supported |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Noise under normal temperature (27C, sound power) | < 65 dB(A) |
| Availability | > 0.99999 |
| Depth [mm] | 420.0 mm |
| RTC | Supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Mean time to repair (MTTR) | 2 hours |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Brand | Huawei |
| Maximum power consumption (100% throughput, full speed of fans) | 254 W |
| PoE | Not supported |
| Products Status | New |
| Memory (RAM) | 4 GB |
| Service port surge protection | N/A |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports), Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports) |
| PN | 02352FSG |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Model | S6730-H24X6C |
| Chassis height [U] | 1 |
| Fixed Port | 24*10GE SFP+ ports 6*40GE/100GE QSFP28 optical ports |
| Wide [mm] | 442.0 mm |
