Additional information
| Weight (with packaging) | 7.39 kg (16.29 lb) |
|---|---|
| Power supply surge protection | Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 2 kV in differential mode, 4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.) |
| Mean time between failures (MTBF) | 59.88 years |
| Flash | 512 MB in total. To view the available flash memory size, run thedisplay versioncommand. |
| Warranty | 1 Year |
| Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 51 W |
| Operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Height [mm] | 43.7 mm |
| Relative humidity | 5% to 95%, noncondensing |
| RPS | Not supported |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Noise under normal temperature (27C, sound power) | < 58.9 dB(A) |
| Availability | > 0.99999 |
| Depth [mm] | 420.1mm |
| RTC | Supported |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Mean time to repair (MTTR) | 2 hours |
| Fixed port | 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Brand | Huawei |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 65 W, 100% PoE loads: 847 W (PoE: 720 W) |
| PoE | Supported |
| Products Status | New |
| Memory (RAM) | 1 GB |
| Service port surge protection | Common mode: 7 kV |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| PN | 98010940 |
| Certification | EMC certification, Safety certification, Manufacturing certification |

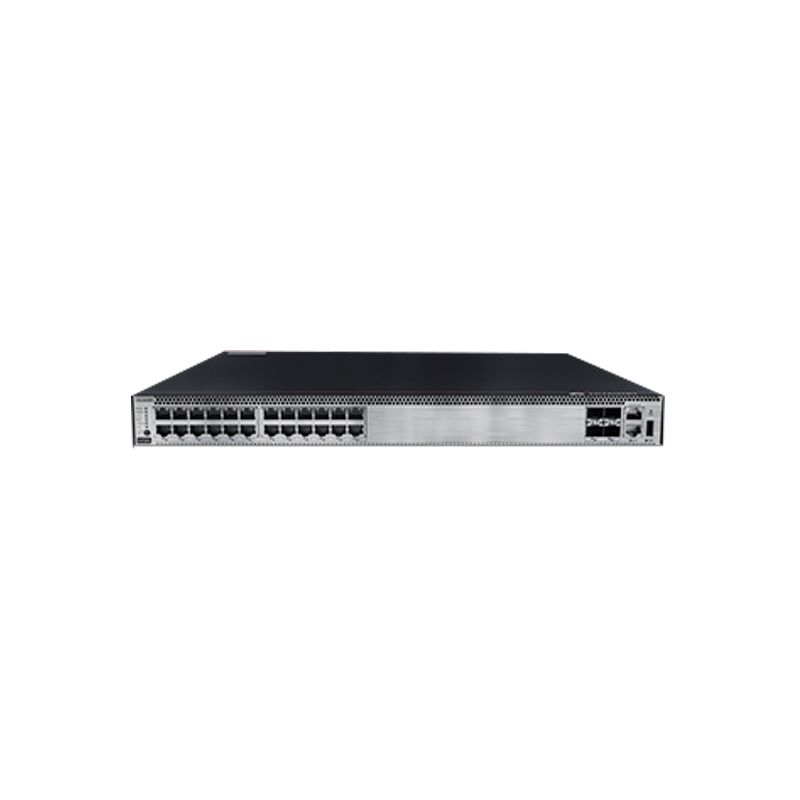

| Model | S5735-S24P4X |
| Chassis height [U] | 1 |
| Wide [mm] | 442.1mm |
