Additional information
| Airflow direction | Air intake from left and front, air exhaustion from right |
|---|---|
| Maximum heat dissipation [BTU/hour] | Not providing the PoE function: 133.41, 100% PoE loads: 556.51 |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Storage temperature [C(F)] | -40C to +70C (-40F to +158F) |
| Warranty | 1 Year |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Console port | RJ45 |
| Long-term operating temperature [C(F)] | -5C to +50C (23F to 122F) (0 m to 1800 m altitude, non-industrial optical modules), -5C to +55C (23F to 131F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Typical power consumption [W] | 28.7 W |
| Height [mm] | 43.6 mm |
| Flash memory | 512 MB |
| Power supply mode | AC built-in |
| MTBF [year] | 62.46 year |
| USB | Supported |
| Number of card slots | 0 |
| Availability | >0.99999 |
| RPS input | Not supported |
| Depth [mm] | 220.0mm |
| Typical heat dissipation [BTU/hour] | 97.93 BTU/hour |
| RTC | Not supported |
| Maximum power consumption [W] | Not providing the PoE function: 39.1 W, 100% PoE loads: 163.1 W (PoE: 124 W) |
| Brand | Huawei |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Memory | 512 MB |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Types of fans | Built-in |
| PoE | Supported |
| Products Status | New |
| Static power consumption [W] | 22.6 W |
| Eth Management port | Not supported |
| Weight with packaging [kg(lb)] | 3.17 kg (7 lb) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Noise at normal temperature (acoustic power) [dB(A)] | 42.2 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 30.5 dB(A) |
| MTTR [hour] | 2 hour |
| Redundant power supply | Not supported |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.) |
| PN | 98011291 |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Service port surge protection [kV] | Common mode: 7 kV |
| Maximum input current [A] | 3 A |
| Number of power slots | 0 |
| Power supply surge protection [kV] | 6 kV in differential mode, 6 kV in common mode |

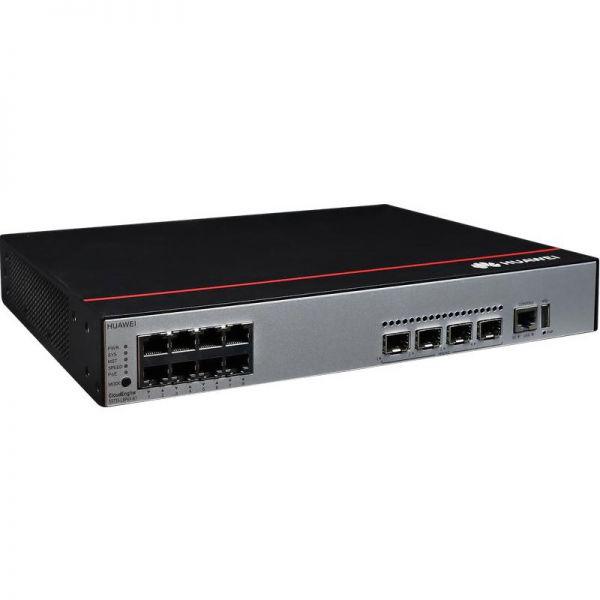

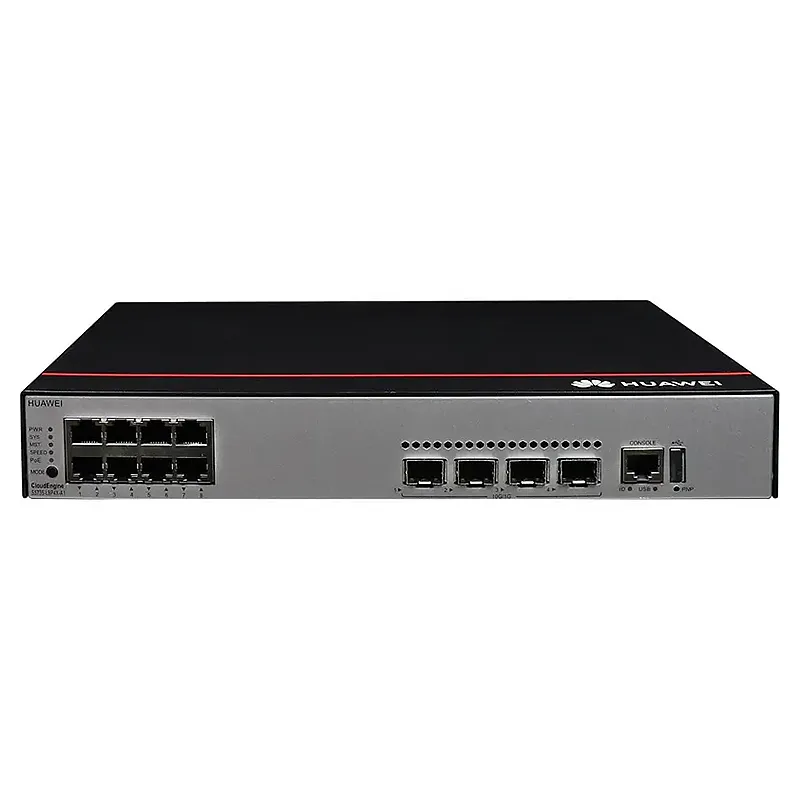

| Model | S5735-L8P4X-A1 |
| Weight without packaging [kg(lb)] | 2.25 kg (4.96 lb) |
| Number of fans modules | 1 |
| Chassis height [U] | 1 |
| Wide [mm] | 300.0mm |
