Additional information
| Airflow direction | – |
|---|---|
| Maximum heat dissipation [BTU/hour] | 112.60 BTU/hour |
| Heat dissipation mode | Natural heat dissipation |
| Storage temperature [C(F)] | -40C to +70C (-40F to +158F) |
| Warranty | 1 Year |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Console port | RJ45 |
| Long-term operating temperature [C(F)] | C5C to +45C (23F to 113F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Typical power consumption [W] | 29.8 W |
| Height [mm] | 43.6 mm |
| Flash memory | 512 MB |
| Power supply mode | AC built-in |
| MTBF [year] | 66.16 year |
| USB | Not supported |
| Number of card slots | 0 |
| Availability | >0.99999 |
| RPS input | Not supported |
| Depth [mm] | 220.0mm |
| Typical heat dissipation [BTU/hour] | 101.68 BTU/hour |
| RTC | Not supported |
| Maximum power consumption [W] | 33 W |
| Brand | Huawei |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Memory | 512 MB |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Types of fans | None |
| PoE | Not supported |
| Products Status | New |
| Static power consumption [W] | 17.4 W |
| Eth Management port | Not supported |
| Weight with packaging [kg(lb)] | 4.45 kg (9.81 lb) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| MTTR [hour] | 2 hour |
| Redundant power supply | Not supported |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| PN | 98011585 |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Service port surge protection [kV] | Common mode: 7 kV |
| Maximum input current [A] | 2 A |
| Number of power slots | 0 |
| Power supply surge protection [kV] | 6 kV in differential mode, 6 kV in common mode |

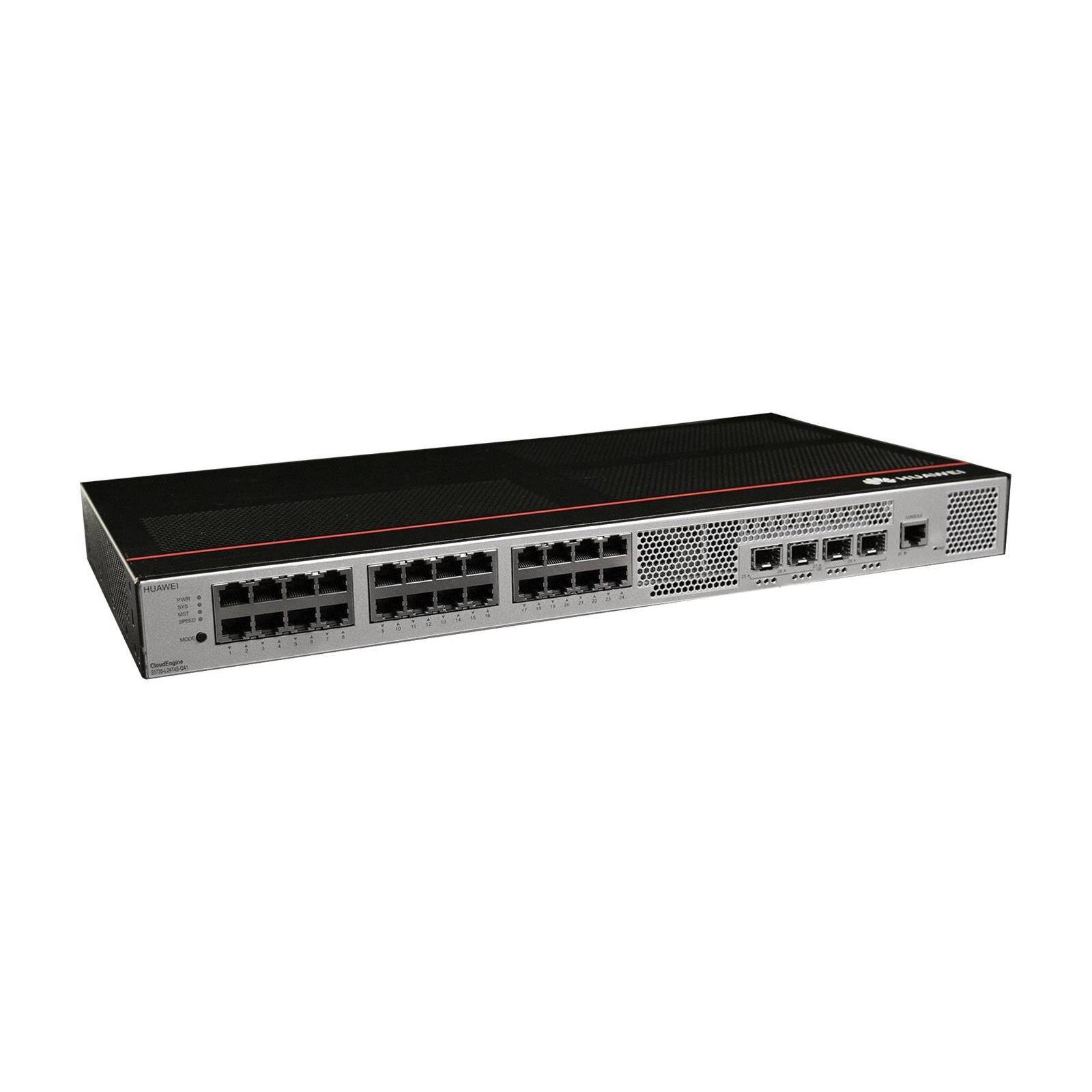

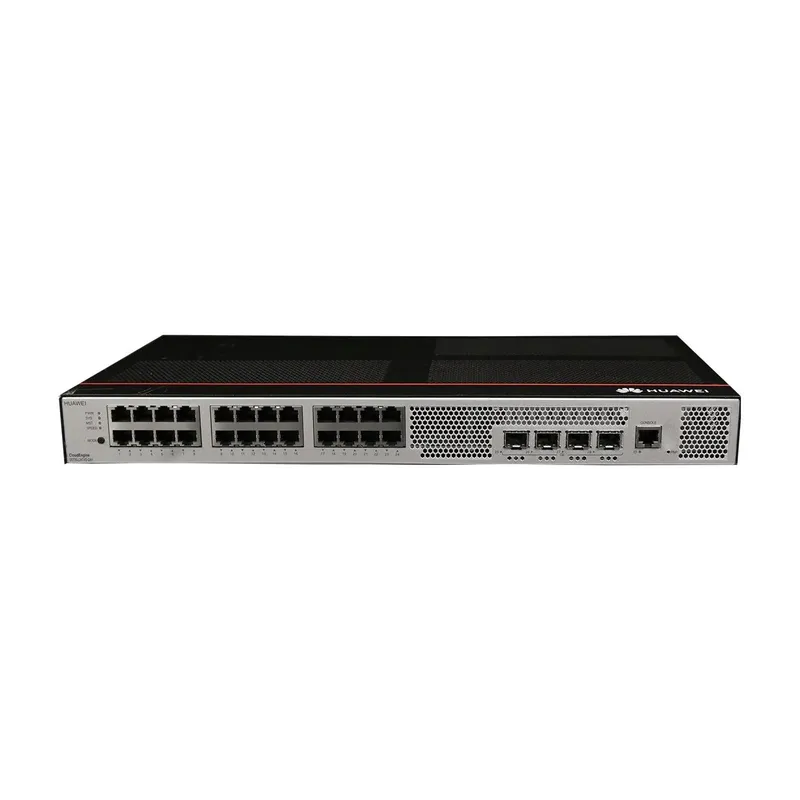

| Model | S5735-L24T4S-QA1 |
| Weight without packaging [kg(lb)] | 3.69 kg (8.14 lb) |
| Number of fans modules | 0 |
| Chassis height [U] | 1 |
| Wide [mm] | 442.0mm |
