| PN | 98012026 |
|---|---|
| Model | S5735-L24P4XE-A-V2 |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging | 3.81 (8.4) |
| Weight without packaging | 2.94 (6.48) |
| Maximum power consumption [W] | – Without PoE: 55.40 W/- Full PoE load: 496.08 W (PoE: 400 W) |
| Typical power consumption [W] | 39.84 |
| Maximum heat dissipation [BTU/h] | – Without PoE: 189.03/- Full PoE load: 1692.67 |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Typical heat dissipation [BTU/h] | 135.94 |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90?C290 V AC; 45?C65 Hz |
| Rated input voltage [V] | AC input: 100?C240 V AC; 50/60 Hz |
| Maximum input current [A] | 6 A |
| Number of power slots | 0 |
| Number of card slots | 0 |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Redundant power supply | Not supported |
| Types of fans | Built-in |
| Noise at normal temperature (acoustic pressure) | 37.3 |
| Noise at normal temperature (acoustic power) | 49.3 |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| Long-term operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Storage temperature | ?C40??C to +70??C (?C40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude | 0?C5000 m (0?C16404 ft.) |
| MTBF [year] | 59.13 |
| MTTR [h] | 2 |
| Availability | >0.99999 |
| Maximum number of physical ports on the entire device | 30 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 4 |
| Maximum number of GE ports | 28 |
| Maximum number of FE ports | 24 |
| 10GE optical interface | 4 |
| 1000M electrical interface | 24 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | Not supported |
| Service port surge protection | Common mode: ??7 kV |
| Power supply surge protection | Differential mode: ??6 kV; common mode: ??6 kV |
| RPS input | Not supported |
| PoE | Supported |
| PoE power supply | Supported |

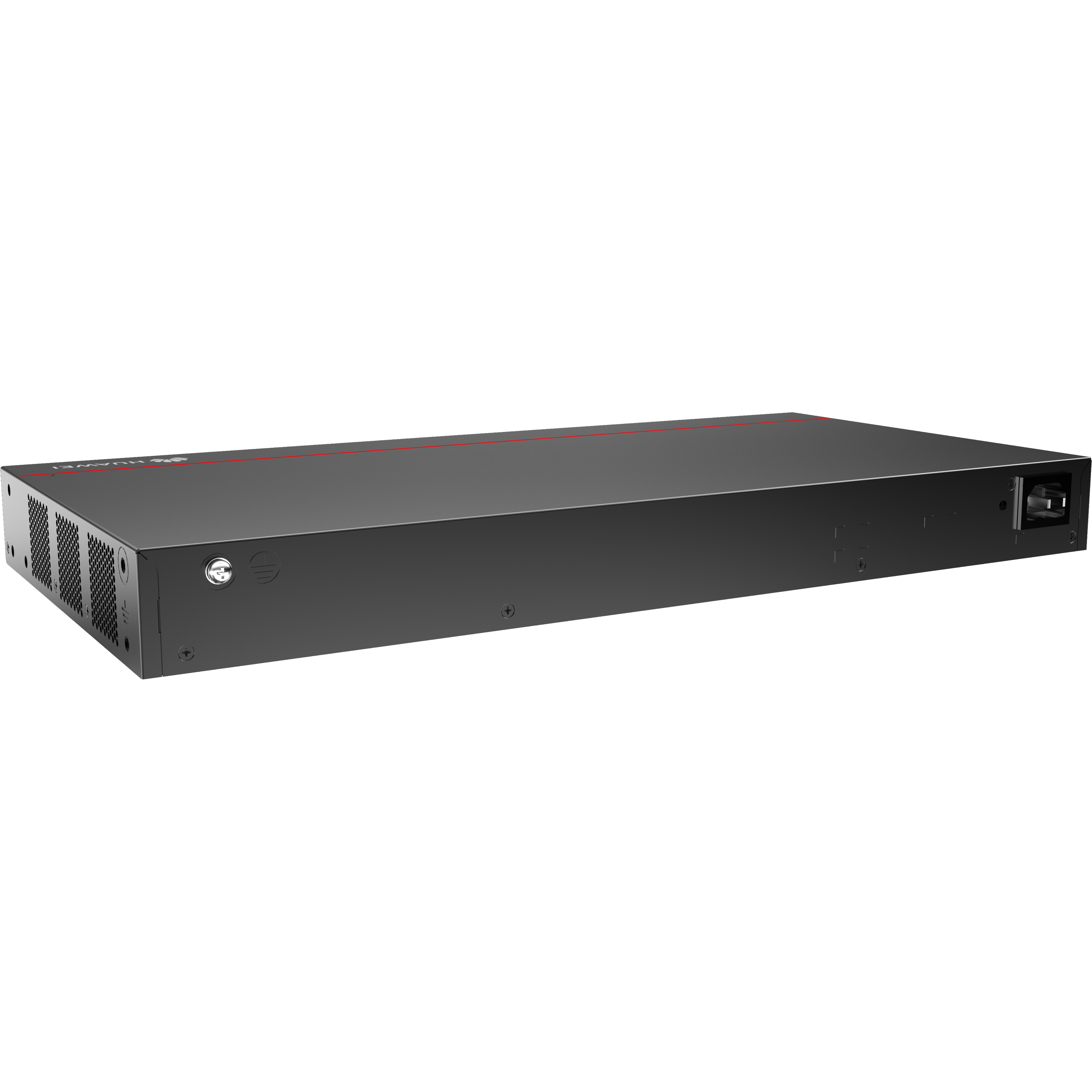

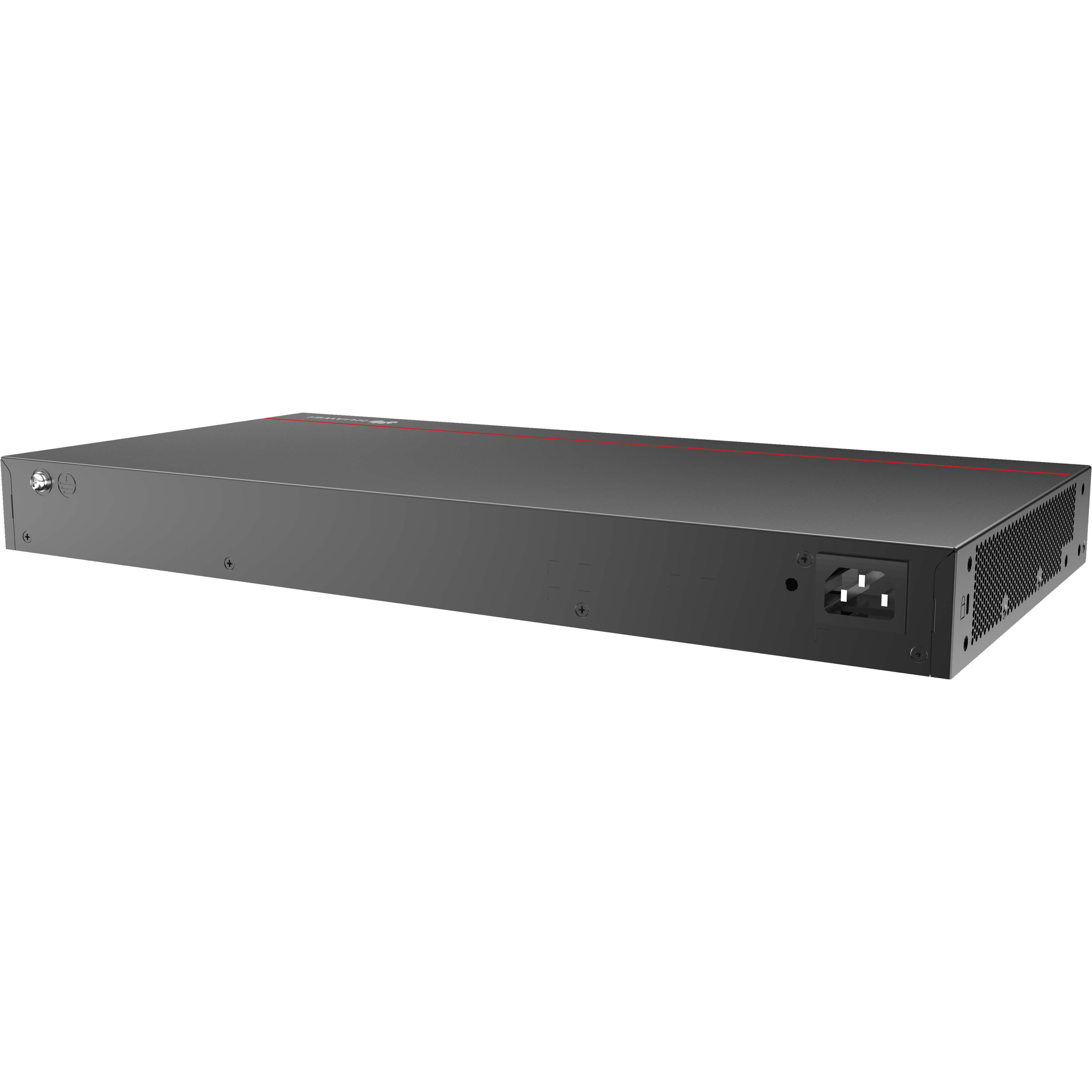

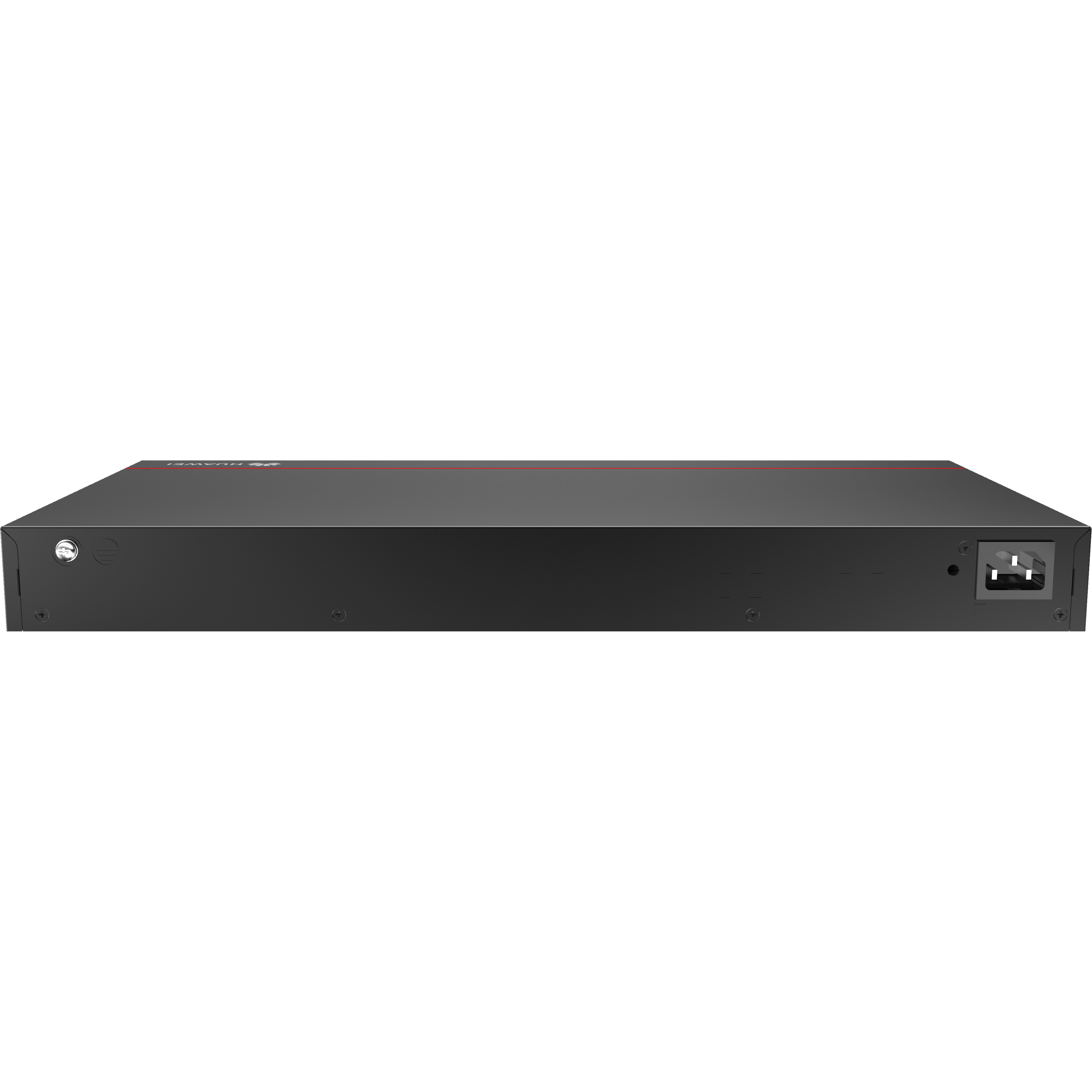

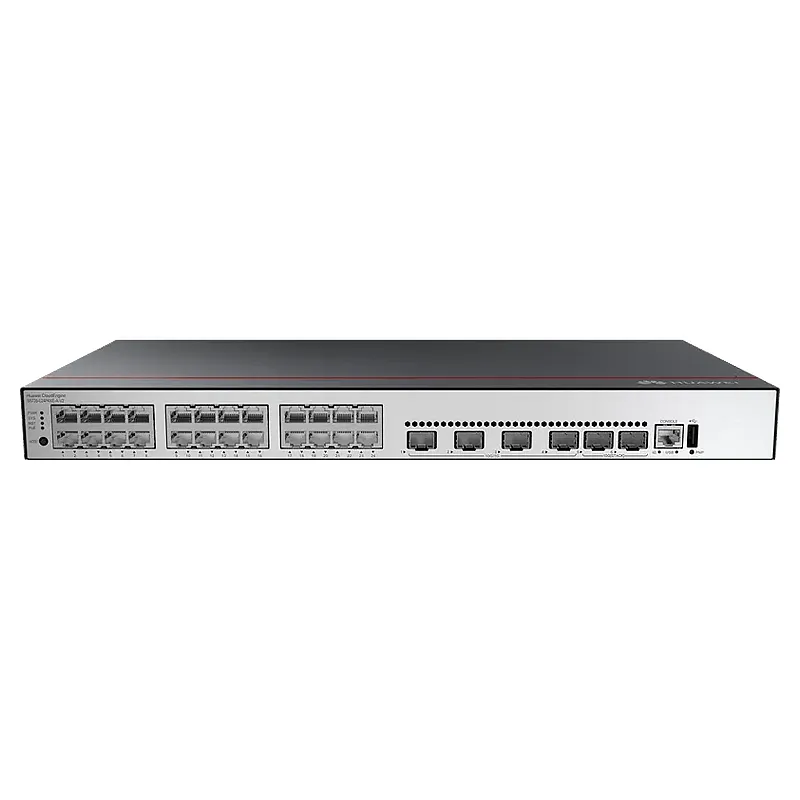

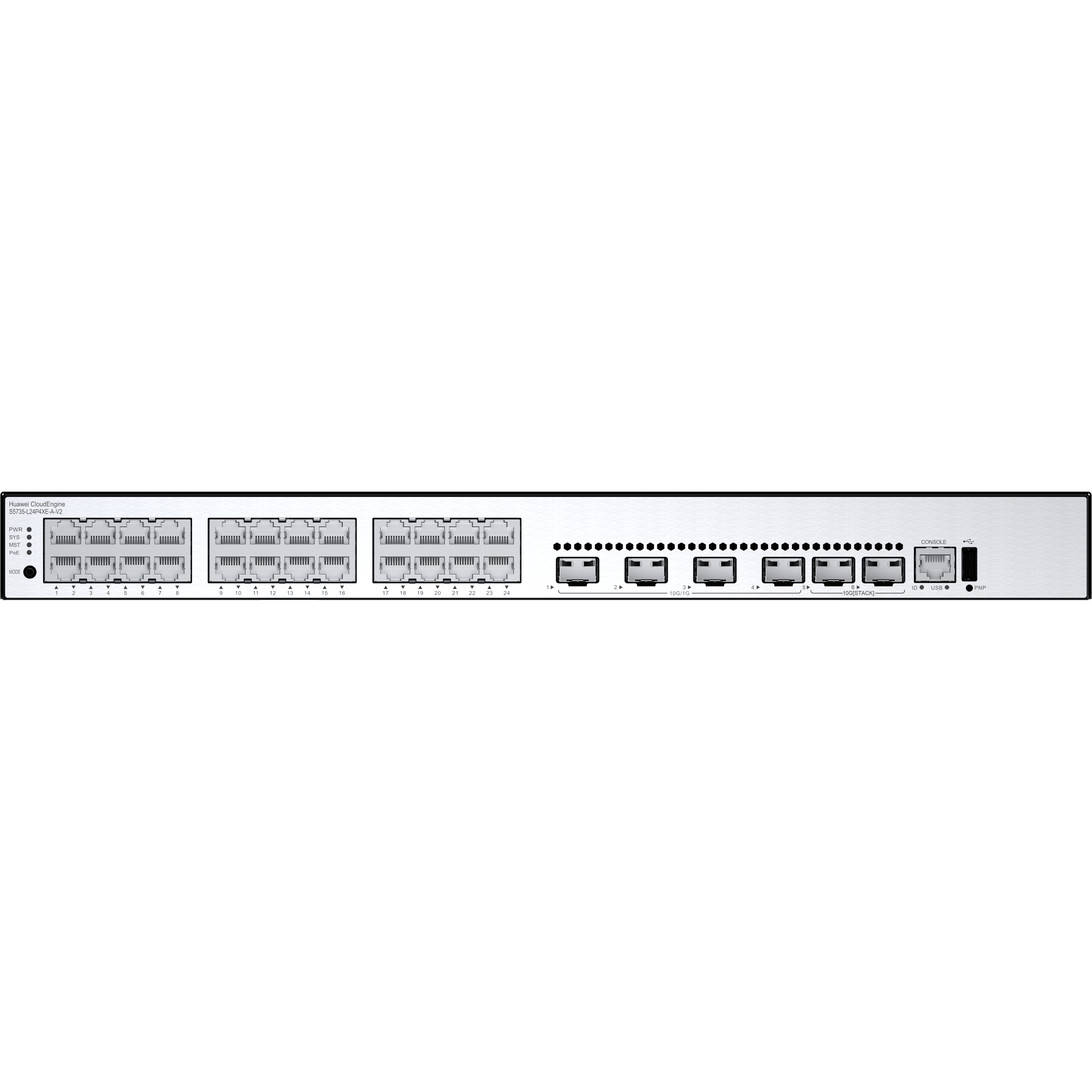

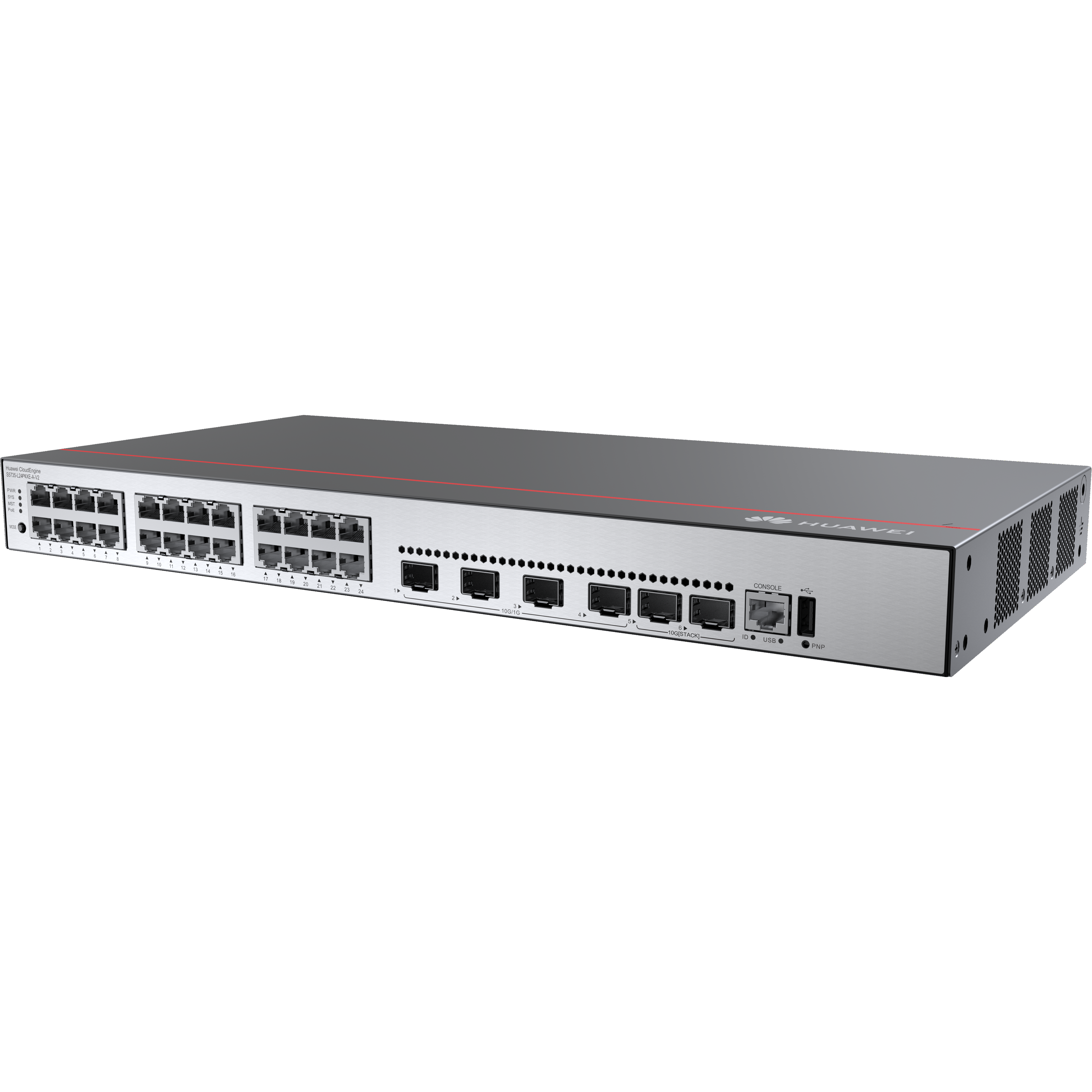

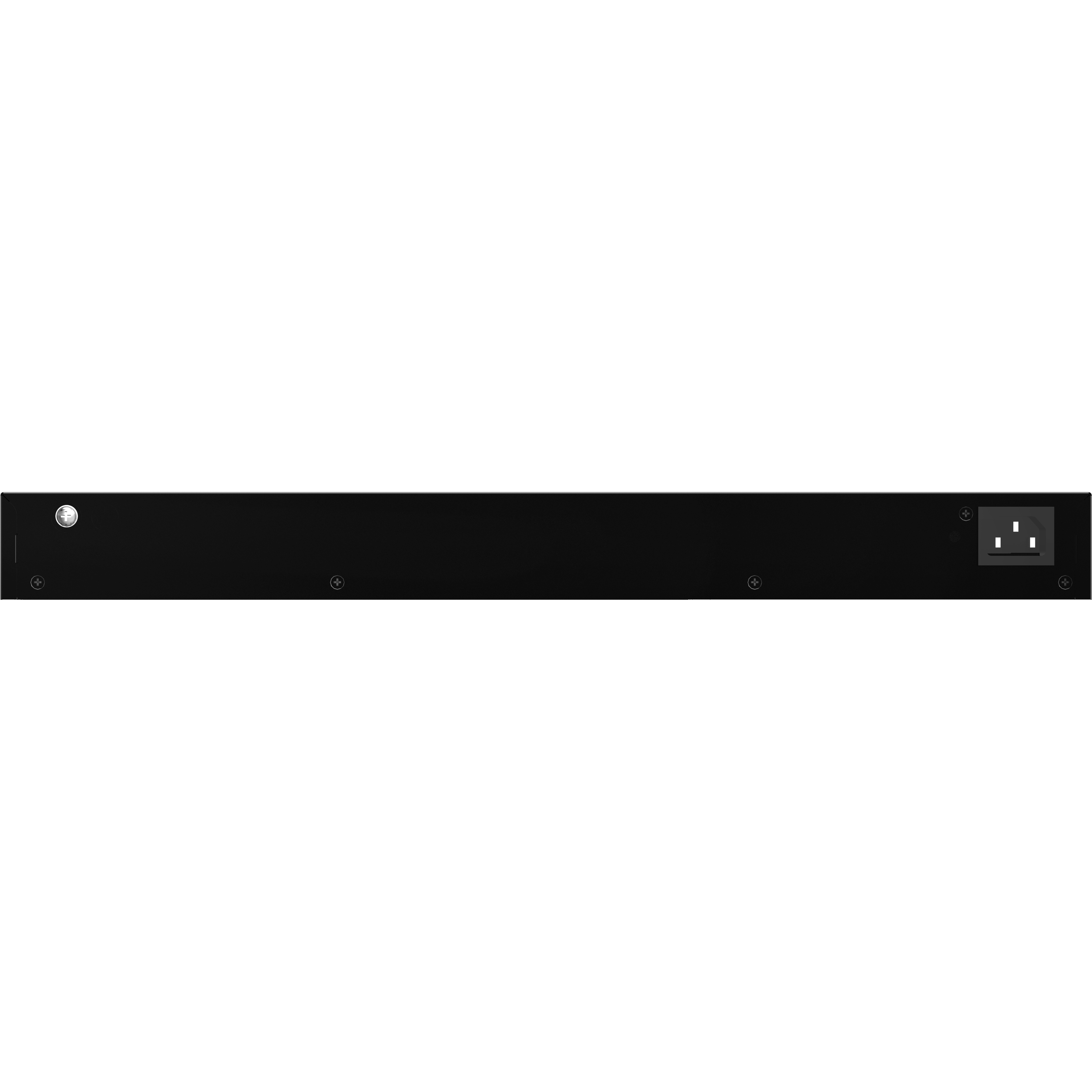

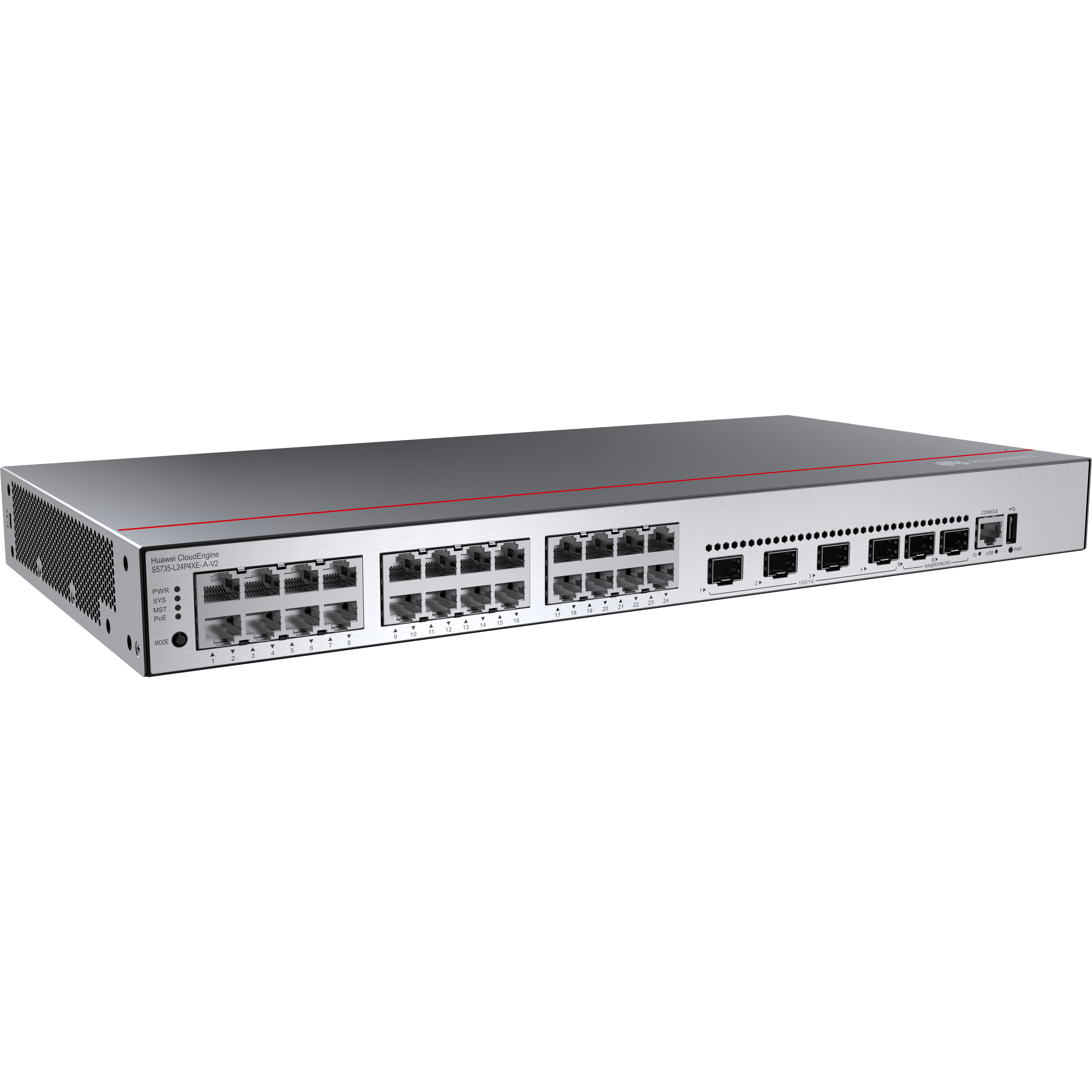

Huawei S5735-L24P4XE-A-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, AC power)
